Replacement ATH-Heinl: Comfort X wire rope, HL2 450
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-LINA-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

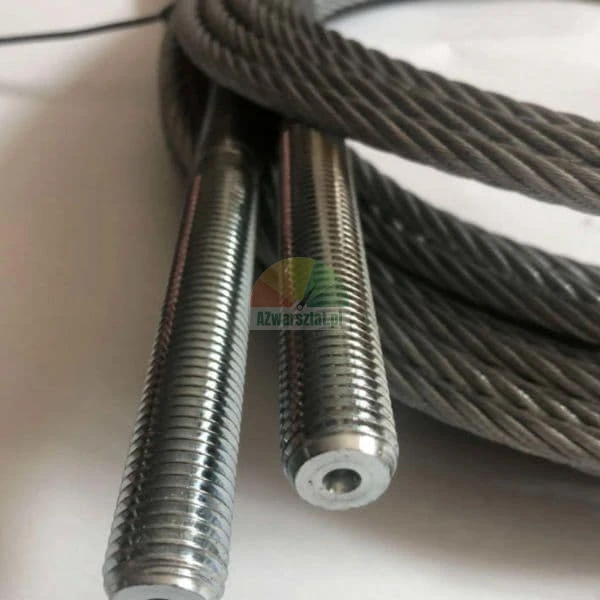

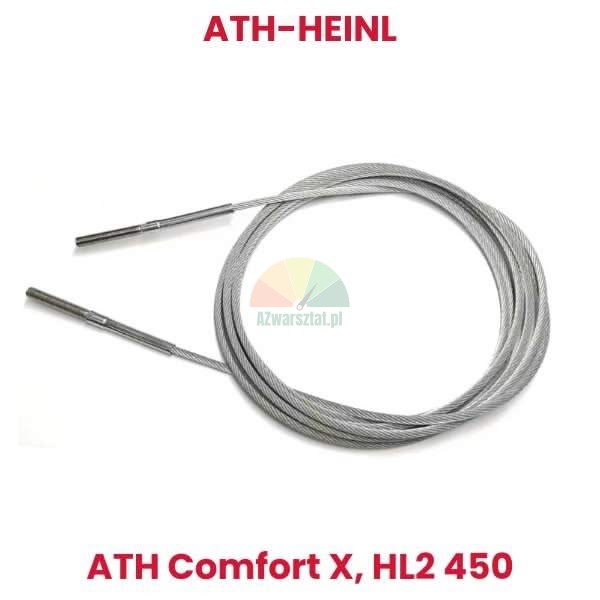

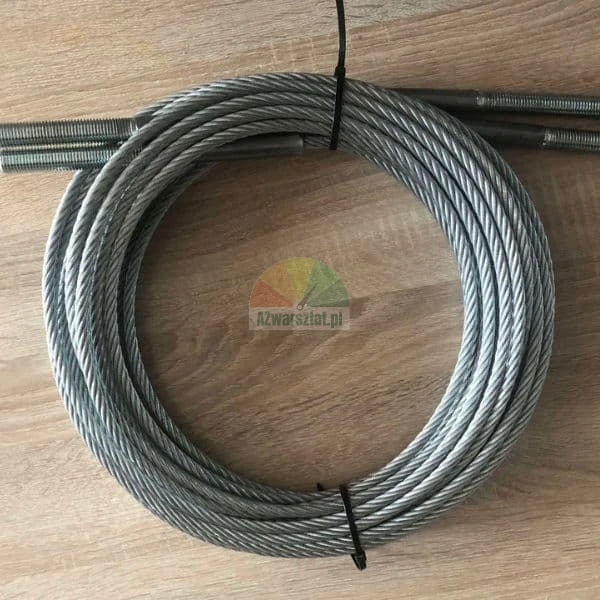

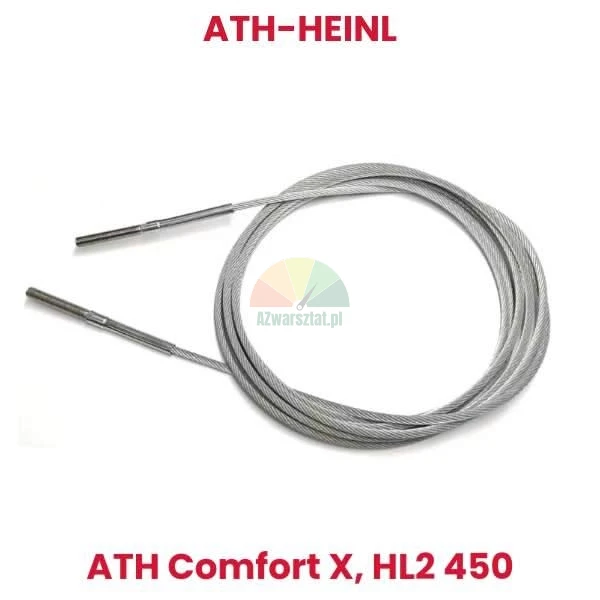

Synchronisation Cable (Comfort X, HL2 450) – Replacement
Precisely manufactured synchronisation cable dedicated to the Comfort X and HL2 450 vehicle lifts, this product is a high-quality replacement that ensures reliable operation.
Product description:

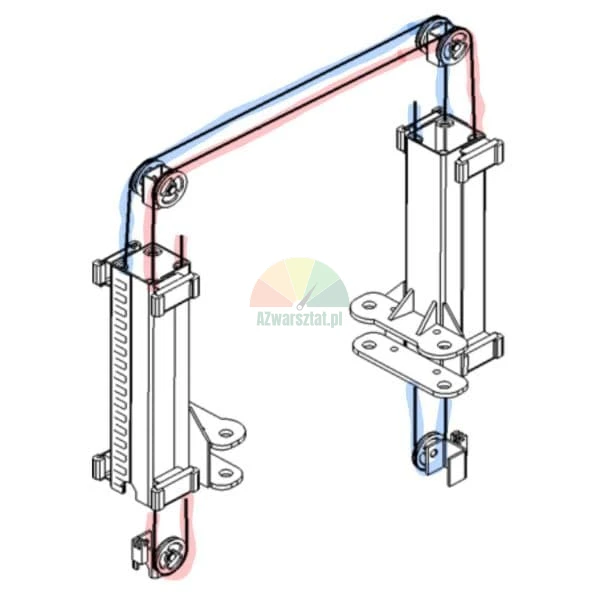

The synchronisation cable connects the lift mechanisms, ensuring that the lifting carriages are raised and lowered evenly. It is an essential component for the proper functioning of the vehicle lift, especially in heavily used workshops. Replacement of the synchronisation cable is essential to ensure the safety and efficiency of the vehicle lift.
Important information: The product is certified and meets all the requirements of the Machinery Directive 2006/42/EC and the harmonised standard EN ISO 12100, and is supplied with an EU Declaration of Conformity. This ensures that a vehicle lift fitted with new cables readily passes a regular inspection of the lifting equipment carried out by a competent person, in accordance with applicable regulations and EN ISO 9927-1.

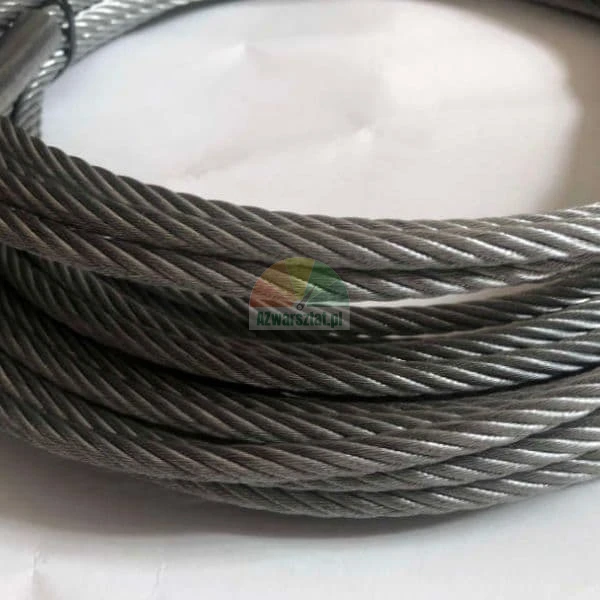

The product is made of high-quality, high-strength steel, guaranteeing durability and reliability. Ideal for both professional workshops and home users.
Product specifications:
- Compatibility: Comfort X, HL2 450
- Material: High-strength steel
- Application: Synchronisation of lifting carriages
- Product code: P-LINA-0003
Synchronisation cable advantages:
- High tensile and wear resistance.
- Precise fit for Comfort X and HL2 450 vehicle lifts.
- Easy installation thanks to standard terminations.
Purchasing this synchronisation cable gives you the confidence that your equipment will operate smoothly and efficiently. The ideal product for workshops that value the durability and precision of their equipment. Don't wait, order today!
Dimensions and technical details:

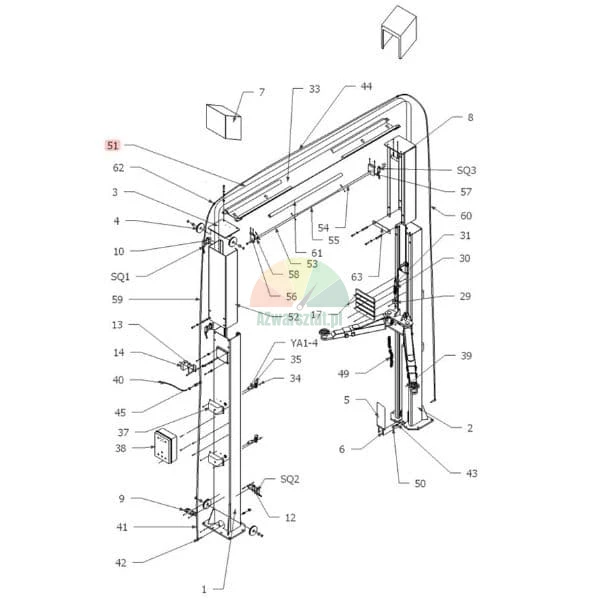

The attached diagram (item no. 51) shows the exact location of the cable within the lift structure. This makes installation extremely intuitive and quick.
Availability:
Large quantity in stock. Contact us for more information or to place an order.
Product safety
Certificates and safety warnings
- Certificate of Steel Cables for Car Lift, Community Directives 2006/42/WE, Harmonized standards and other technical specifications: PN-EN-ISO 12100-1-2012
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
ATH-Heinl replacement: Complete vertical/horizontal actuator (mushroom) M52, M72, M72Z
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
