ATH-Heinl replacement: Complete vertical/horizontal actuator (mushroom) M52, M72, M72Z

High-quality replacement vertical/horizontal actu ator of the "mushroom" type for ATH-Heinl wheel assembly machines: M52, M72, M72Z. The ideal choice for garages and tyre repair shops that expect reliability and durability.

Ready-to-assemble product - no modifications required. Ensures precise and smooth operation of the lifting mechanism and sliding of the mounting arm.

Technical specifications:

Type: vertical/horizontal actuator (complete, so-called mushroom).
Compatibility: ATH-Heinl M52, M72, M72Z
Dome material: Aluminium
Base: Plastic with threaded connection
Mounting: 2 mounting screws
Overall height: approx. 70 mm
Outer diameter of dome: approx. 75 mm
Air connection thread: standard (brass)

Actuator made of durable materials resistant to mechanical damage and workshop conditions. Guarantees long service life and trouble-free operation, even under intensive use.

Application:

Used in wheel assemblers, responsible for lifting and moving the assembly arm. Indispensable in the tyre mounting and dismounting process, ensuring safety and precision.

Why choose this replacement?

Fully compatible with ATH-Heinl models: M52, M72, M72Z
High-quality workmanship: aluminium and durable plastic
Easy and quick installation: no modifications required
Proven by professionals: recommended by service technicians
Excellent price/performance ratio

Proven replacement - recommended as a reliable alternative to original ATH-Heinl parts. Available immediately from our online shop.

Please note: Before purchasing, make sure that your assembly model is an M52, M72 or M72Z. If in doubt - contact us, we will be happy to advise you!

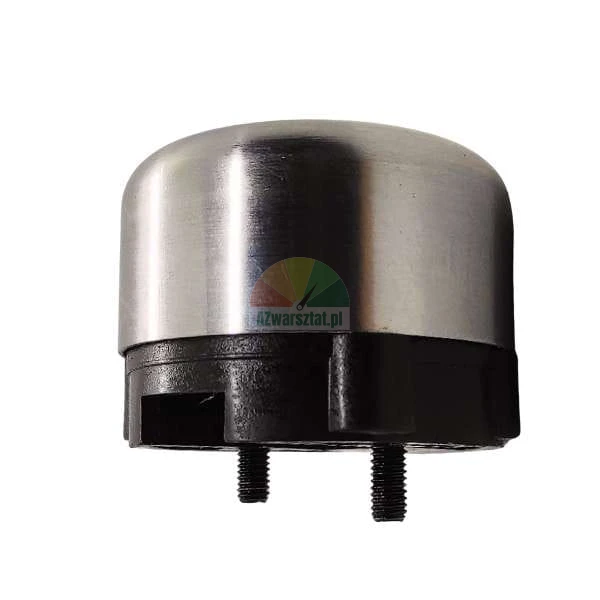

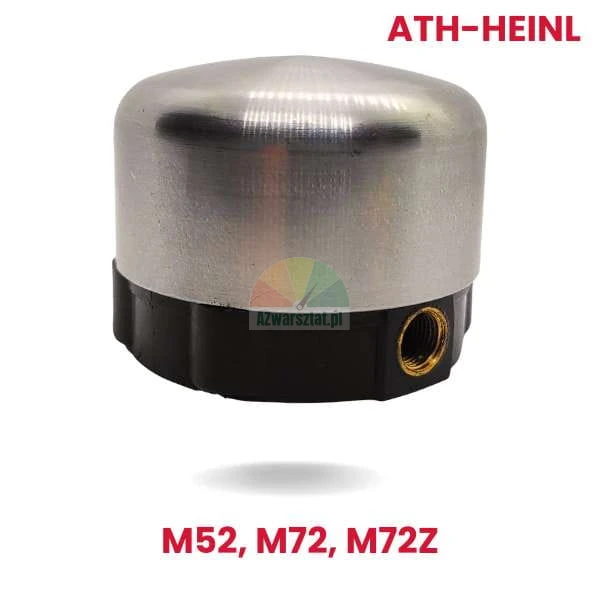

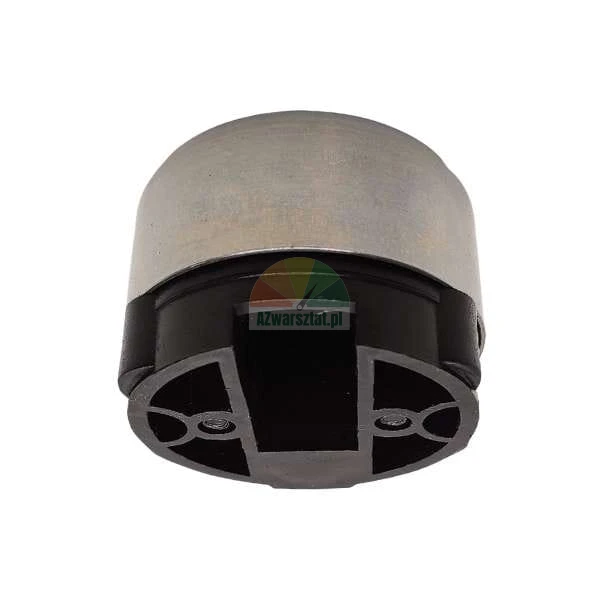

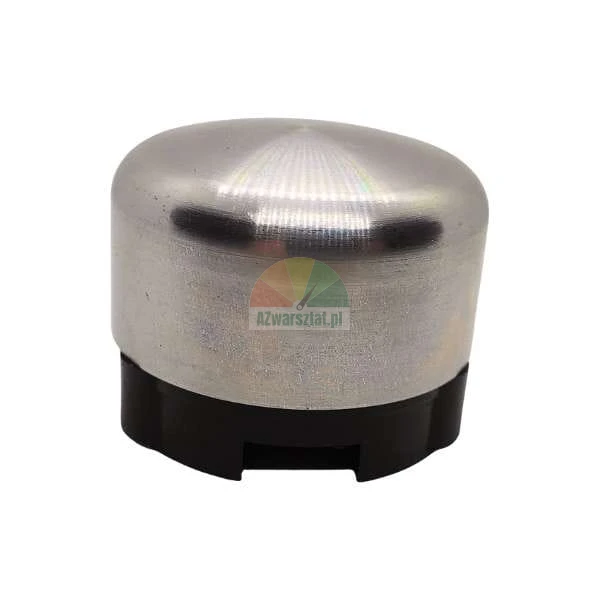

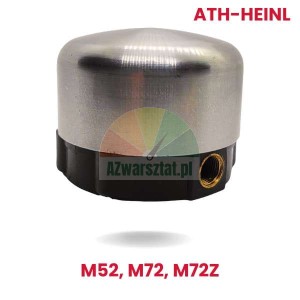

Product photo:

Siłownik wertykalny/horyzontalny ATH-Heinl M52 M72 M72Z

Pictured: complete mushroom-type actuator for ATH-Heinl assemblers. Overall height: approx. 70 mm, dome diameter: approx. 75 mm.
