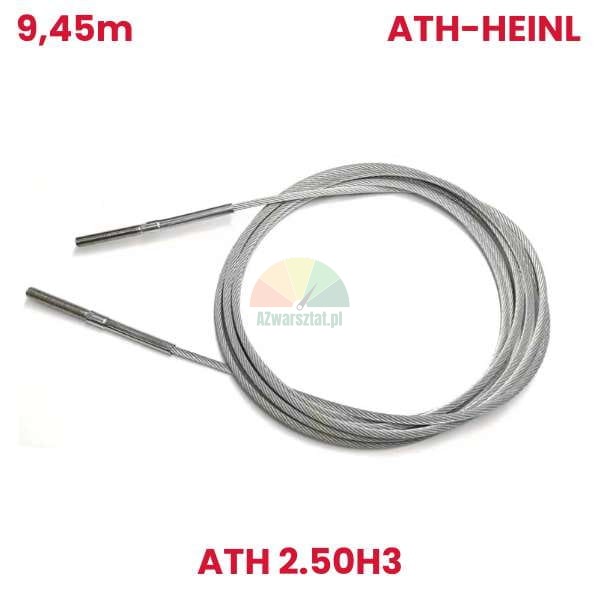

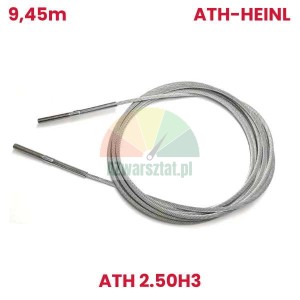

Replacement ATH-Heinl: synchronisation cable 9.45m (2.50 Comfort / H3)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-LINA-0005
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

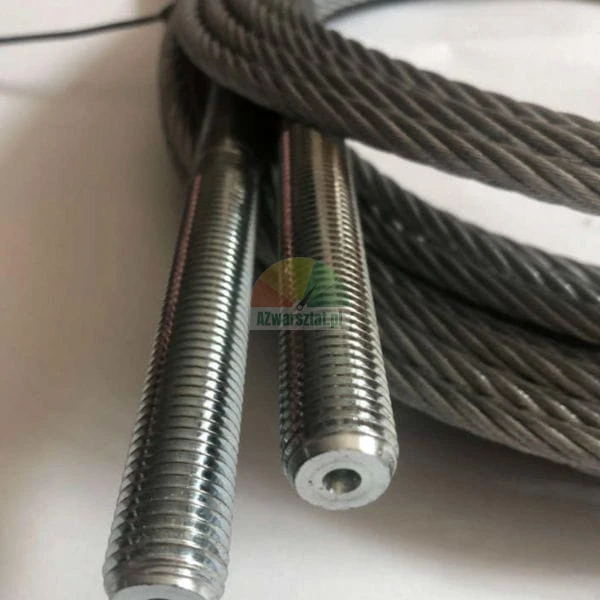

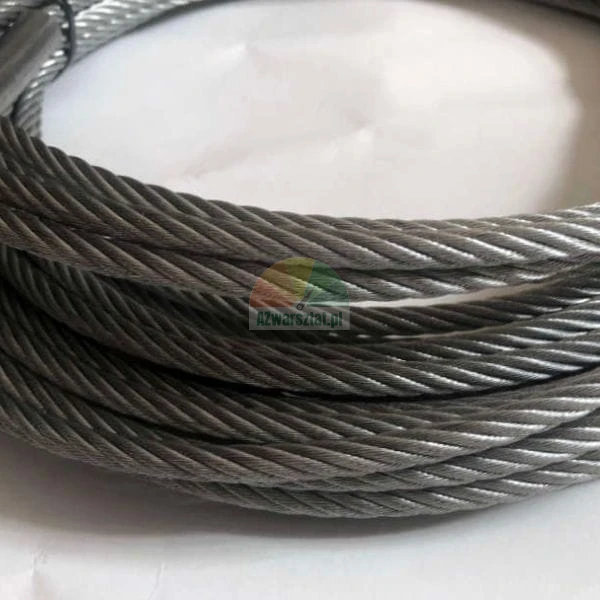

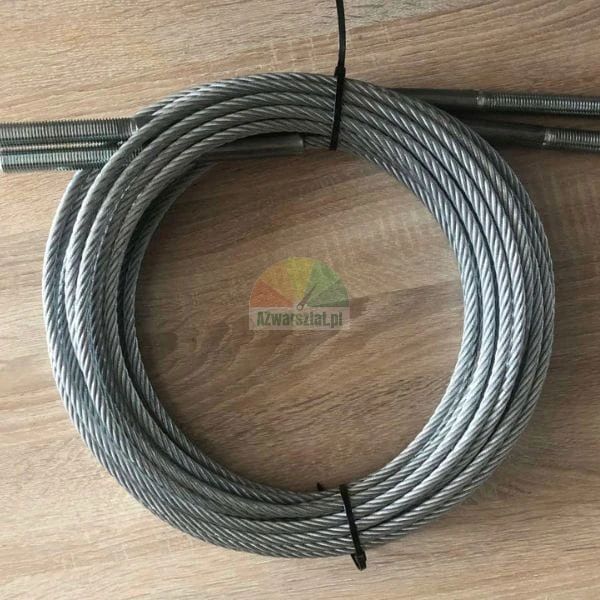

Ø10 x 9,450 mm Synchronisation Cable (2.50 Comfort / H3)
A precision-made synchronisation cable with a diameter of 10 mm and a length of 9,450 mm, intended for the 2.50 Comfort and H3 series of vehicle lifts. The product has been designed for maximum durability and reliability during daily use.
Technical specifications:
- Diameter: Ø10 mm
- Length: 9,450 mm
- Compatibility: Vehicle lifts 2.50 Comfort / H3 (ATH 2.50H3)
- Material: High-quality steel, tensile- and abrasion-resistant
The synchronisation cable is a key component ensuring that both lift columns are raised evenly, guaranteeing safety and stability during operation. Made from high-quality materials, it provides a long service life and reliable operation.
Application:

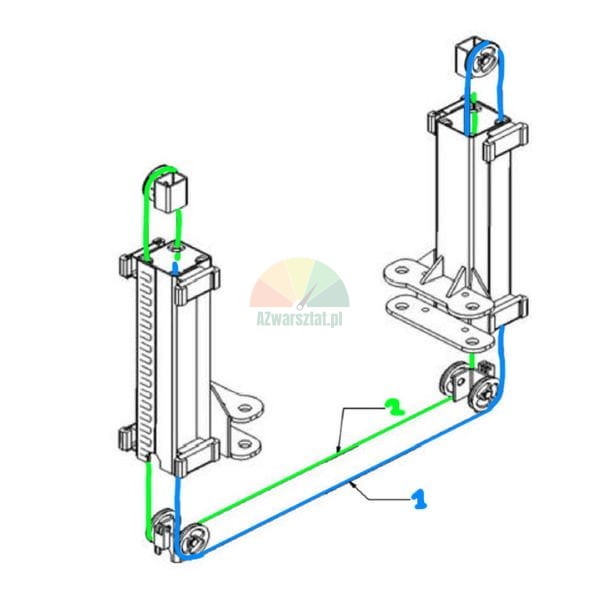

The synchronisation cable is used in two-post lifts, where it ensures the simultaneous operation of both columns. This makes it possible to lift vehicles of different weights and sizes accurately and safely. The use of synchronisation cables improves the overall efficiency and trouble-free operation of the equipment.
This product is ideal for workshops that value reliability and precision in their equipment. Please do not hesitate to contact us if you have any questions or need additional information about this product.
Why choose this product?
- High-quality workmanship for a long service life.
- Compatible with popular vehicle lift models.
- Easy installation and fitting thanks to precise dimensions.
Choose the Ø10 x 9,450 mm synchronisation cable and ensure that your vehicle lift will operate reliably for many years!
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
ATH-Heinl replacement: motor adapter (coupling) H2, H3, Flex Lift, Comfort Lift
ATH-Heinl replacement: gear pump 2.1 DSH3000, SH5000HA, Cross Lift, Frame Lift, H1, H3, Comfort Lift
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
