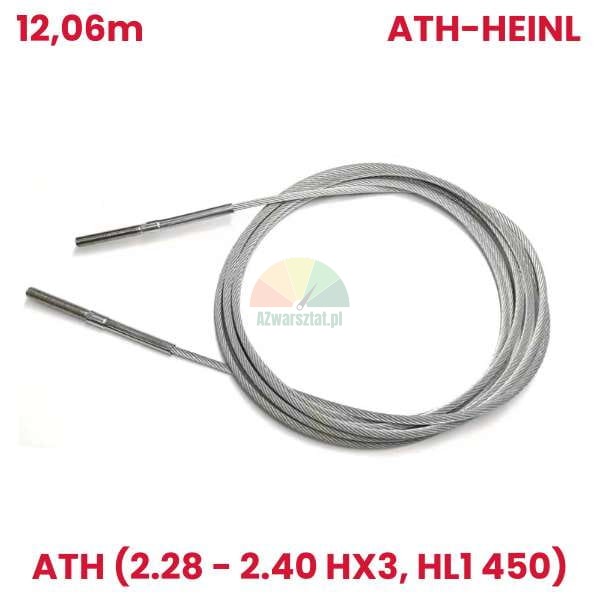

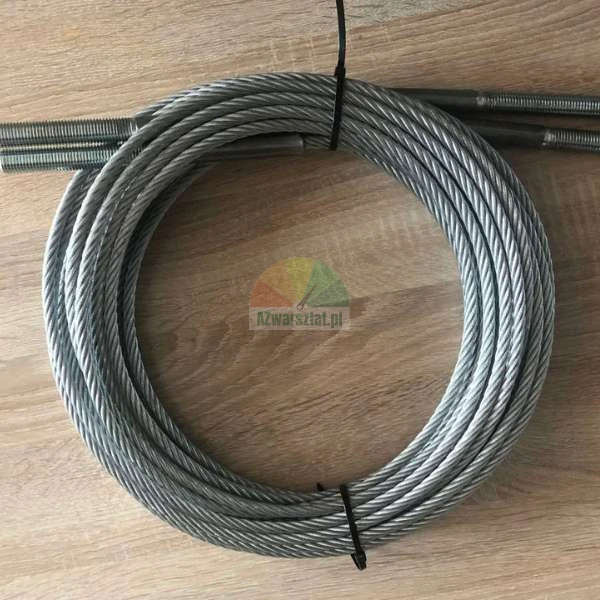

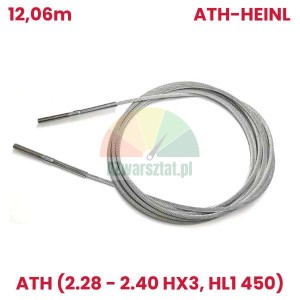

Replacement ATH-Heinl wire rope - 12.06 m (HX3, HL1 450)

The wire rope is a key component in ATH-Heinl vehicle lifts, responsible for synchronising the operation of the columns and lifting the vehicle safely. The 12.06 metre long replacement offered is fully compatible with models:

ATH 2.28 HL3
ATH 2.32 HL3
ATH 2.40 HL3
ATH HL1 450

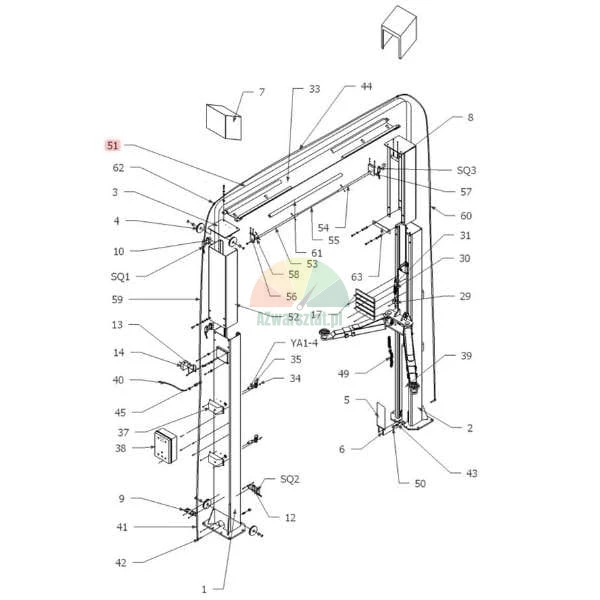

The rope is suitable for two-column lifts with top linking of the columns (according to item no. 51 in the technical diagram). Its precise manufacture guarantees reliable operation and safety.

Application

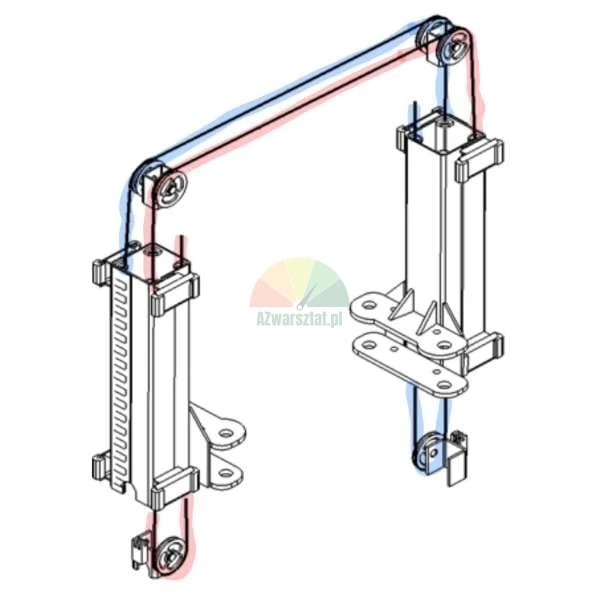

The product is designed for ATH-Heinl twin -column lifts with top-rope guidance. It is responsible for the even lifting of the arms and synchronisation of the lifting carriages. Ideal for garages and individual users who want to restore the efficiency of the equipment quickly and effectively.

Key features:

High tensile strength - ensures long service life and resistance to damage.
Abrasion and corrosion resistance - ideal for heavy use in a workshop environment.

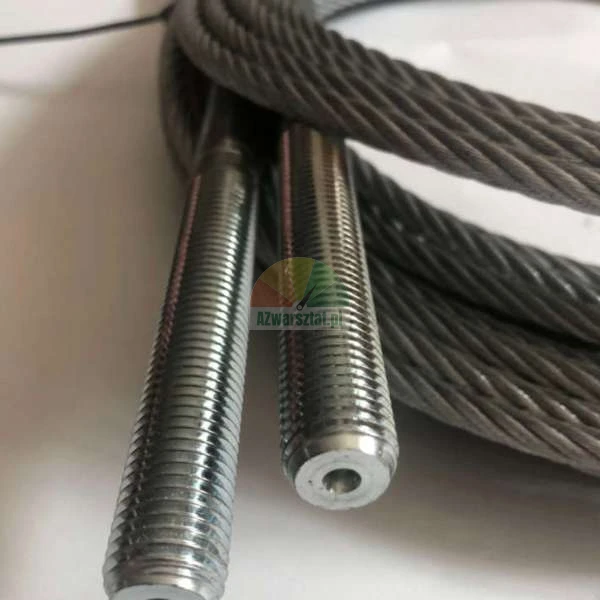

Precision terminations - enables fast and trouble-free installation.
Overall length: 12,06 m - in accordance with the technical requirements of the HL3 and HL1 450 models.
Easy installation - can be done by yourself, without specialised tools.

By choosing our wire rope replacement, you are investing in safety, reliability and economy. The perfect alternative to original parts - without compromising on quality.

Compatibility

The wire rope is compatible with the HL3 series of jacks. It is recommended to consult the manufacturer's technical diagram before installation.

Delivery information

Delivery made within 24-48 hours after ordering. Price does not include possible payment costs.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
