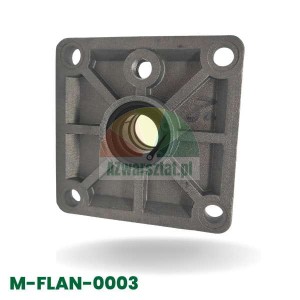

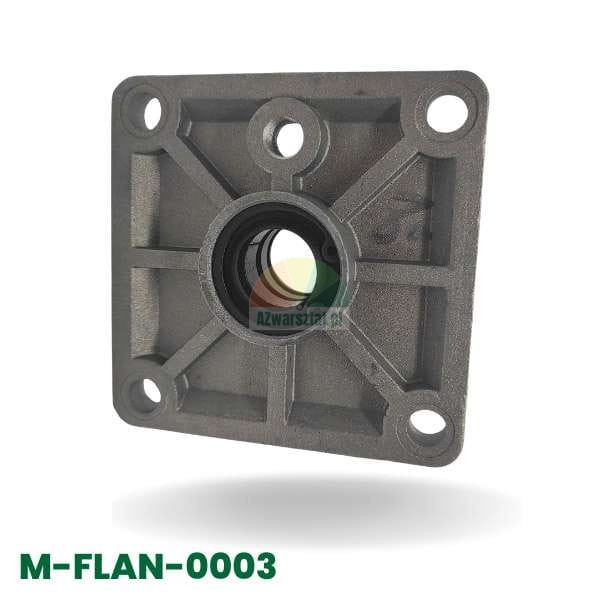

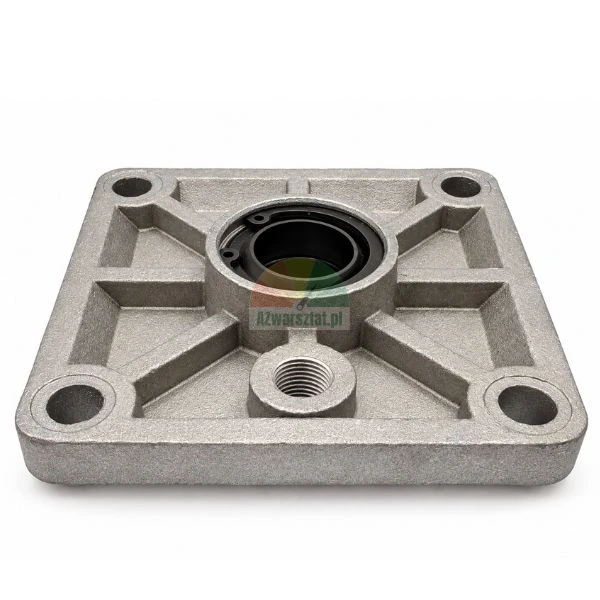

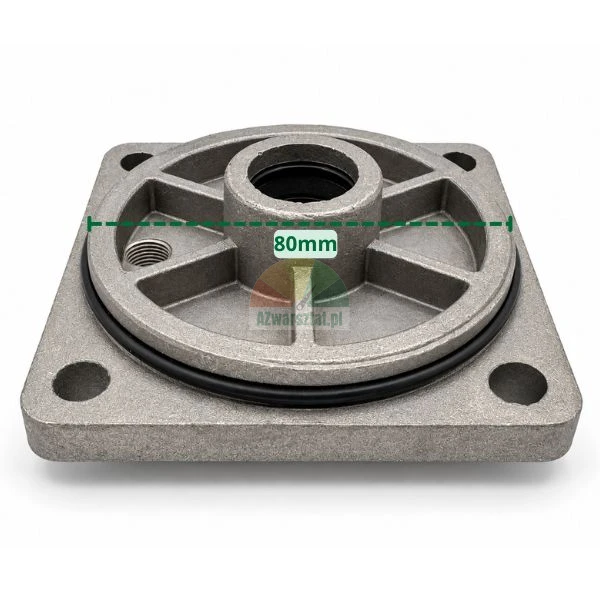

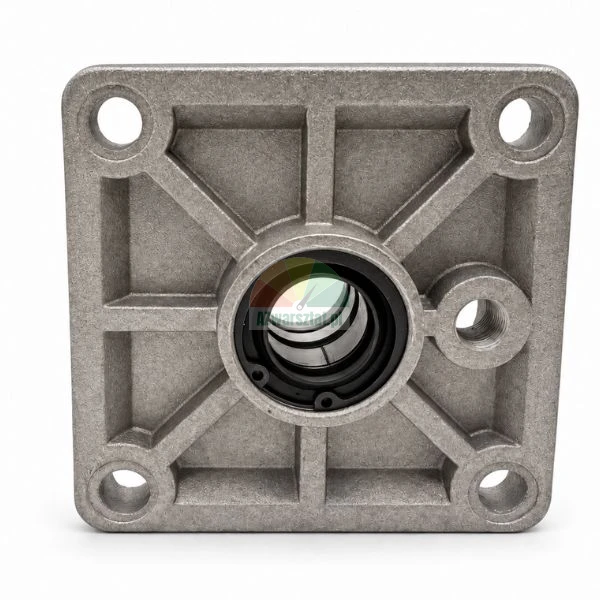

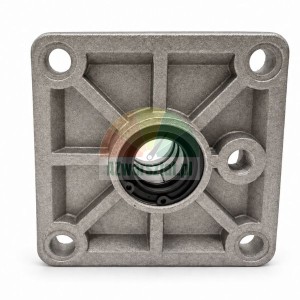

9x9cm clamping/tilting cylinder cover with piston rod bore
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-FLAN-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

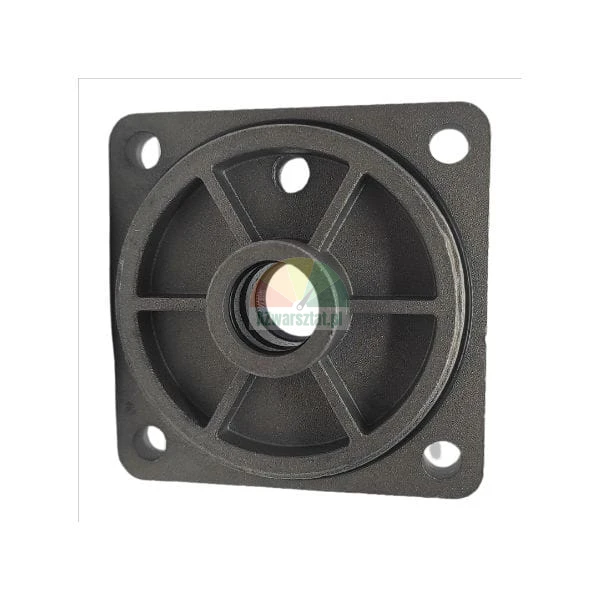

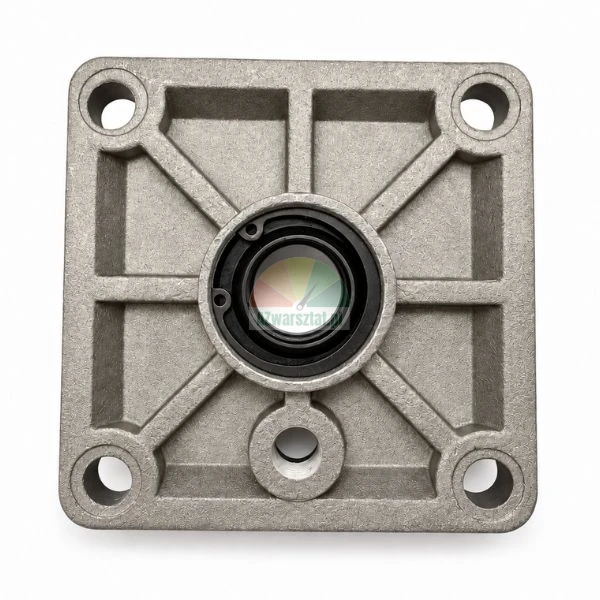

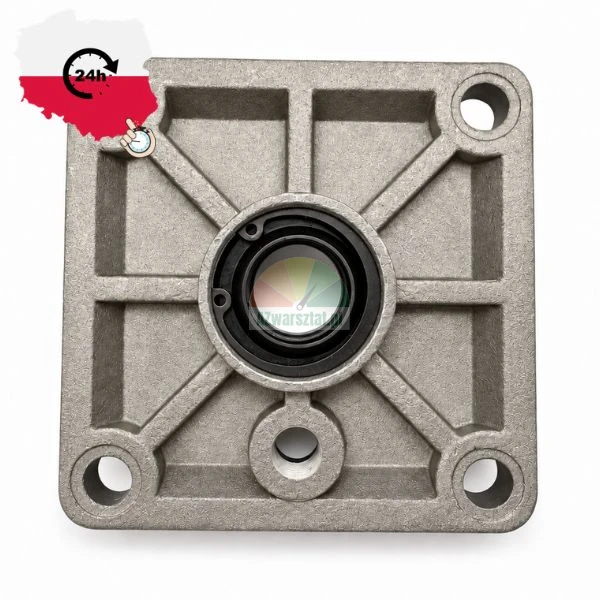

Mounting flange with bearing
Robust and precisely manufactured mounting flange with integral bearing, ideal for a variety of industrial and construction applications.

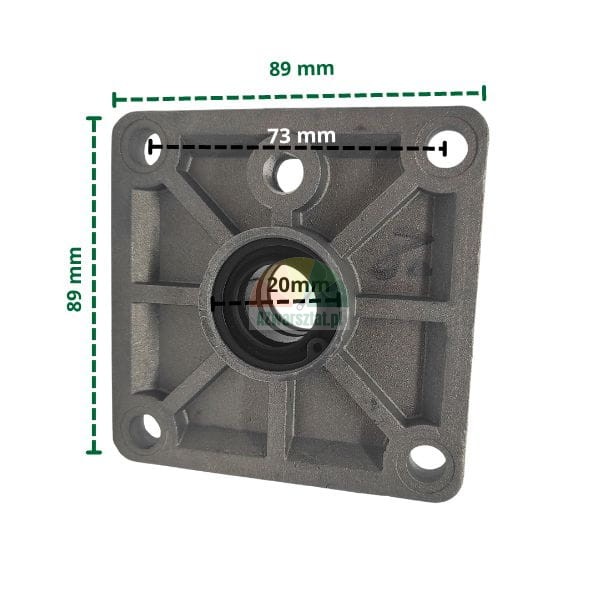

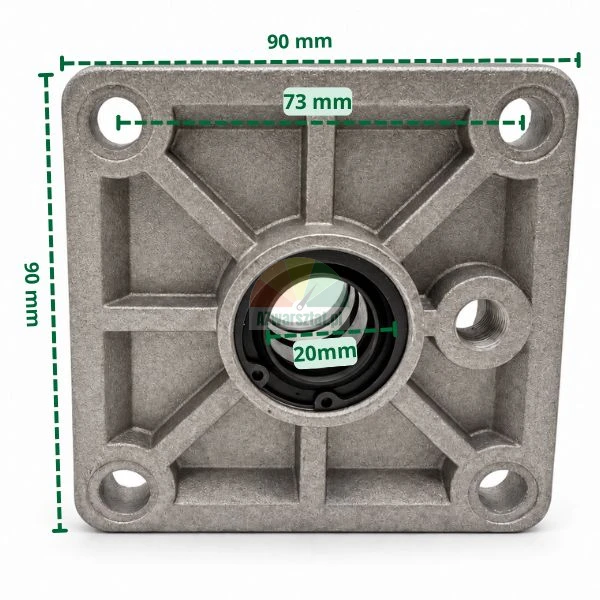

Dimensions:
- Width/Height: 90 mm
- Mounting hole spacing: approximately 73 mm
- Bearing bore diameter: 20 mm
Product features:
- Made of durable material
- Built-in bearing ensures smooth rotation
- Mounting holes allow easy installation
- Versatile application
Application:
This flange can be used in many applications such as:
- Industrial machinery
- Transport equipment
- Support structures
- Other projects requiring a stable and movable connection
Note: Before purchasing, please ensure that the flange dimensions are suitable for your project.
