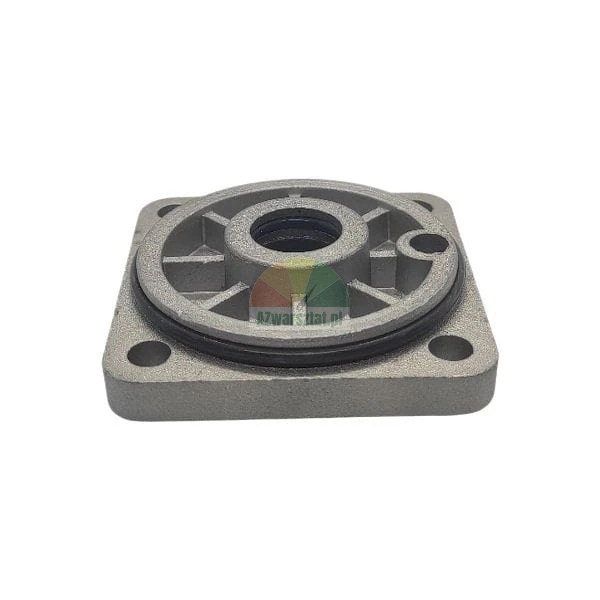

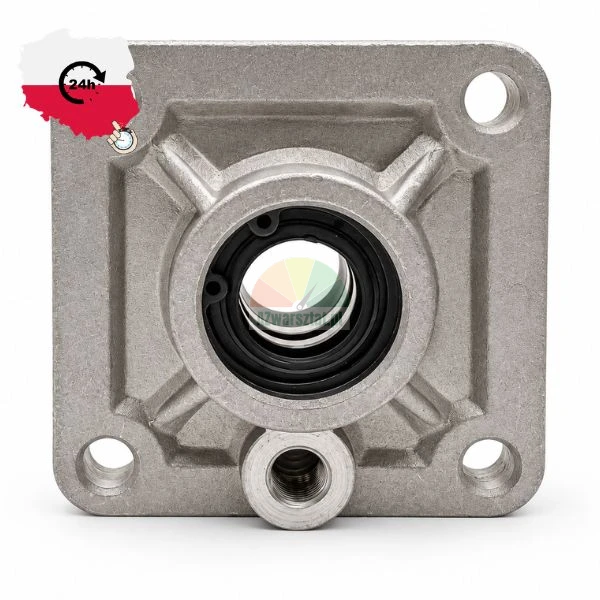

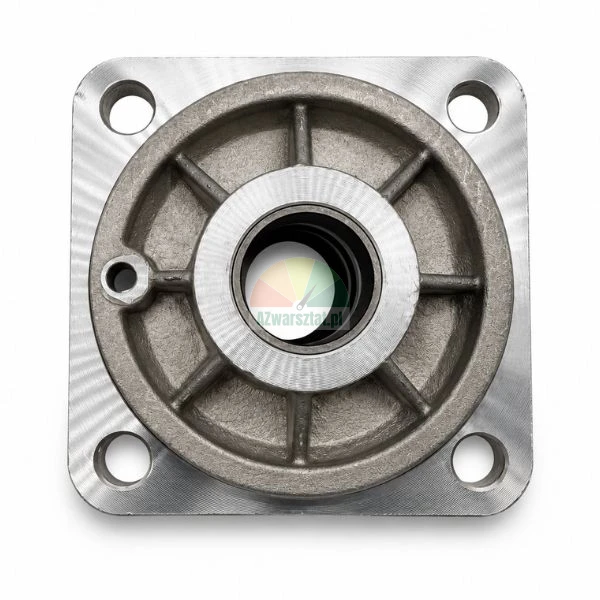

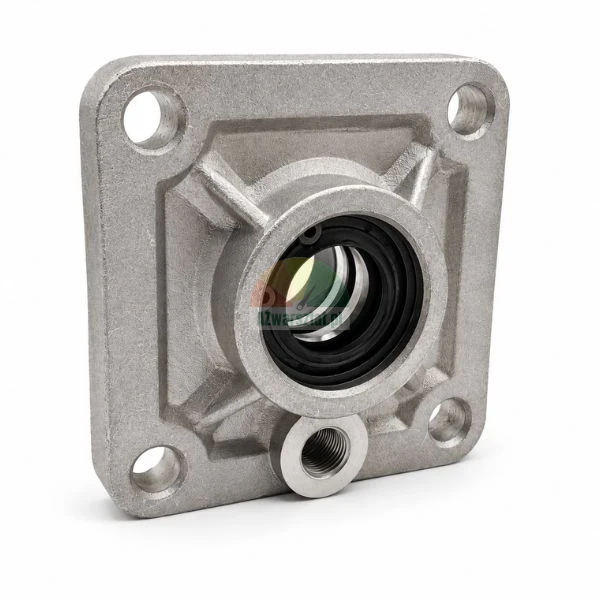

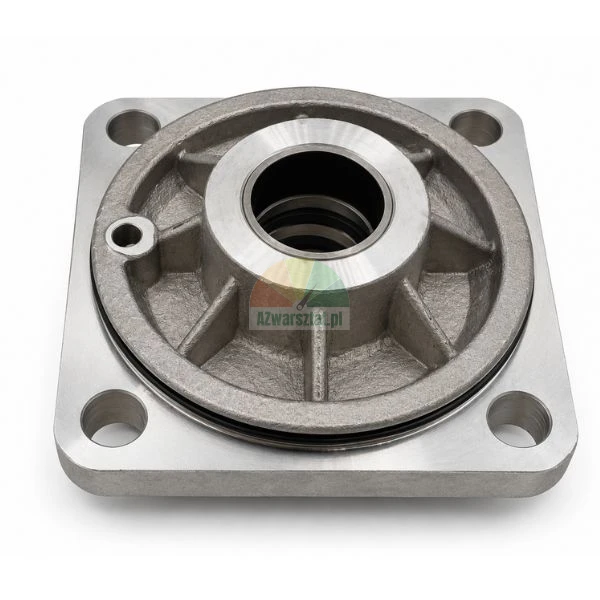

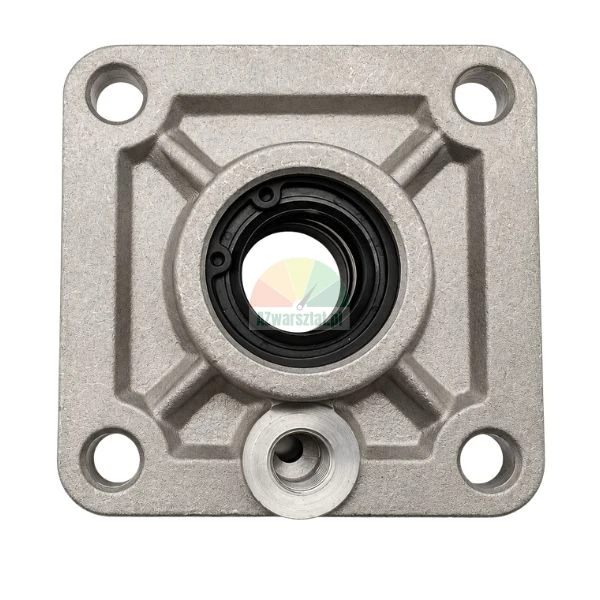

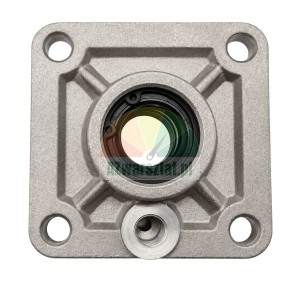

Clamping/swivel cylinder cover (78x78mm) with 20mm bore

Reliable protection for pneumatic cylinders

The clamp/swivel cylinder guard is a robust protective element, specially designed to protect pneumatic cylinders. Fitted with a 20mm diameter hole, it allows the piston rod to move freely while protecting it from mechanical damage, dust and other contaminants, ensuring long and trouble-free cylinder operation.

Product features:

Type: clamping/tilting cylinder cover with hole
Material: high strength steel

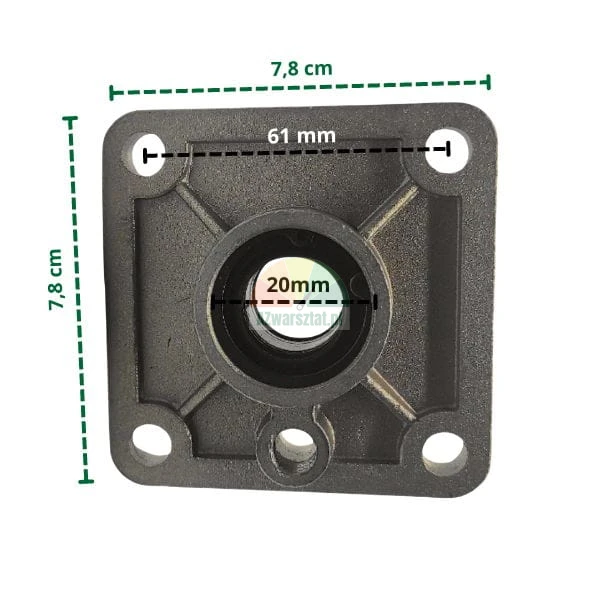

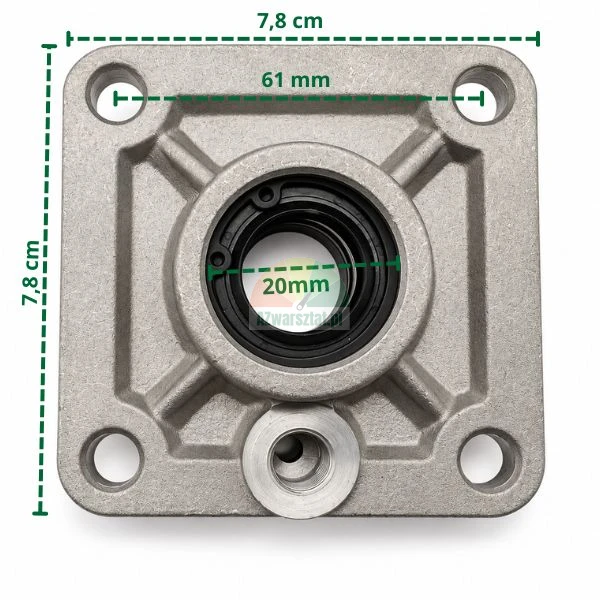

Dimensions:
- Outer width: 78 mm

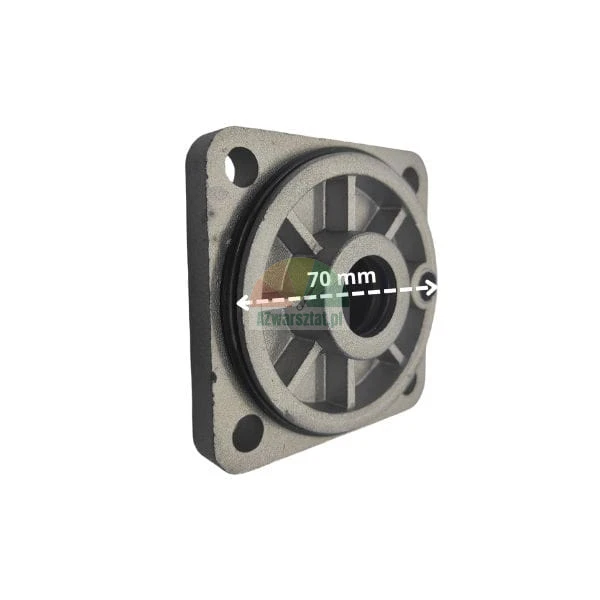

- Inner diameter: 70 mm
- Mounting hole spacing (diagonal): 61 mm
- Piston rod bore diameter: 20 mm
Assembly: Directly on the pneumatic cylinder
Application: Pneumatic cylinders in various industrial applications

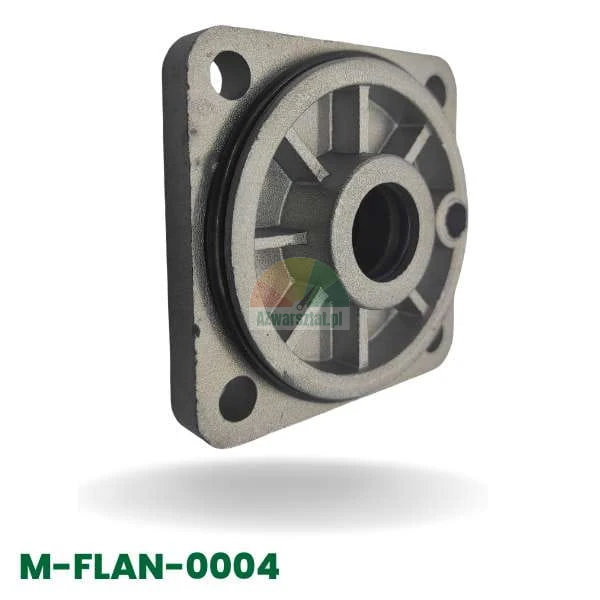

Article number: M-FLAN-0004 (with bore)

Advantages:

Protection: Effectively protects the actuator piston rod from damage
Durability: Made of robust material, resistant to wear and corrosion
Ease of installation: Simple and quick installation on the actuator
Functionality: The hole for the piston rod allows the component to move freely

Opt for safety and reliability - choose cylinder cover M-FLAN-0004 with hole!
