Cylinder cover with ear (7.8cm)

Secure payment

30 days to return

Fast shipping

€18.57

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

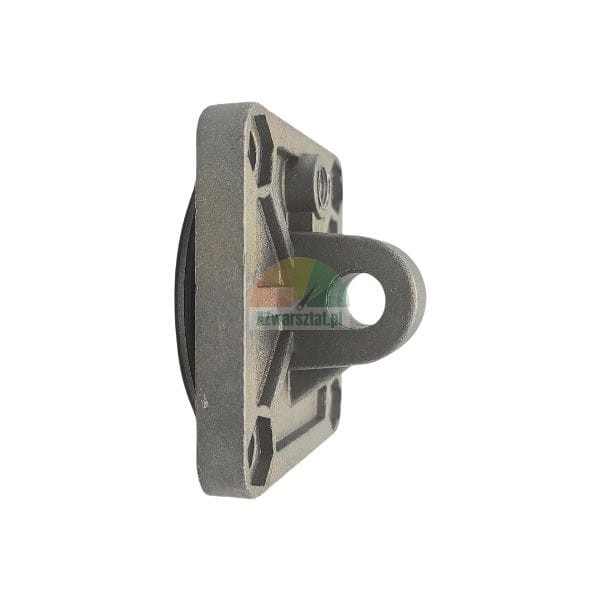

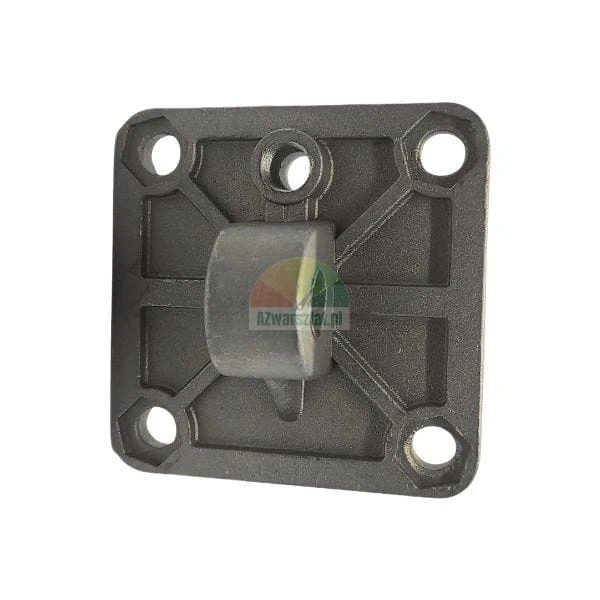

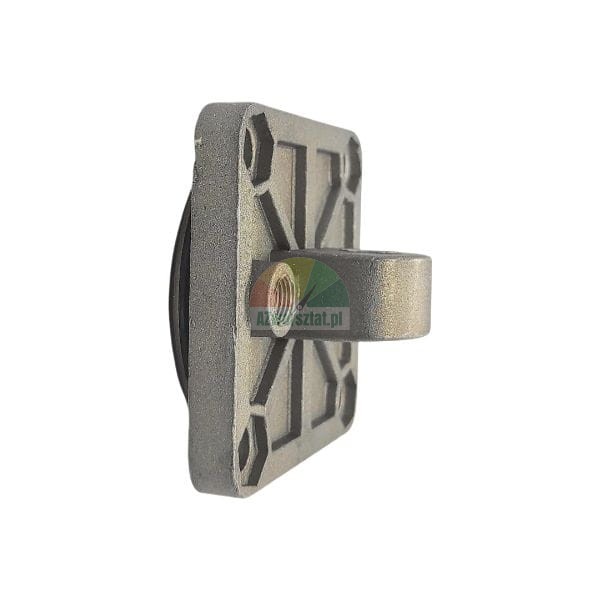

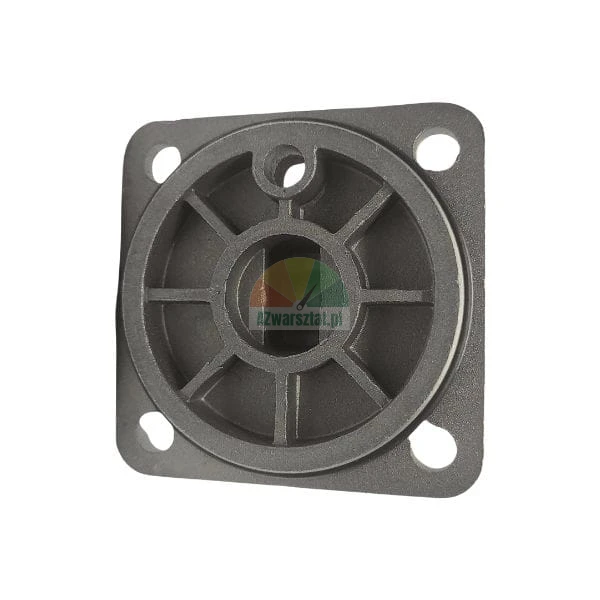

Clamping/tilting cylinder cover (7.8cm x 7.8cm)

Reliable protection for pneumatic cylinders

The M-FLAN-0001 clamping/tilting cylinder cover is a robust protective element, specially designed to protect pneumatic cylinders. Made of robust material, it effectively protects the piston rod of the cylinder from mechanical damage, dust and other contaminants, ensuring long and trouble-free operation.

Product features:

Type: clamping/tilting cylinder cover
Material: high strength steel

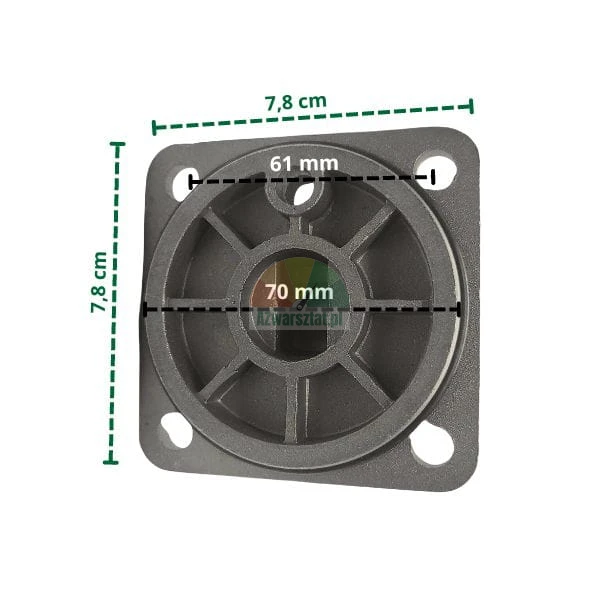

Dimensions:
- Outer width: 78 mm
- Inner diameter: 70 mm
- Mounting hole spacing: 61 mm
Mounting: Directly on the pneumatic cylinder
Application: Pneumatic actuators in various industrial applications

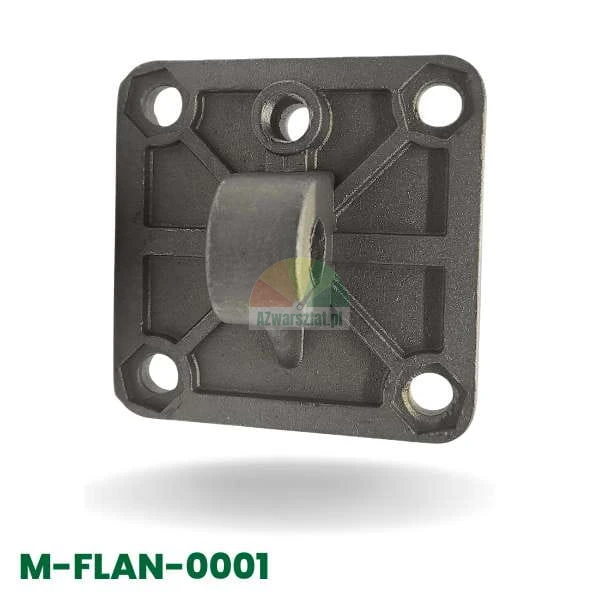

Article number: M-FLAN-0001

Advantages:

Protection: Effectively protects the piston rod of the actuator from damage
Durability: Made of robust material, resistant to wear and corrosion
Ease of installation: Simple and quick installation on the actuator

Opt for safety and reliability - choose cylinder guard M-FLAN-0001!
