Cylinder mounting flange with eye (9 cm)

The sturdy 9 cm long mounting flange with eye is a reliable component for attaching pneumatic cylinders to wheel assemblers.

Universally applicable - fits most cylinders with dimensions similar to 90x90 mm and a mounting hole of 20 mm. Ideal for retrofitting and repairing assembly units!

Technical specifications

Type: Mounting flange with eye for pneumatic cylinder
Material: High strength steel - wear and corrosion resistant
Outside diameter: 90 mm

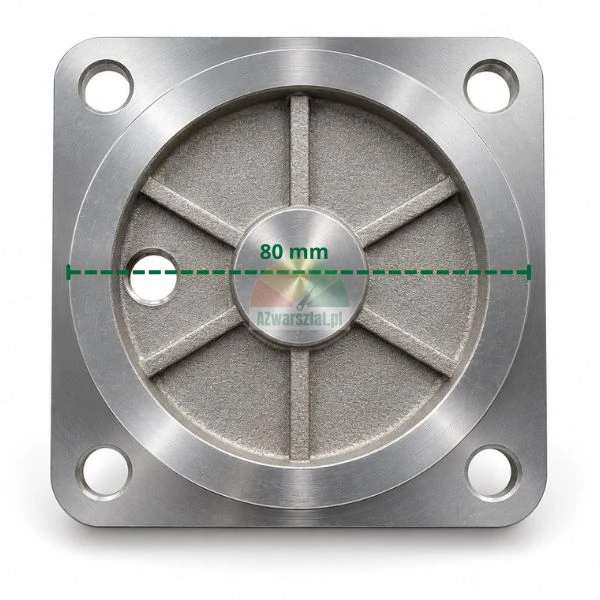

Mounting hole diameter: 20 mm

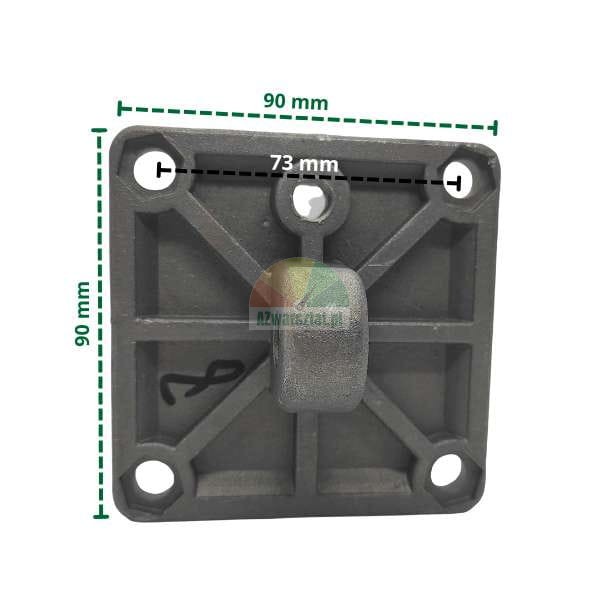

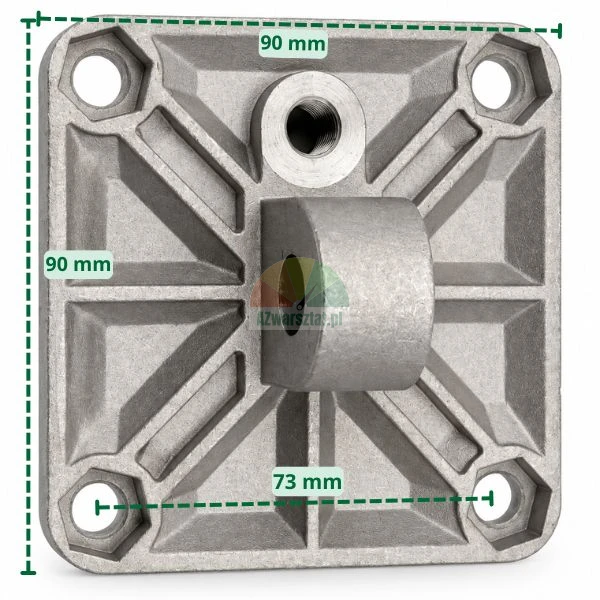

Mounting hole spacing (diagonal): 73 mm
Mounting method: Can be welded or screwed to the machine structure
Condition: New

The flange enables a stable and permanent connection of the actuator to the machine frame. It transfers the load and provides a movable, articulated connection via a pin.

Why choose this product?

Durableand long-lasting - solid steel guarantees a long service life even in harsh working conditions
Easy to install - can be welded or screwed on
Precise fit - ideal for 80mm actuators
New product - guaranteed quality and safe to use

Need a sturdy actuator mount? The mounting flange with eye (9 cm) is the proven choice for professional workshops and machine service centres!
