Micro switch CMV10
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: MT-MICR-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

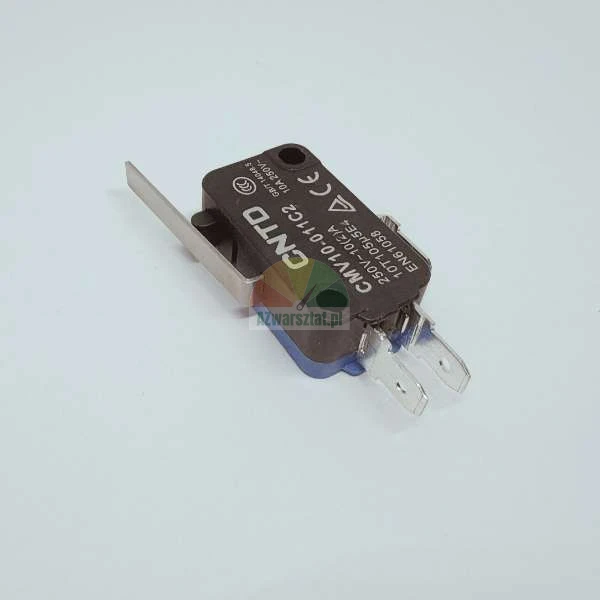

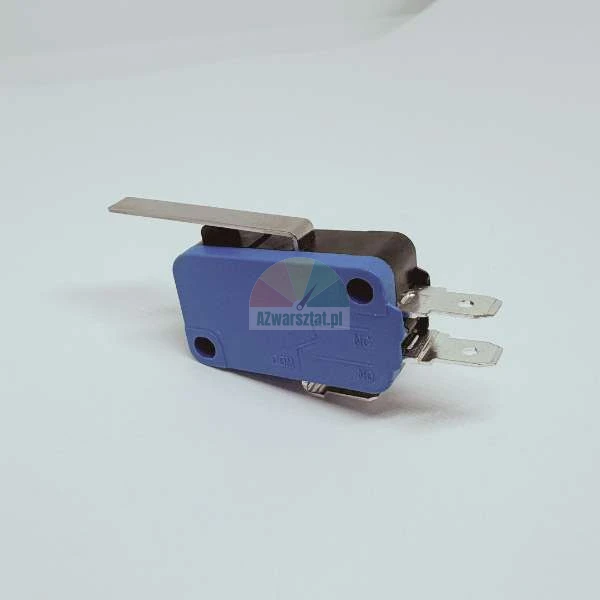

Microswitch CMV10 - reliable limit switch for workshop machines
The CMV10 microswitch is a high-quality, miniature snap-action limit switch designed for tyre changers, wheel balancers and vehicle lifts. Thanks to its compact design, versatility and robust steel lever, it is ideal for both professional service centres and smaller workshops.

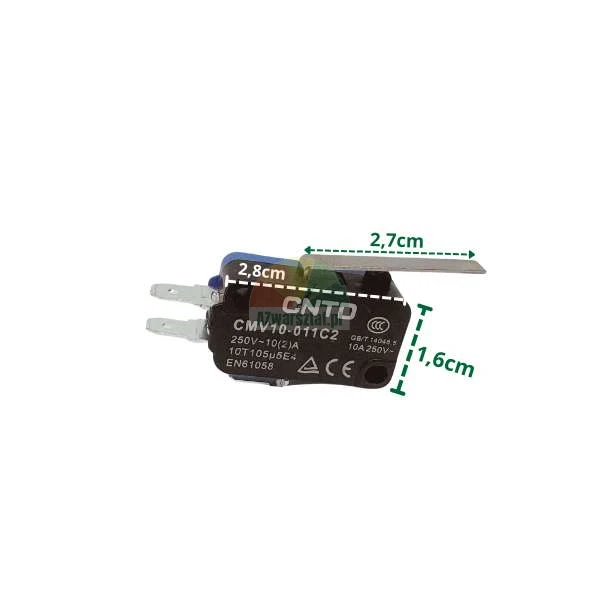

Dimensions of the microswitch:
- Body length: 2.8 cm
- Body height: 1.6 cm
- Lever length: 2.7 cm
Key product features:
- Compact dimensions - easy installation even in confined spaces
- High mechanical durability - up to 20 electrical cycles per minute
- Robust steel lever - resistant to intensive use
- Low contact resistance: max. 15 mΩ (initial value)
- Contact load: 10A (1NO/1NC)
- Operating voltage: 250V
- Insulation: over 100 MΩ at 500VDC
- Certifications: CE, compliance with EN61058
- Stable operation over a wide temperature range
- Universal use in workshop machines
- Simple assembly and quick replacement
Thanks to its precise operating mechanism, the CMV10 microswitch guarantees fast and reliable switching for the safety and efficiency of your machines. The ideal choice for quick repairs or machine upgrades - choose quality and reliability!
Application:
- Tyre changers
- Wheel balancers
- Vehicle lifts
- Other industrial and workshop machines requiring precise position detection or switching
Technical data:
- Type: micro limit switch (snap-action)

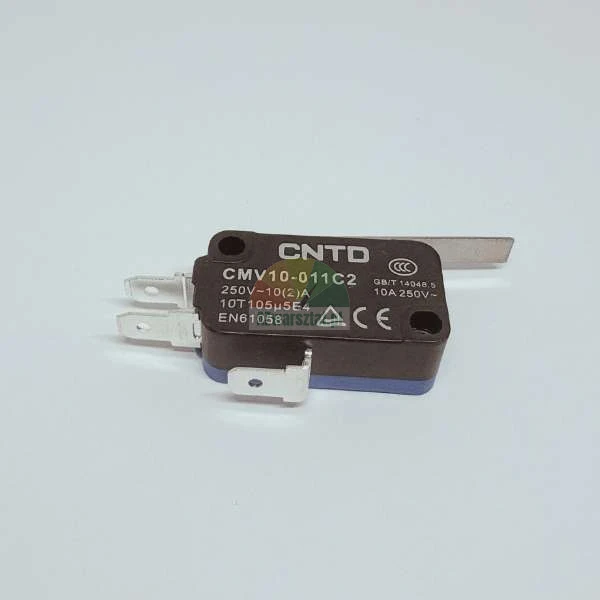

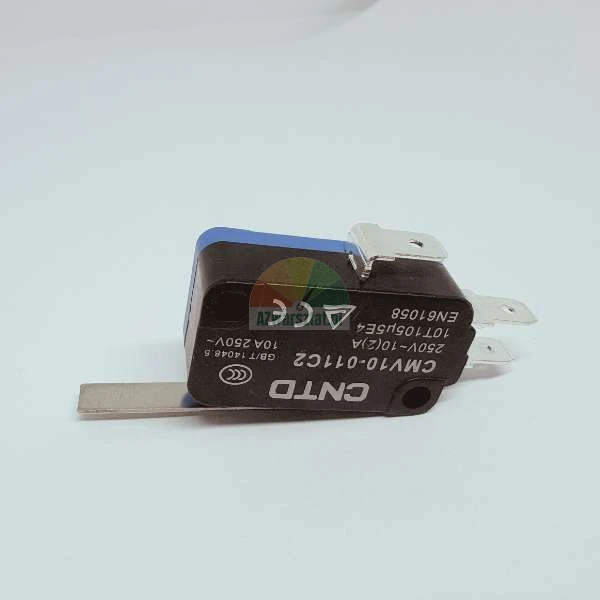

- Model: CMV10-011C2
- Contact configuration: 1NO/1NC
- Maximum load: 10A
- Operating voltage: 250V
- Insulation: >100 MΩ (at 500VDC)
- Contact resistance: ≤15 mΩ (initial value)
- Operating frequency: up to 20 cycles/min (electrical)
- Certifications: CE, EN61058
By choosing the CMV10 microswitch, you are investing in the reliability, long service life and operational safety of your machines. If you have any questions about compatibility or installation - contact our team!
