Universal two-column steel hoist rope (8.50m - 8.72m)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-LINA-0010
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

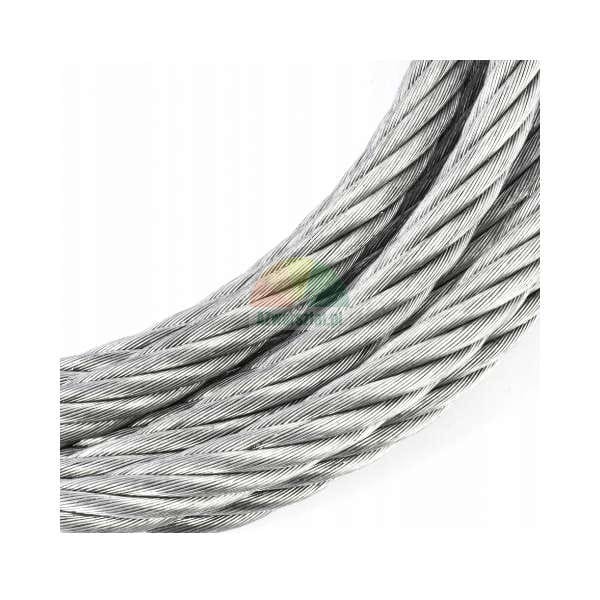

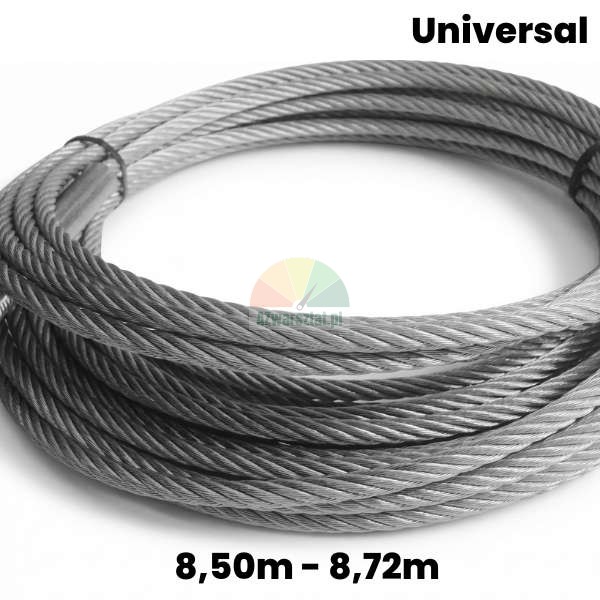

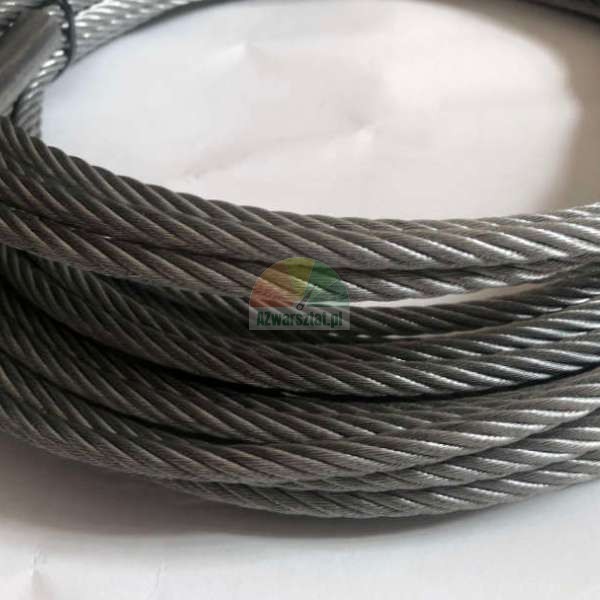

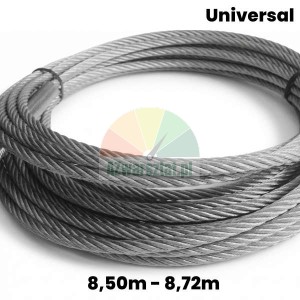

Universal wire rope for bottom jointed two-column lifts (8.50m to 8.72m)

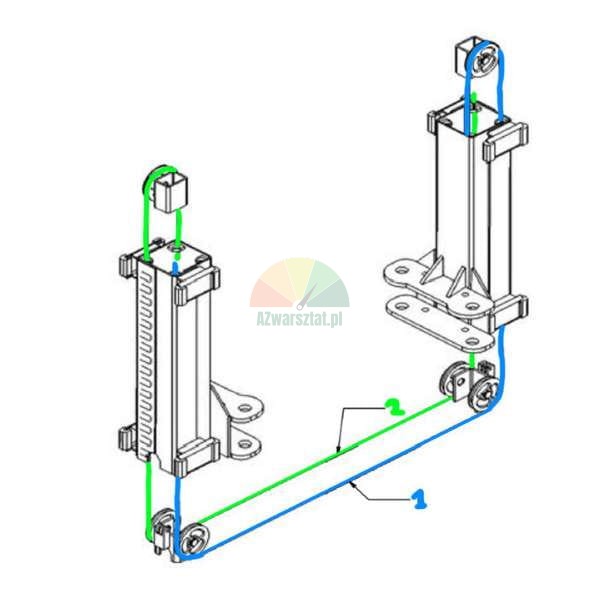

We have developed a universal wire rope designed to synchronise the arms on two-column lifts. It is a key safety feature, ensuring even lifting and lowering of the vehicle.
Why is it so versatile?

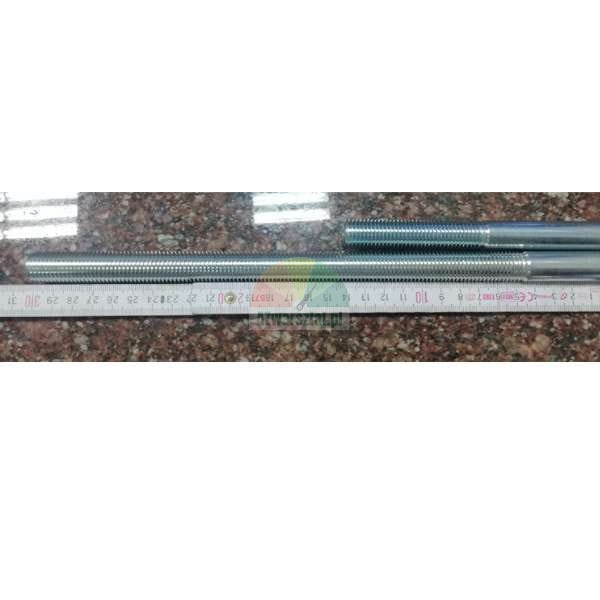

Often, a crimp that is too long on one side could enter the guide puck, so our rope has a very short crimp on one side - a 7cm threaded element (you can still shorten it if necessary).
Different rope lengths of 8.72m, 8.65m, 8.94m etc. are used in lifts. Often you do not know what length of rope your lifter has. That is why, on the other hand, we have used the maximum long thread of 26cm (1). We believe that workshop owners are able to shorten the threaded piece accordingly themselves (someone who repairs cars must know how to use an angle grinder :). This makes the installation of our rope much easier, and when installing, the installer can specify how much he would like to shorten the rope, while maintaining ease of installation (ease of gripping the rope with the nuts).
These features make our rope suitable for the entire range of two-column lifts with rope lengths from 8.50m to 8.72m.
The ropes have special certificates, which we send on request, e.g. when someone needs to UDT
Technical specifications:
- Overall length: 8.72m
- Threaded ends: 26 cm and 7 cm
- Surface: Galvanised
- High abrasionresistance and flexibility
Advantages:
- Increased flexibility due to multi-strand construction
- Excellent corrosion resistance
- Optimised for use on pulleys
- Guarantee of even synchronisation of the lift arms
Dedicated to two-column lifts as part of the synchronisation system, ensuring safe and stable operation of the equipment.
Application:
The product is particularly recommended for garages performing regular service work. Meets safety standards and has the necessary certificates for use in workshop equipment.
The product meets safety standards and has the necessary certificates for use in workshop equipment.
Product safety
Certificates and safety warnings
- Certificate of Steel Cables for Car Lift, Community Directives 2006/42/WE, Harmonized standards and other technical specifications: PN-EN-ISO 12100-1-2012
Manufacturer
Metalmex-Instal Sp. z o.o.
ul. Łęgska 3
87-800 Włocławek, Poland
Responsible person in the EU
Metalmex-Instal Sp. z o.o.
ul. Łęgska 3
87-800 Włocławek, Poland
