Universal two-column steel hoist rope (8.72m - 8.94m)

Secure payment

30 days to return

Fast shipping

€82.72

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

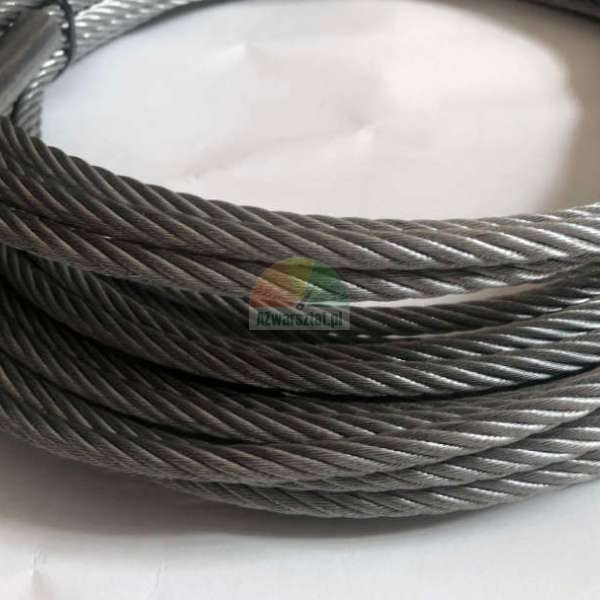

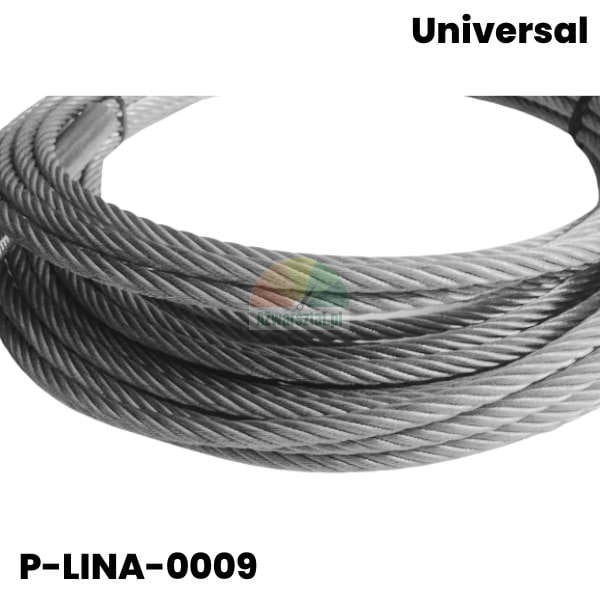

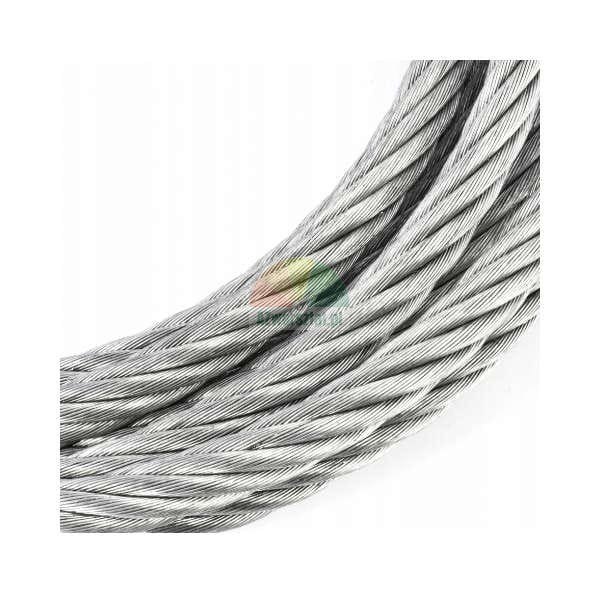

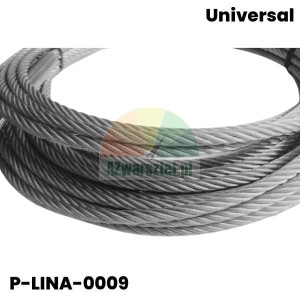

Universal wire rope for bottom jointed two-column lifts (8.74m to 8.94m)

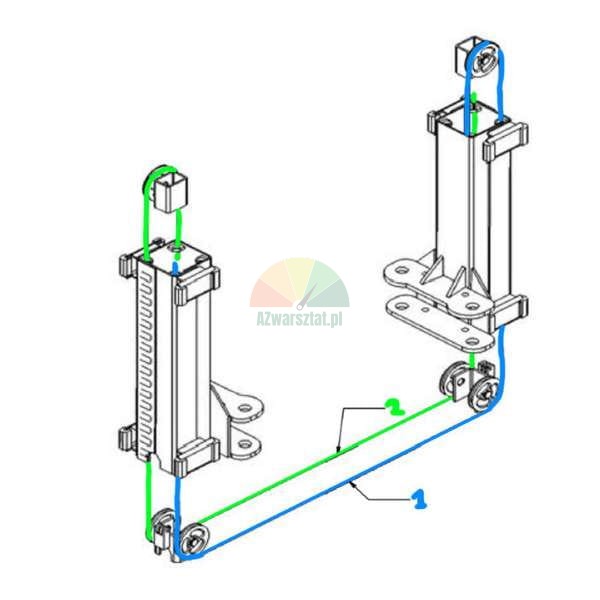

We have developed a universal wire rope designed to synchronise the arms on two-column lifts. It is a key safety feature, ensuring that the vehicle is raised and lowered evenly.

Important information: The product is certified and meets all the requirements of the Community Directives: 2006/42/EC and the harmonised standards and other technical specifications PN-EN-ISO 12100-1-2012

Why is it so versatile?

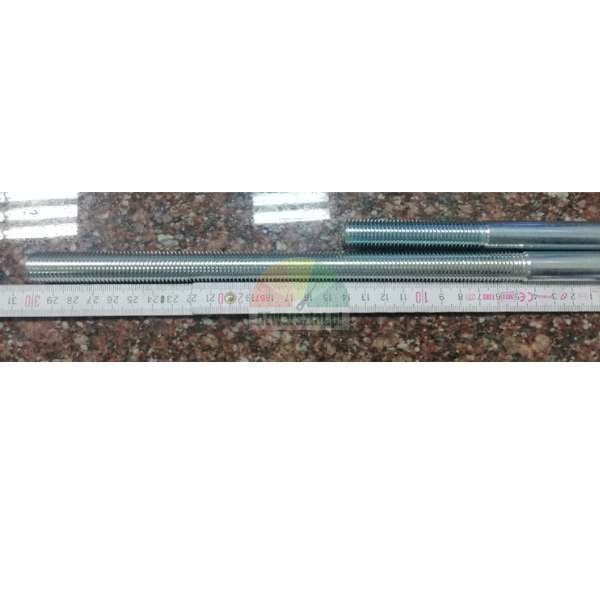

Often, a crimp that is too long on one side could enter the guide pulley, so our rope has a very short crimp on one side - a 7cm threaded element (you can still shorten it if necessary).

Different rope lengths of 8.72m, 8.65m, 8.94m etc. are used in lifts. Often you do not know what length of rope your lifter has. That is why, on the other hand, we have used the maximum long thread of 26cm (1). We believe that workshop owners are able to shorten the threaded piece accordingly themselves (someone who repairs cars must know how to use an angle grinder :). This makes the installation of our rope much easier, and when installing, the installer can specify how much he would like to shorten the rope, while maintaining ease of installation (ease of gripping the rope with the nuts).

These features make our rope suitable for the entire range of two-column lifts with rope lengths from 8.72m to 8.94m.

The ropes have special certificates which we send on request, e.g. when someone needs to UDT

Technical specifications:

Overall length: 8.94m
Threaded ends: 26 cm and 7 cm
Surface: Galvanised
High abrasionresistance and flexibility

Advantages:

Increased flexibility due to multi-strand construction
Excellent corrosion resistance
Optimised for use on pulleys
Guarantee of even synchronisation of the lift arms

Dedicated to two-column lifts as part of the synchronisation system, ensuring safe and stable operation of the equipment.

Application:

The product is particularly recommended for garages performing regular service work. Meets safety standards and has the necessary certificates for use in workshop equipment.

The product meets safety standards and has the necessary certificates for use in workshop equipment.

Certificates and safety warnings

Certificate of Steel Cables for Car Lift, Community Directives 2006/42/WE, Harmonized standards and other technical specifications: PN-EN-ISO 12100-1-2012

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Importer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
