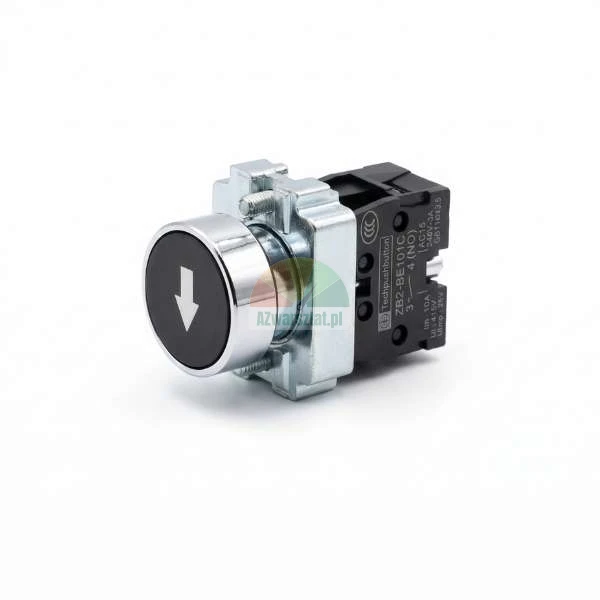

Lift button - black with arrow 1 x NO (metal)
A reliable control button for vehicle lifts. This metal button with black housing and white arrow, equipped with 1 x NO (normally open contact), provides precise control of vehicle lifts in service centres and workshops.
Key benefit: The monostable mechanism with self-return guarantees safety - the circuit only closes when pressed, minimising the risk of accidental actuation.
Key product features
- Metal construction - high durability and resistance to intensive workshop use
- 1 x NO contact - 3A/240V AC, ideal for controlling solenoids and hydraulic pumps
- 22mm mounting diameter - fits standard lift control panels
- Arrow marking - clear lifting symbol, intuitive operation without confusion
- IP44 protection - resistant to dust and splashes of oil or water

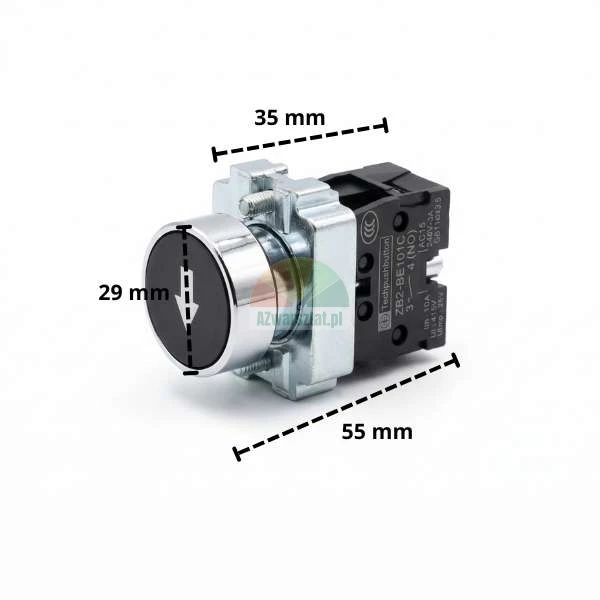

- Dimensions: W approx. 30 mm, H approx. 30 mm, D approx. 40 mm - compact and easy to install
Compatibility: Fits most single- and two-post vehicle lifts (e.g. PK-4000, P1-3500) and other machines with 22 mm holes.
Why choose this button?
This professional metal button guarantees a long service life - more than 1 million operating cycles thanks to oxidation-resistant silver contacts. Easy installation without special tools: simply drill a 22 mm hole, connect the wires to the screw terminals and you're done. Ideal for quick repairs in vehicle service centres!
Safety first: The normally open contact (NO) only activates under pressure, preventing uncontrolled lifting. The easy-to-read white arrow on a black background makes operation simple even in the dim light of the workshop.
Ready to use immediately after installation! Brand new, in original packaging.
Buy now and restore full functionality to your vehicle lift! Fast shipping, quality guarantee for professionals.
