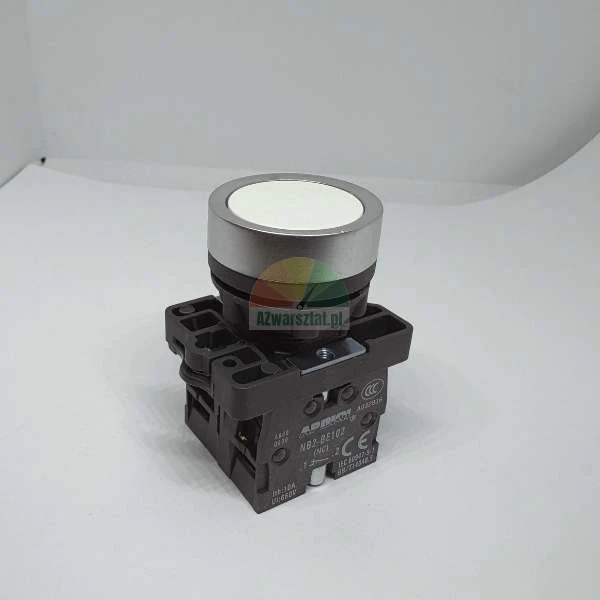

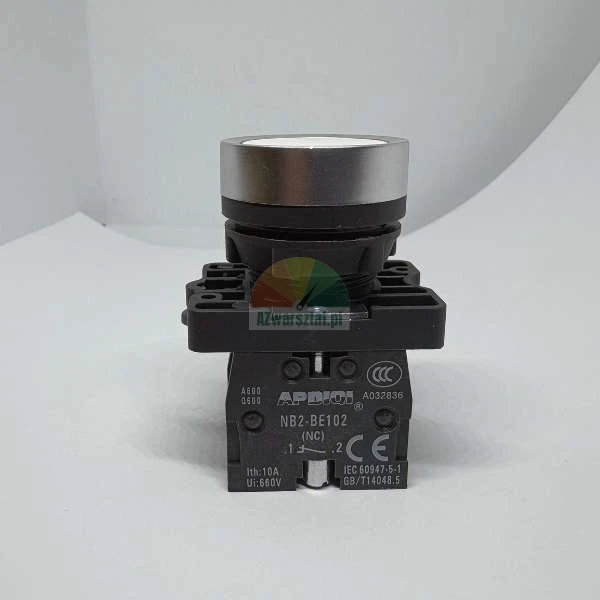

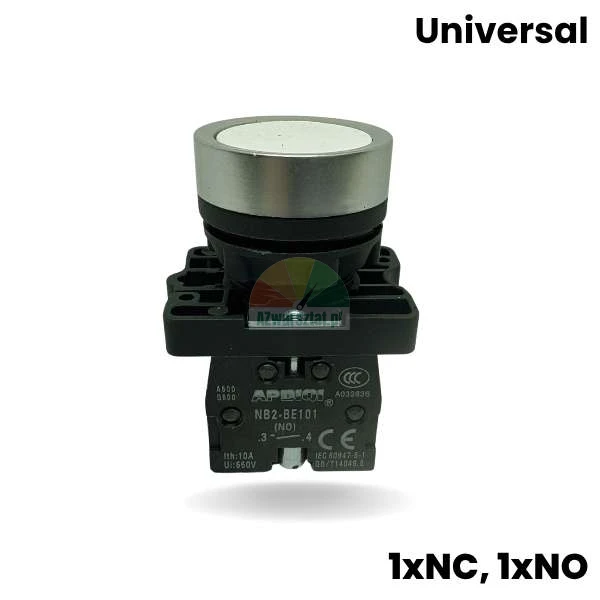

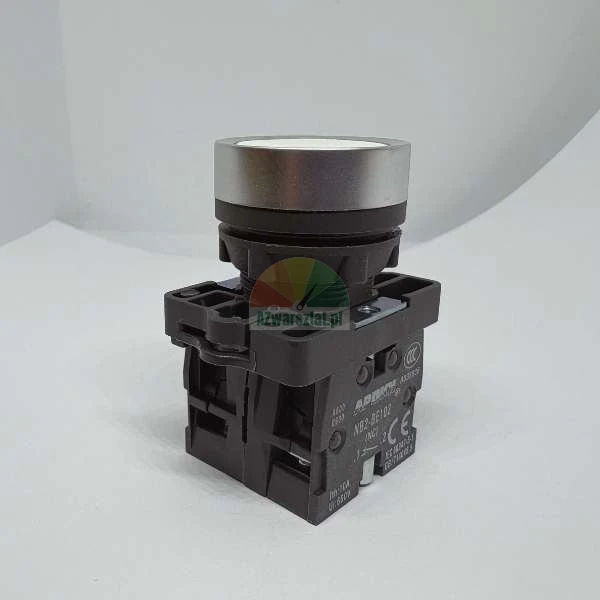

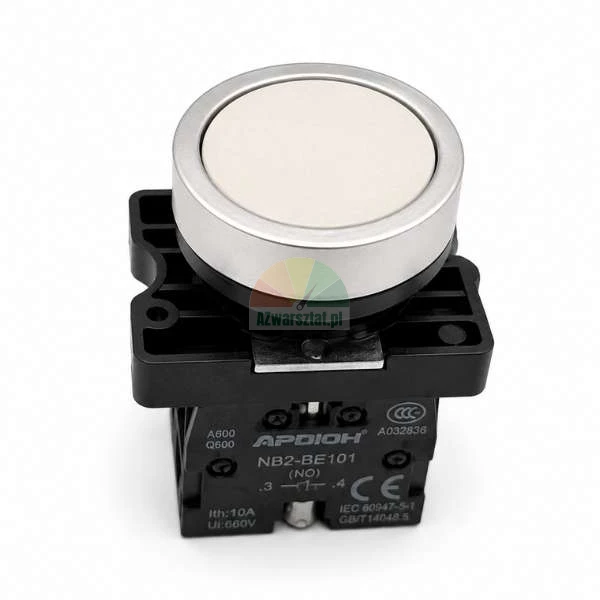

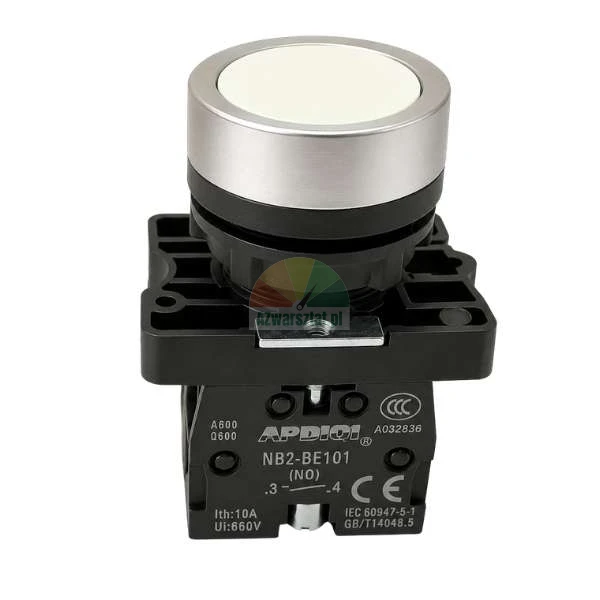

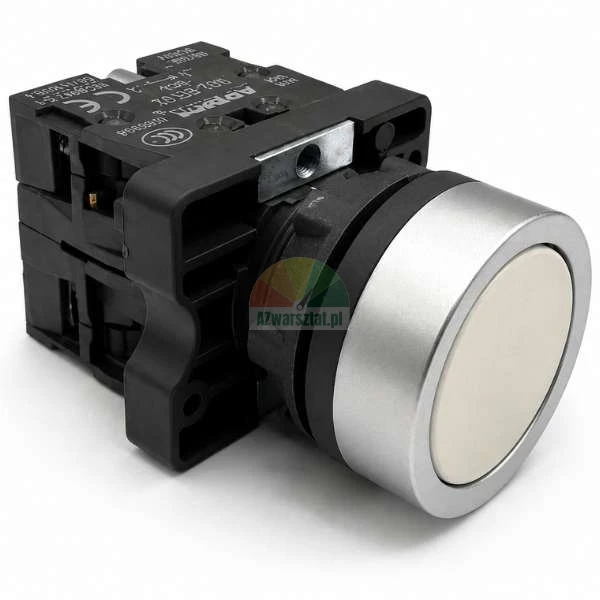

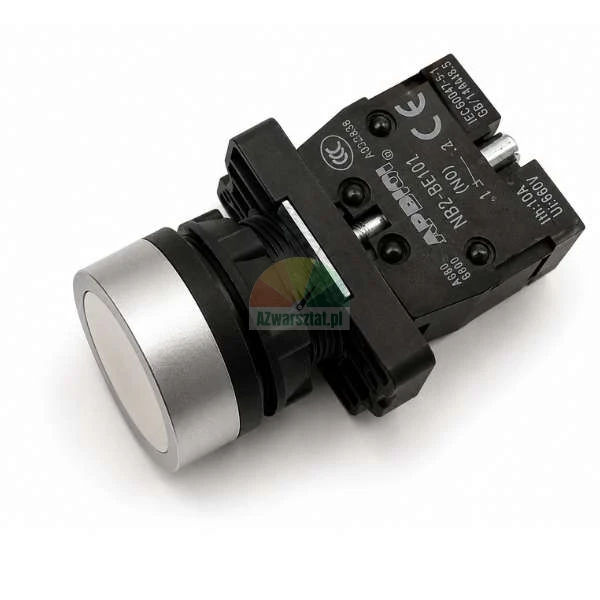

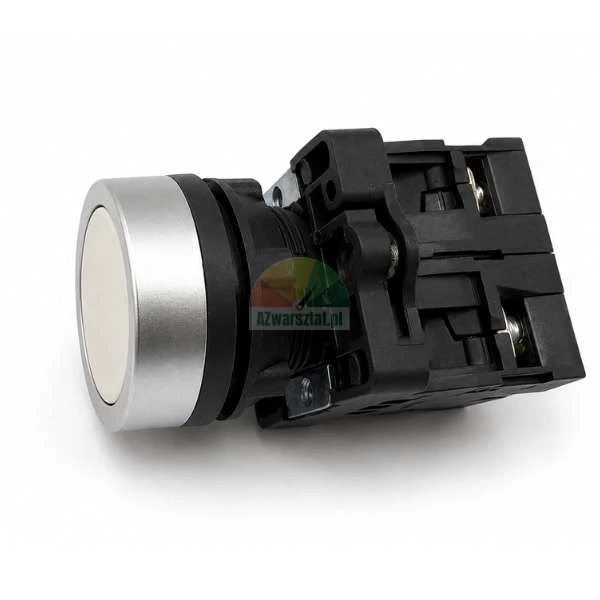

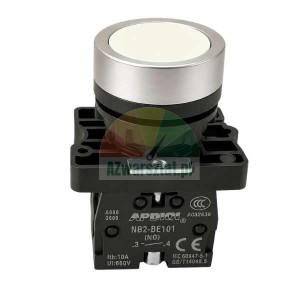

Lifting switch - white 1 x NO, 1 x NC

Universal elevator button in white, equipped with two independent contacts: 1 x NO (normally open) and 1 x NC (normally closed). Designed for use on wheel fitters, wheel balancers and vehicle jacks. Ideal for industrial and workshop machine control panels where reliability and operating safety are important.

Universal application - the button fits most devices available on the market, and its compact dimensions allow for easy installation even in the limited space of the control panel.

Contact type: 1 x NO, 1 x NC
Colour of button: white
Mounting diameter: 22 mm (fits most standard mounting holes)
Button diameter: 30 mm
Overall height: 55 mm
Height of mounting part: 31 mm
Mechanism: monostable (spring return to start position)

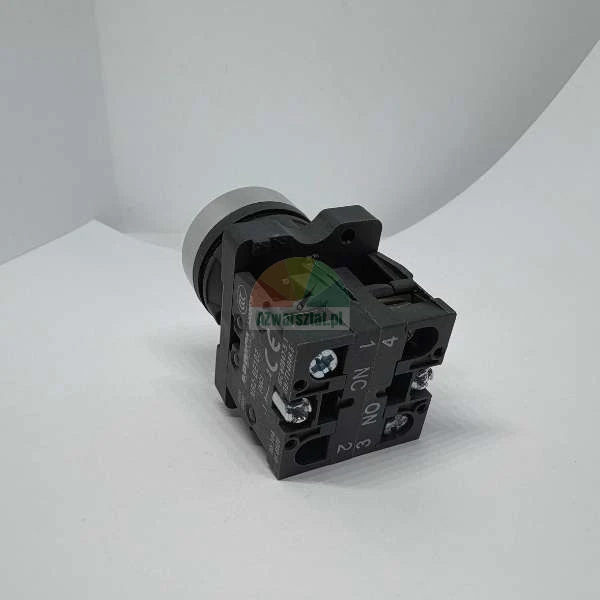

Connections: screwed - quick and secure assembly
Housing: durable plastic, resistant to typical workshop conditions
No illumination - ideal for standard applications
Protection class: IP40 - protection against solid objects >1 mm
Rated current: up to 10A
Maximum voltage: up to 500V AC

The NO+NC pushbutton allows for flexible control - you can simultaneously switch and disconnect different circuits, increasing safety and functionality in the workplace.

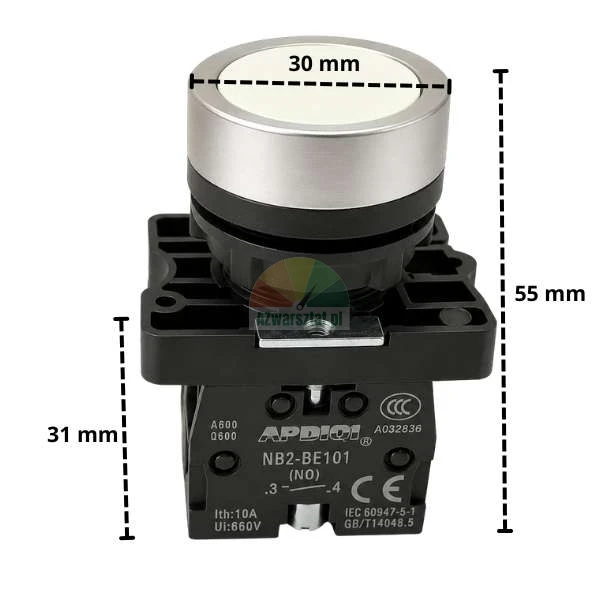

Przycisk podnośnika biały 1xNO 1xNC - wymiary

Product photo:

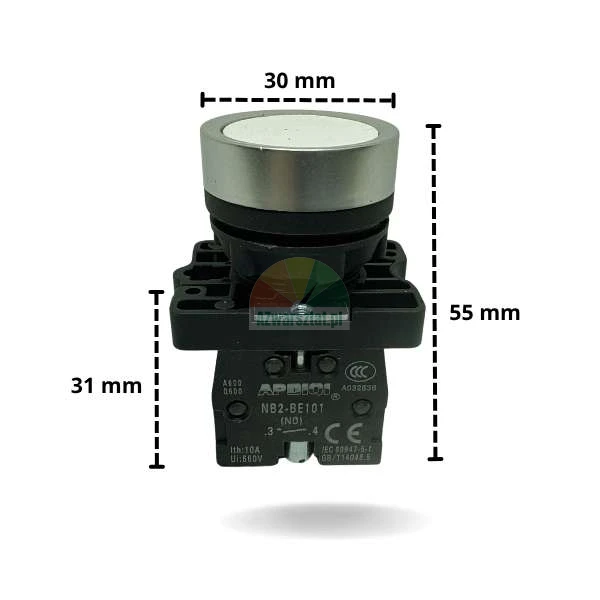

Lift button - white, button diameter 30 mm, overall height 55 mm, mounting part height 31 mm.

Application

Product dedicated to car jacks, tyre changers and wheel balancers. Also suitable for other industrial machines requiring reliable motion control or protection. Compatible with many models of popular workshop machine brands.

Distinguishing features

Simple installation - fits most control panels
Robust design - able to withstand typical workshop conditions
Safe operation - monostable mechanism prevents accidental activation
High quality construction ensures durability and reliability in everyday use

Replacing the push button is a quick way to restore full functionality of the machine without the need for costly repairs to the entire control panel.

Choose a proven jack button and ensure the reliability of your workshop equipment!

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland
