Main switch 72mm x 72mm - 20A

Włącznik główny 72mm x 72mm – zdjęcie produktu

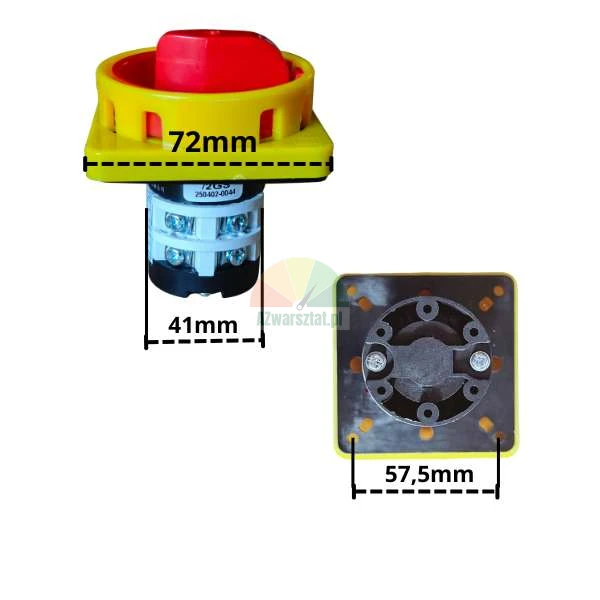

Pictured: Main switch with external dimensions of 72mm x 72mm. You can see the four mounting holes in the corners and the clear ON/OFF markings on the front. The compact design allows for easy installation even in confined spaces.

The robust universal master switch is a key safety feature in any workshop. It provides quick and effective power cut-off on machines such as wheel fitters, wheel balancers and car jacks. Ideal as a replacement for most popular workshop equipment - check dimensions before you buy!

External dimensions: 72mm x 72mm (7.2cm x 7.2cm) - compact design for easy installation even in limited machine space.
Mounting hole diameter: 41mm
Mounting hole spacing (rear): 57.5mm
Maximum load: 20A - ensures reliable operation even under heavy loads.

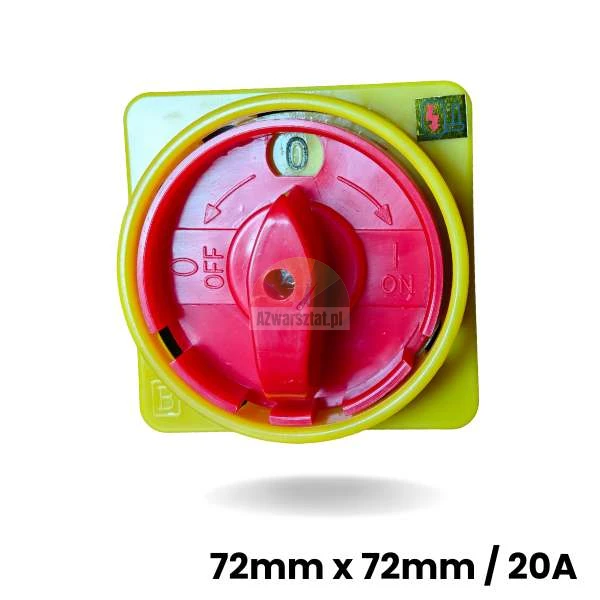

Clear ON/OFF markings - intuitive operation and increased safety of use.
Robust, durable construction - resistant to mechanical damage, designed for intensive use.
Mounting on mounting plate - standard dimensions fit most workshop machines.

Why choose this switch? Its compact size, universal use, durability and ease of installation make it the ideal choice for professional applications. It is a reliable component that increases team safety and protects valuable machinery from damage.

Application

wheel fitters
wheel balancers
vehicle jacks
other machines requiring a main power switch

Safety: a properly labelled main switch allows you to immediately cut off power to all circuits, minimising the risk of electrocution or damage to equipment in the event of a fault. This is the basis for safe working in any workshop.

Additional information: This product is intended for professional use only. We recommend consulting an electrician before installation.
