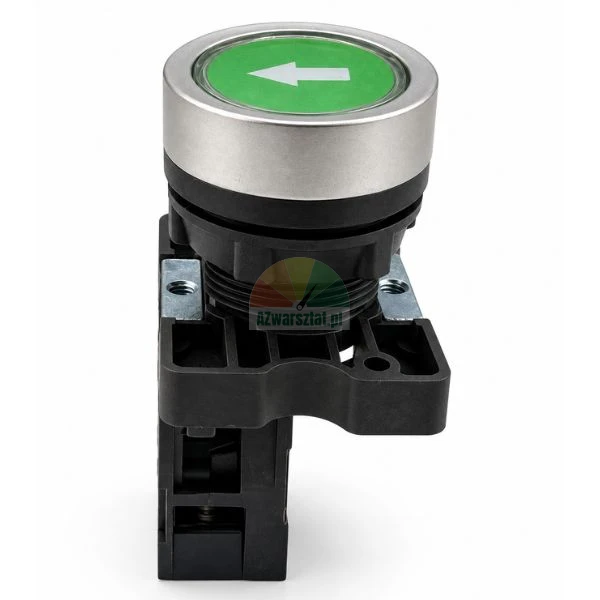

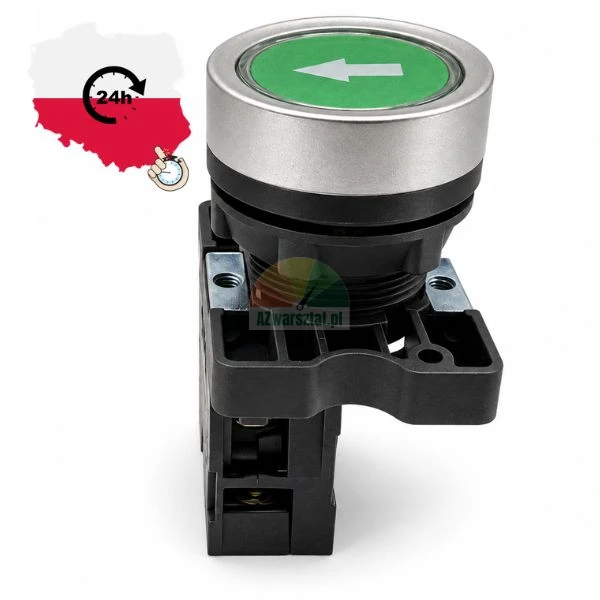

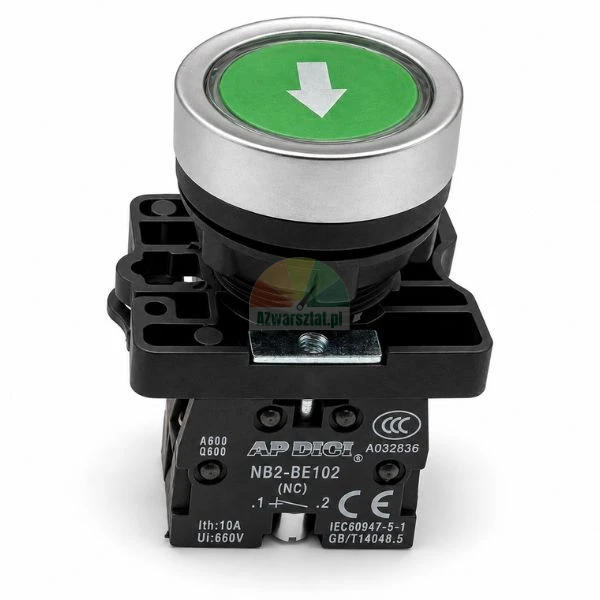

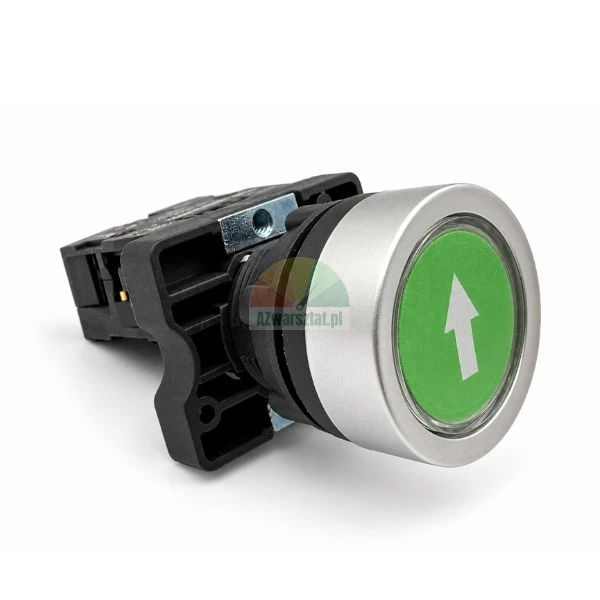

Vehicle Lift Push Button – Green with Arrow, 1 x NC
A high-quality control push button designed for installation on vehicle lifts, tyre changers, wheel balancers and other industrial equipment. Equipped with one NC (normally closed) contact, which means the circuit remains closed until the button is pressed, increasing operational safety.
The push button features a clear indication of the operating direction – a green arrow – which allows quick identification of the function and increases operating comfort even in poor lighting conditions.
Technical specifications:
- Type: Vehicle lift push button
- Colour: Green with arrow
- Contact configuration: 1 x NC (normally closed)
- Button diameter: 30 mm
- Mounting hole diameter: 22 mm
- Overall height: 56 mm
- Body height: 31 mm
- Rated voltage: up to 660 V
- Rated current: 10 A
- Standards: CE, IEC 60947-5-1
- Resistance to environmental conditions: Yes
Application:
Ideal for:
- Vehicle lifts
- Tyre changers
- Wheel balancers
- Other industrial machines requiring reliable control
Thanks to its robust construction, resistance to harsh working conditions and compliance with international safety standards, the push button ensures long-lasting and trouble-free operation in workshops and industrial facilities.
Product code:
P-PRZY-0011
Product photo:

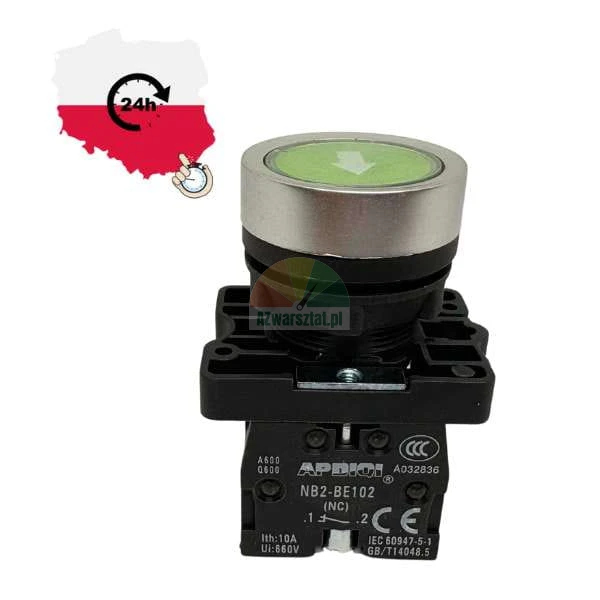

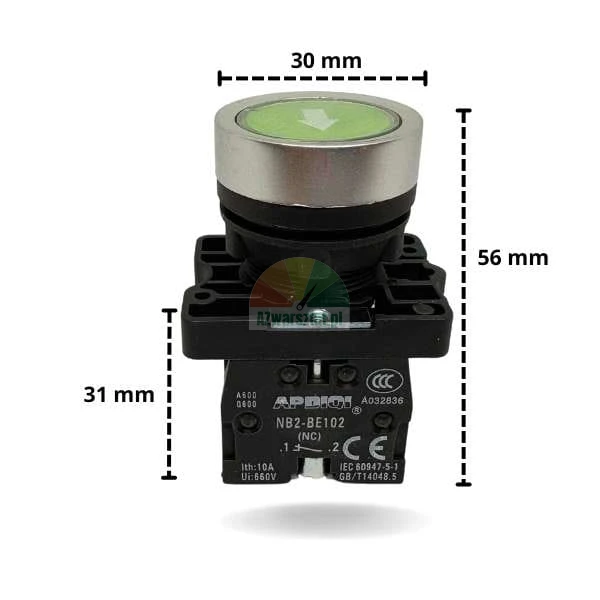

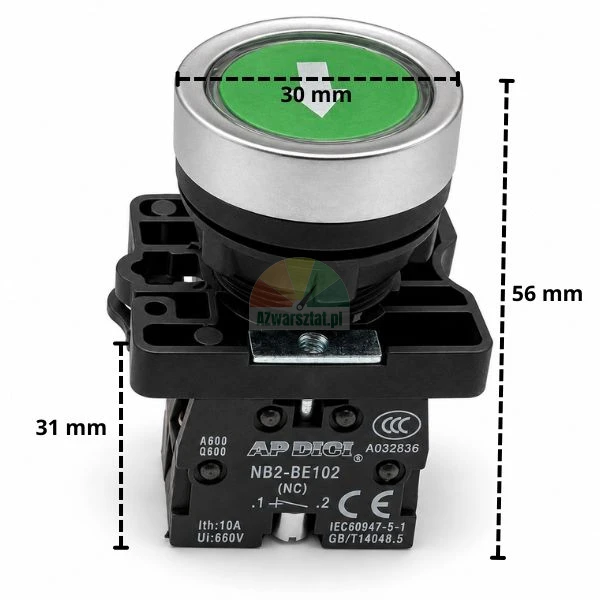

The picture shows a push button with a diameter of 30 mm and an overall height of 56 mm, with a clear indication of the operating direction in the form of a green arrow.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
