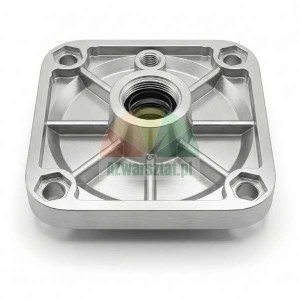

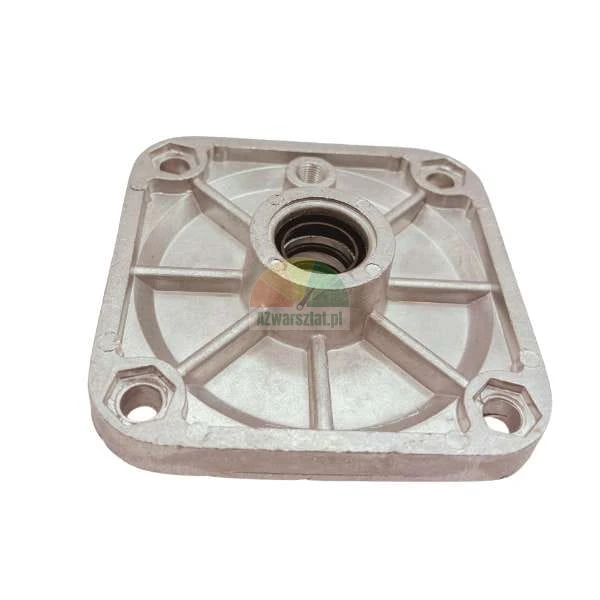

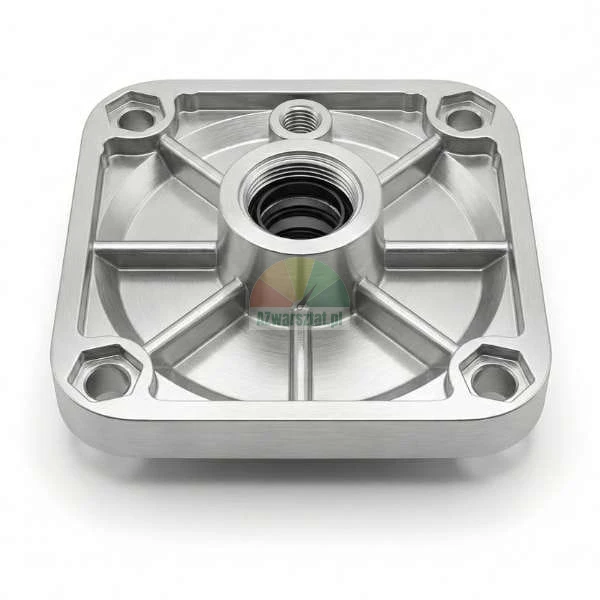

Clamping/tilting cylinder cover 10.9x10.9cm with hole for piston rod (100mm cylinder)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-FLAN-0008
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
High-quality Clamping / Tilt Cylinder Cover (10.9 x 10.9 cm)
Looking for reliable replacement parts for your tyre changer? At AZ Workshop, we offer a precision-made clamping cylinder cover designed for professional tyre fitters. The solid aluminium construction with reinforcing ribbing guarantees long-lasting and trouble-free operation of the machine even in the most demanding workshop conditions.

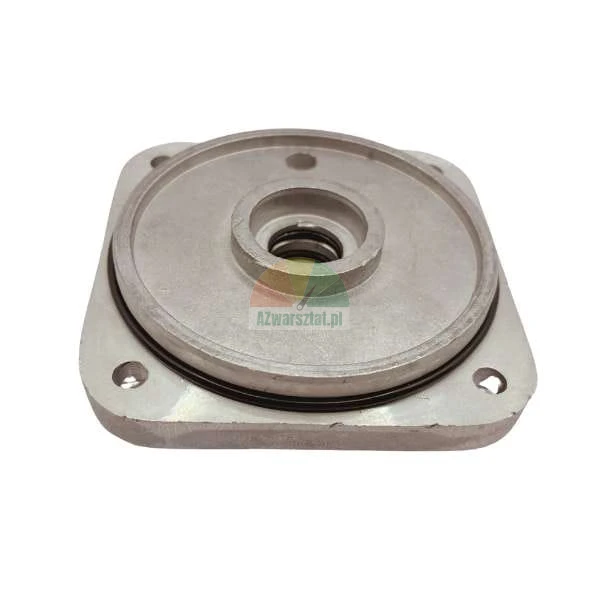

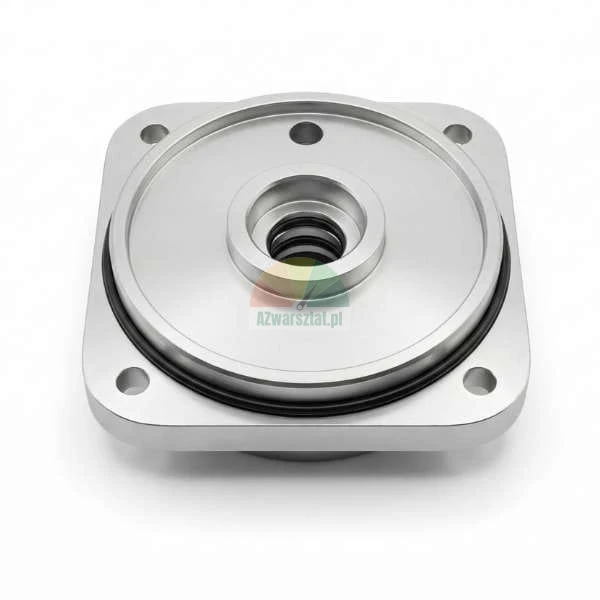

Important: The cover shown is designed for cylinders with a diameter of 100 mm. It features an integrated hole for the piston rod with a seated seal, which ensures adequate pressure and complete tightness of the pneumatic system.
Technical specifications and dimensions

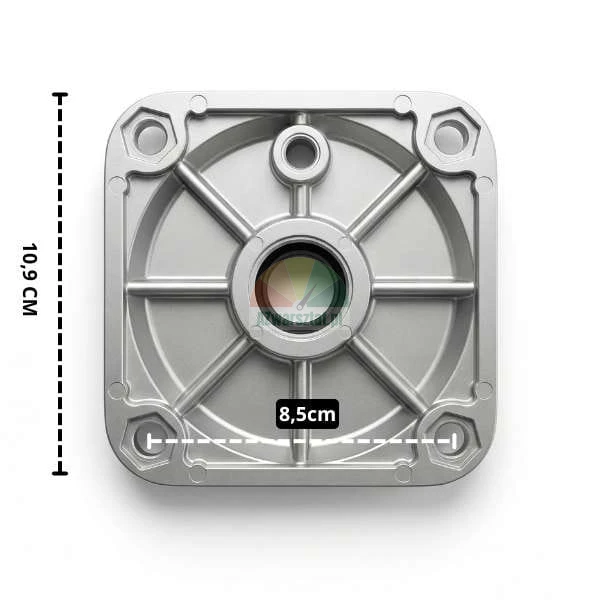

- Cover outer dimensions: 10.9 cm x 10.9 cm
- Mounting hole spacing: 8.5 cm (measured from centre to centre of hole)
- Compatible cylinder diameter: 100 mm
- Application: Table clamping cylinders or column tilt cylinders in tyre changers
- Material: High-grade aluminium alloy, resistant to corrosion and mechanical damage.
Thanks to the factory-installed seal, the part is complete and fully ready for immediate installation, saving you time when servicing your machine.
Quality guarantee at azworkshop.eu
In our online shop, we make sure to supply only tested and durable components for vehicle lifts, wheel balancers and tyre changers. Choosing this cover from the azworkshop.eu offer, you can be sure of a perfect fit, high stress resistance and restoration of your machine's full efficiency.
