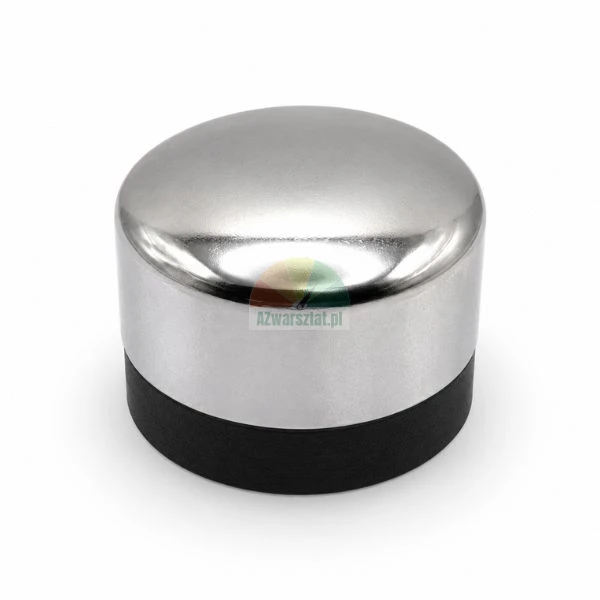

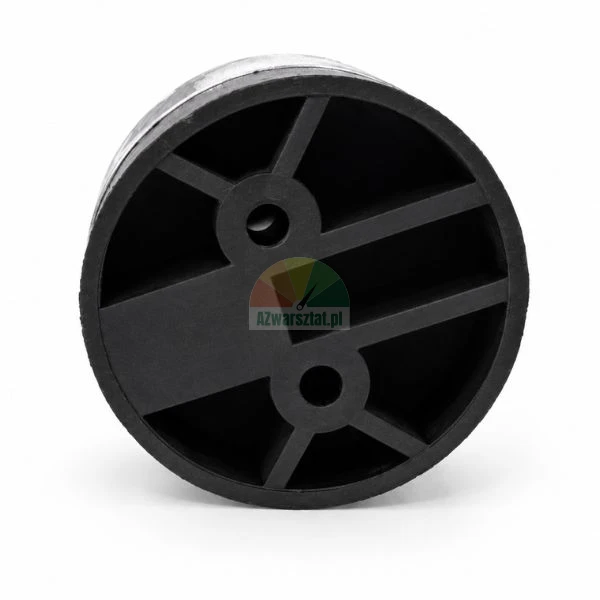

Complete vertical/horizontal (mushroom) actuator TYPE B

The complete vertical/horizontal actuator TYPE B, also known as "mushroom", is a key component of the mechanism in assembly equipment. It is distinguished by its high quality workmanship, durability and precise operation, guaranteeing long-term and trouble-free operation.

Technical specifications

Outside diameter: 63 mm
Height: 50 mm
Connection thread: 8 mm

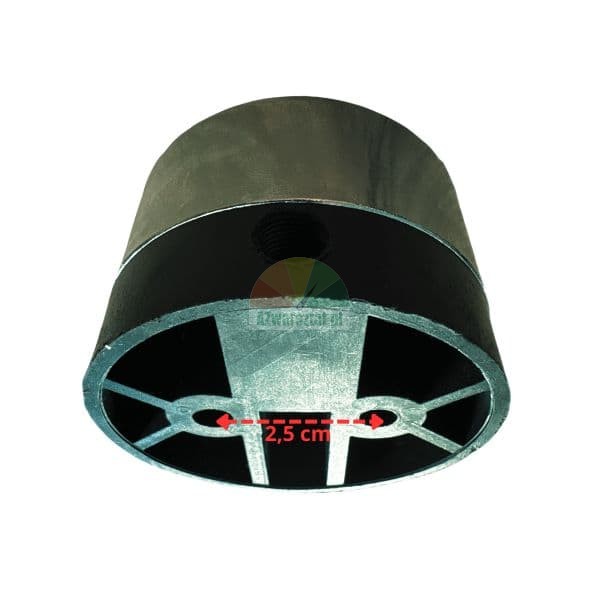

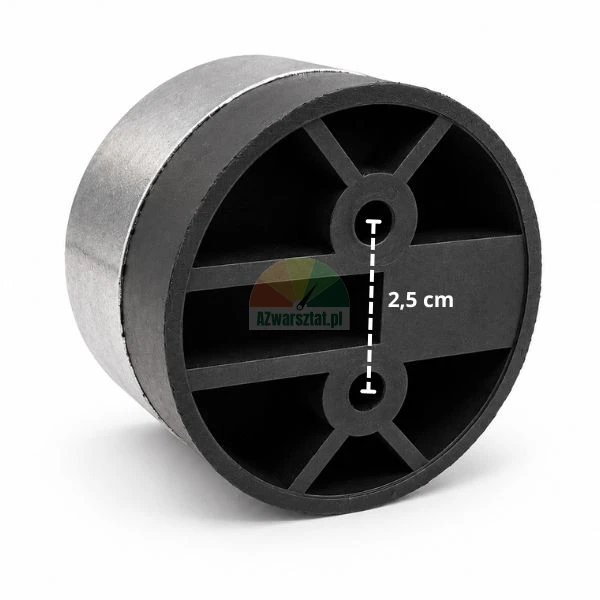

Inner diameter of base: 2.5 cm

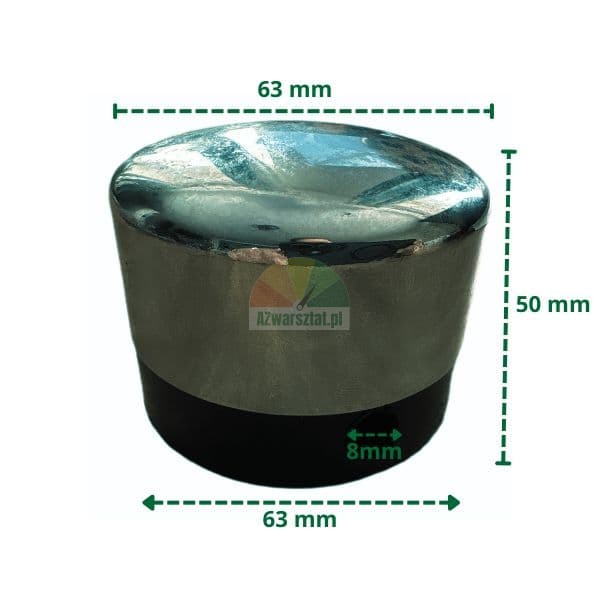

The dimensions of the product are shown in the diagram below:

Application

The TYPE B actuator is used in the vertical and horizontal mechanisms of assembly machines, performing the function of regulation and stabilisation of movement. Its robust construction allows precise control and smooth operation.

Product features

Material: Durable metal alloy with corrosion-resistant coating.
Precision craftsmanship: Guarantees a perfect fit to the mechanism.
Ease of installation: Standard thread allows for quick installation.
Versatility: Compatible with a wide range of fitting machines.

Mounting

Assembly of the TYPE B actuator is simple and intuitive. Simply place the component in the correct position in the mechanism, making sure that the connection thread is correctly tightened to ensure a tight and stable connection.

Compatibility

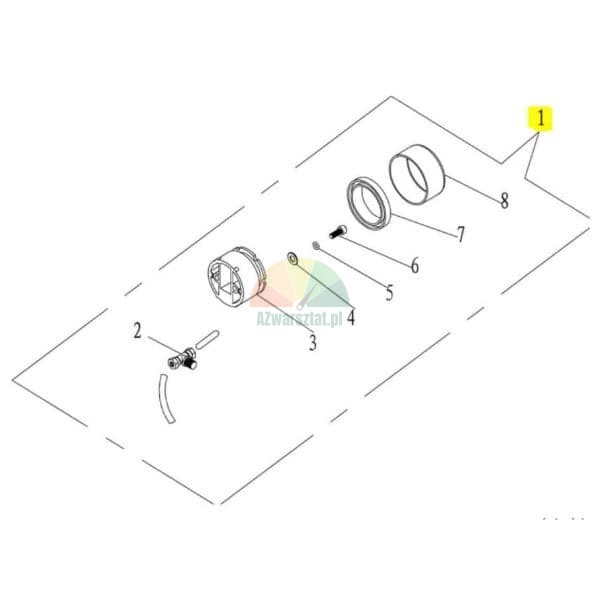

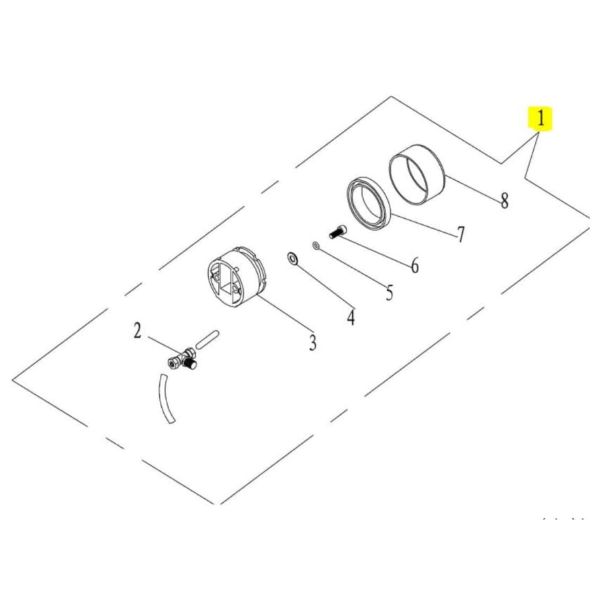

The TYPE B actuator is compatible with a wide range of mounting devices and is marked as component No. 1 on the mounting diagram:
