Complete vertical/horizontal (mushroom) actuator TYPE D

Secure payment

30 days to return

Fast shipping

€30.32

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

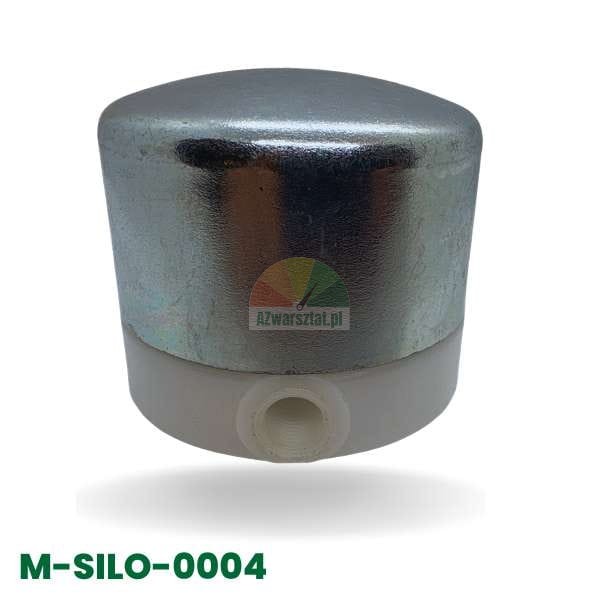

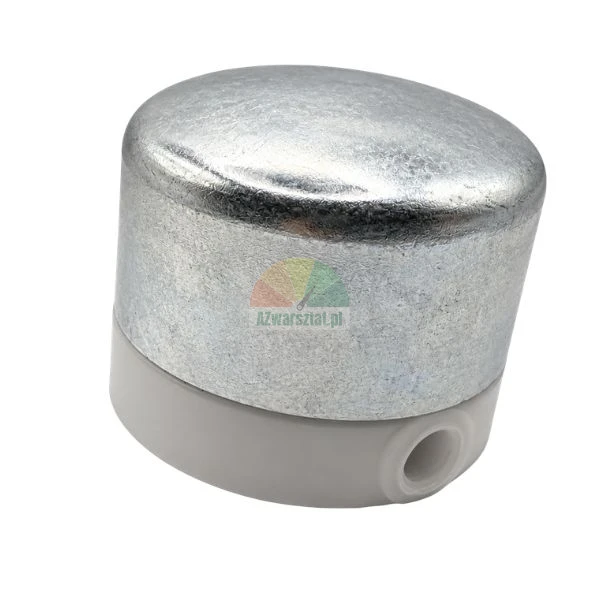

Complete vertical/horizontal actuator RDO0981-pl

The RDO0981-pl complete vertical/horizontal actuator is a professional hydraulic component, specially designed for assembly machines. It is characterised by its robust design and precise execution.

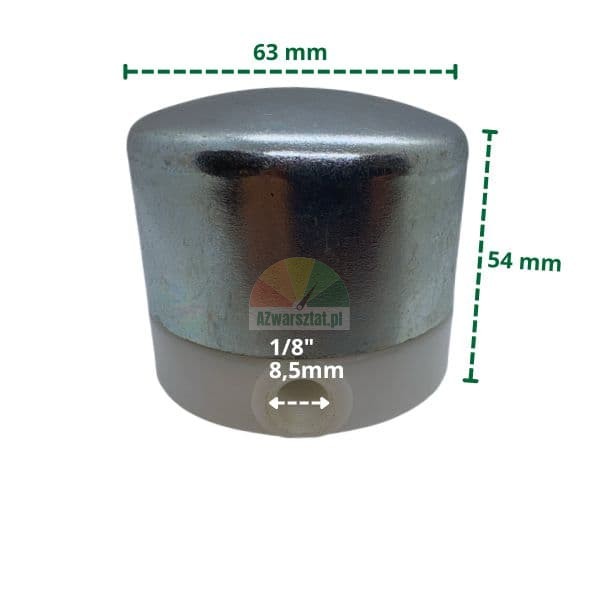

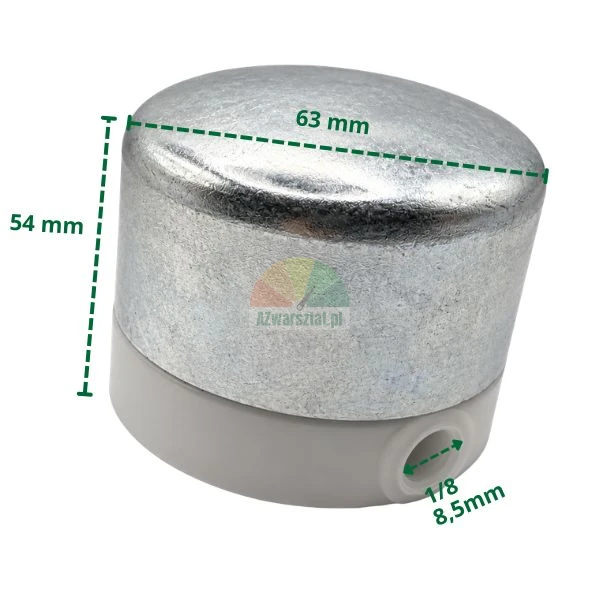

Technical specifications

Outside diameter: 63 mm
Overall height: 54 mm
Hydraulic connection: 1/8" (8.5 mm)

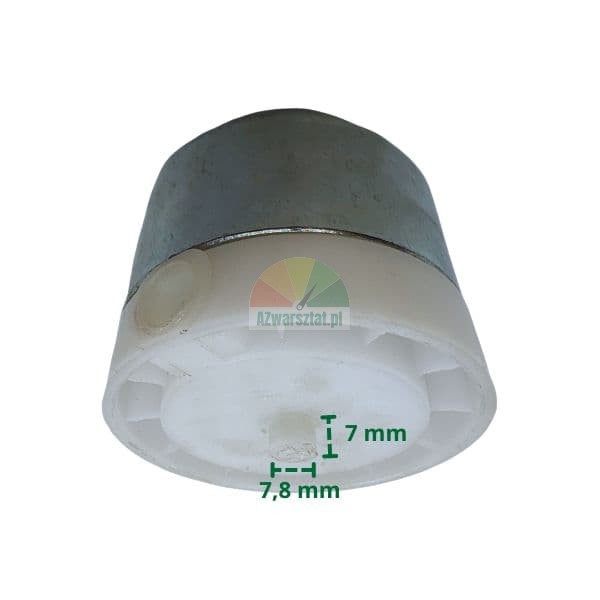

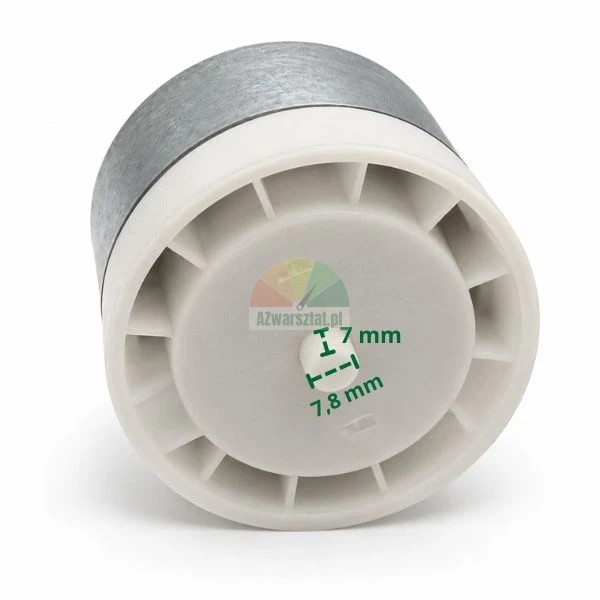

Mounting socket depth: 7 mm
Internal socket diameter: 7.8 mm

Product features

Design

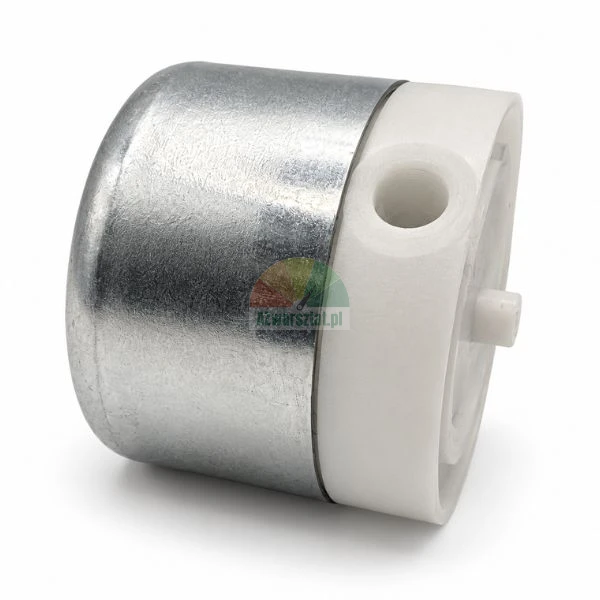

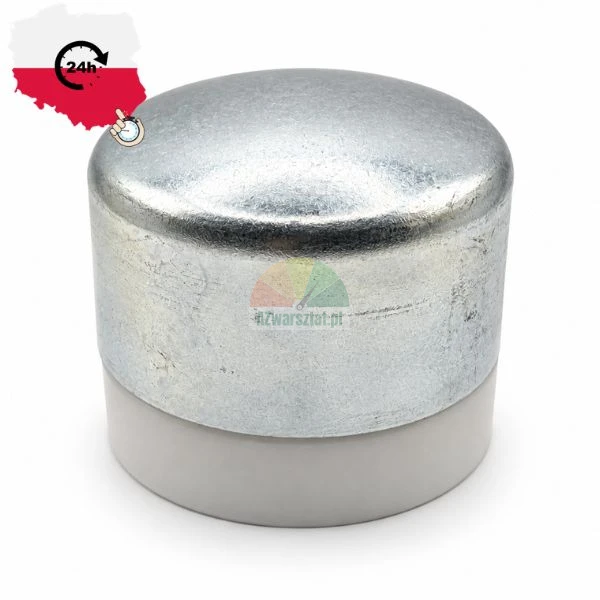

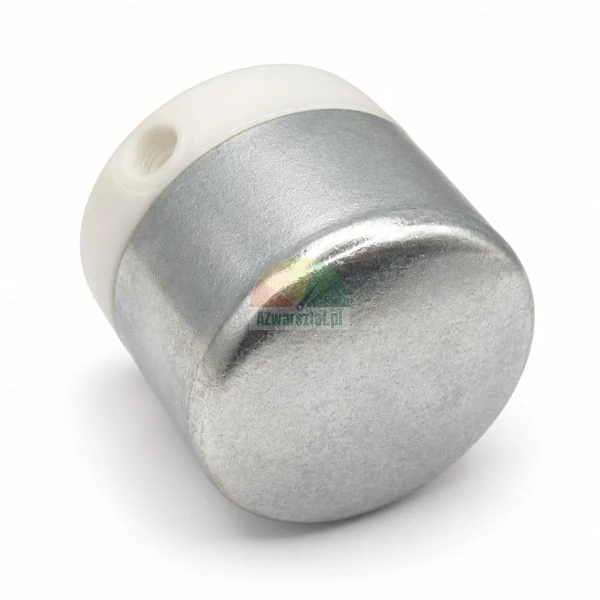

The actuator consists of two main components: a galvanised steel upper dome and a reinforced base made of technical plastic. The metal surface has been protected against corrosion with a special galvanic coating.

Functionality

The element provides precise control of movement in two planes - vertical and horizontal. The internal design guarantees smooth operation and even distribution of forces during lifting.

Mounting system

The product features a specially designed 7 mm deep mounting socket, which ensures stable seating in the lift structure. The 1/8" hydraulic connection allows for quick and tight connection of the hoses.

Application

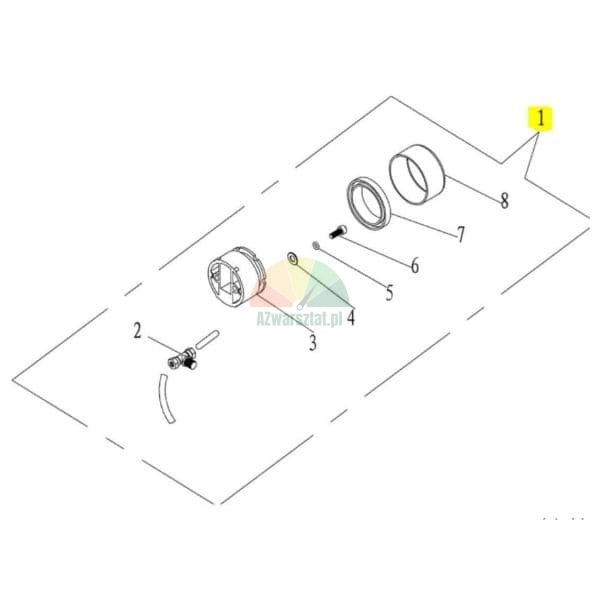

The actuator is an integral part of the hydraulic system of D-type jacks, appearing as component No. 1 in the assembly diagram. It guarantees reliable operation under conditions of intensive workshop use.
