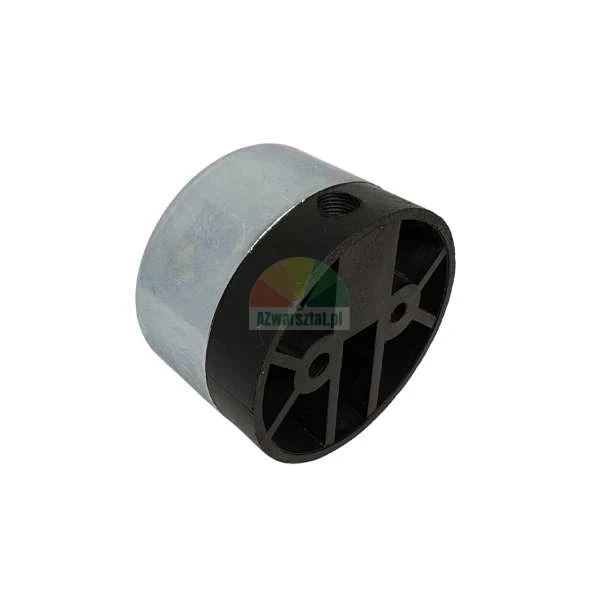

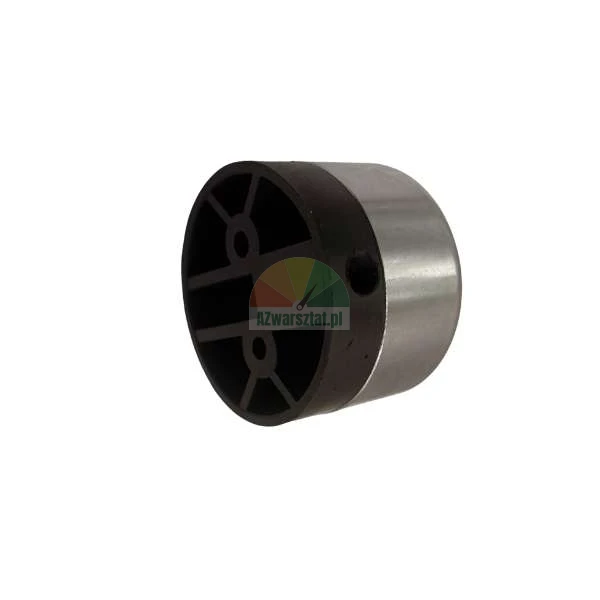

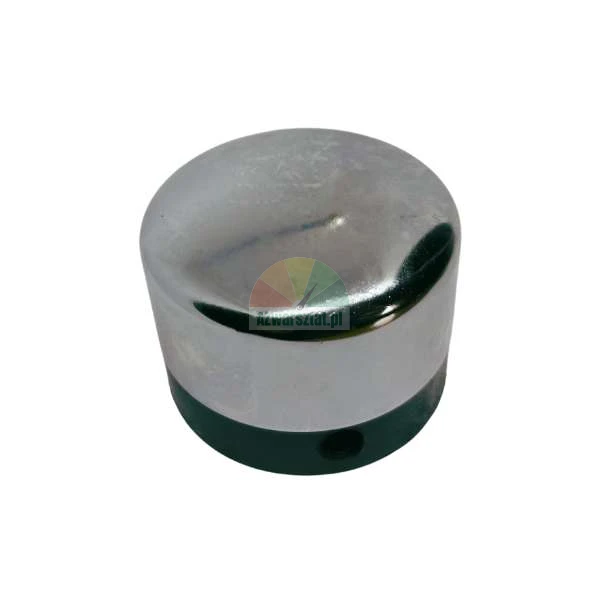

Complete vertical/horizontal (mushroom) actuator TYPE F

The complete pneumatic actuator of the "mushroom" type is a reliable spare part for wheel assemblers and wheel balancers. Thanks to its universal design, it can be used in both vertical and horizontal modes, making it an extremely practical solution for garages.

Compatible with many models from renowned manufacturers, including the M52, M72, M72Z. Ideal for applications where durability, precision and reliability are important.

Key features and benefits:

Versatility: Can be used vertically and horizontally.
Easy to install: Simple installation and removal for easy maintenance and service.
High durability: Made of robust materials to withstand intensive use.
Compact dimensions: Ideal for working in confined working spaces.

Technical specifications:

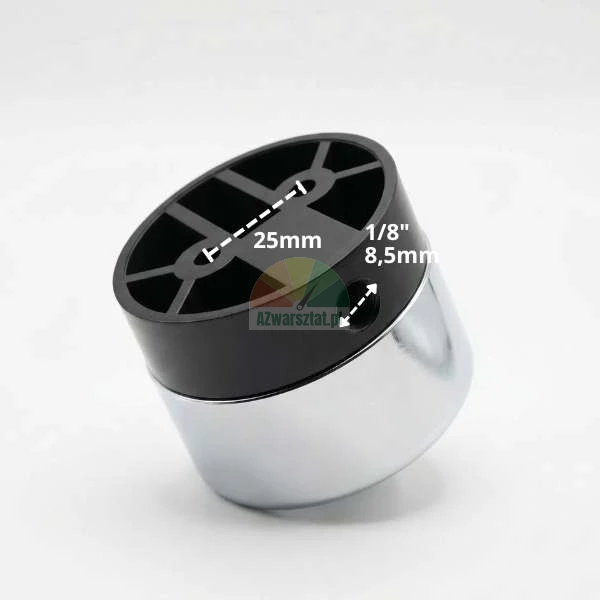

Outside diameter: 63 mm
Overall height: 50 mm
Height of working part (black): 15 mm
Air connection thread: 1/8" (8.5 mm)

Thanks to its design, the actuator provides high operating force while maintaining compact dimensions, which translates into efficient operation even in hard-to-reach areas.

Application:

Wheel assembly machines (vertical and horizontal)

Product code:

M-SILO-0006

By choosing our actuator, you are investing in a proven solution that will ensure a long service life and trouble-free operation of your workshop equipment.
