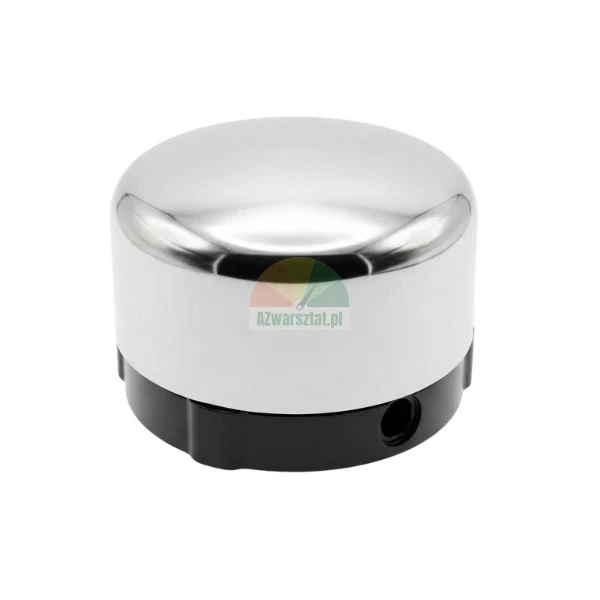

Complete Vertical/Horizontal (Mushroom) Actuator TYPE E
Specifications
The RDO0980-pl Complete Vertical/Horizontal Actuator is an advanced hydraulic component designed for professional E-type vehicle lifts. It is distinguished by its compact design and high-precision manufacturing.
Technical specifications

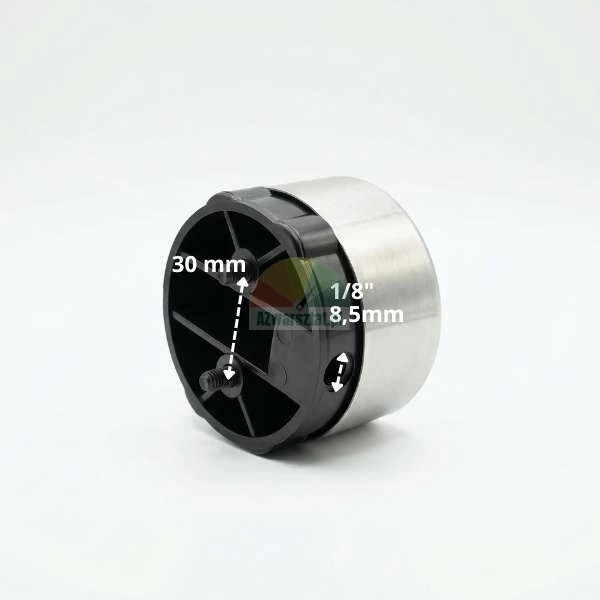

- Outside diameter: 69 mm
- Overall height: 50 mm
- Mounting screw spacing: 30 mm
- Hydraulic connection: 1/8" (8.5 mm)
Product features
Design

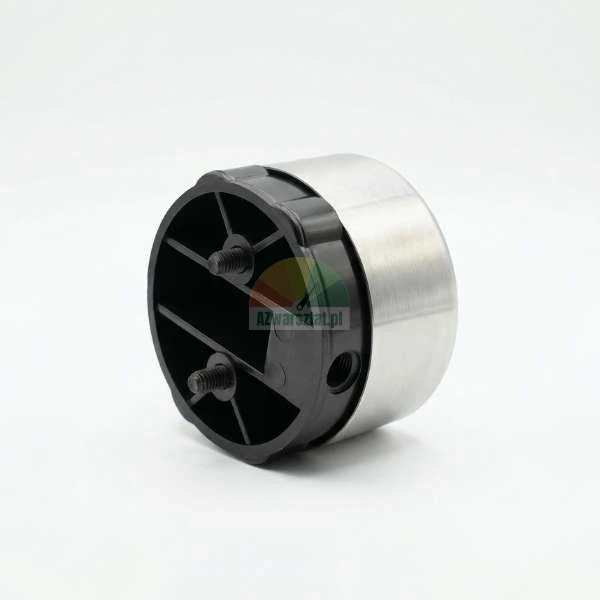

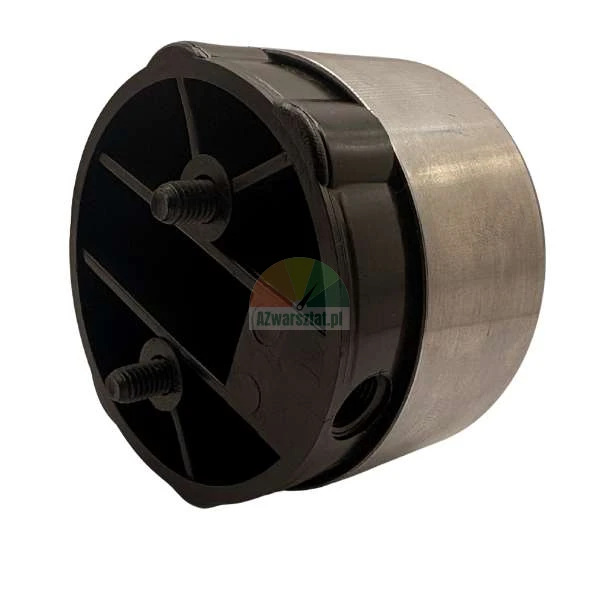

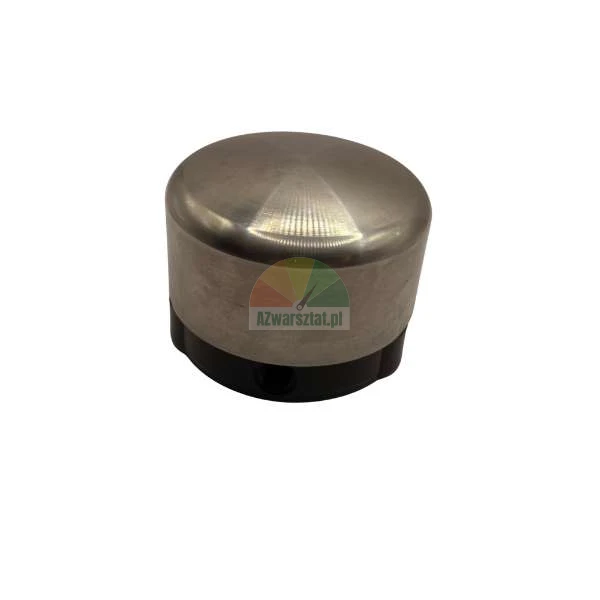

The actuator has a two-part construction consisting of a brushed metal top dome and a reinforced base made of high-grade engineering plastic. The top is made of surface-treated steel for increased wear resistance.
Innovative solutions
The component features an optimised guidance system that ensures smooth movement in both the vertical and horizontal planes. The specially designed internal profile minimises friction and extends the service life of the unit.
Mounting system
Two mounting bolts spaced 30 mm apart ensure stable attachment to the lift structure. A 1/8" hydraulic connection guarantees a tight and reliable connection to the hydraulic system.
Application

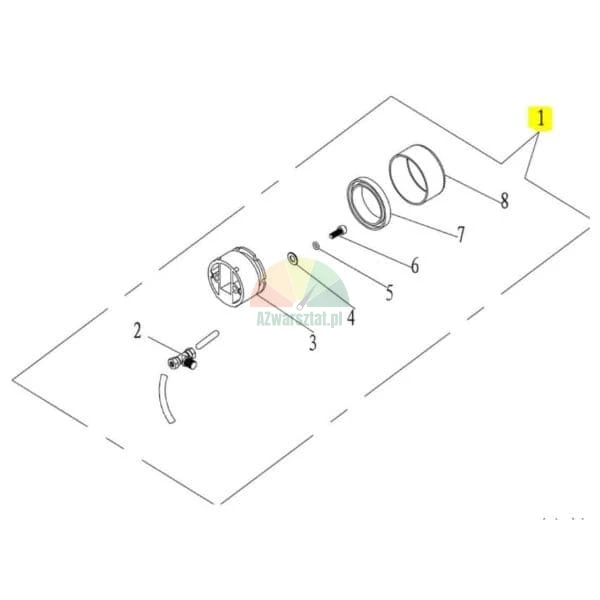

The actuator is a key component of the jack system, shown as position No. 1 on the assembly diagram. It is designed for intensive use under workshop conditions.
