Assembly locking arm actuator (mushroom) TYPE C

€32.67

Shipping costs are not included in the price.

Unavailable

Share

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

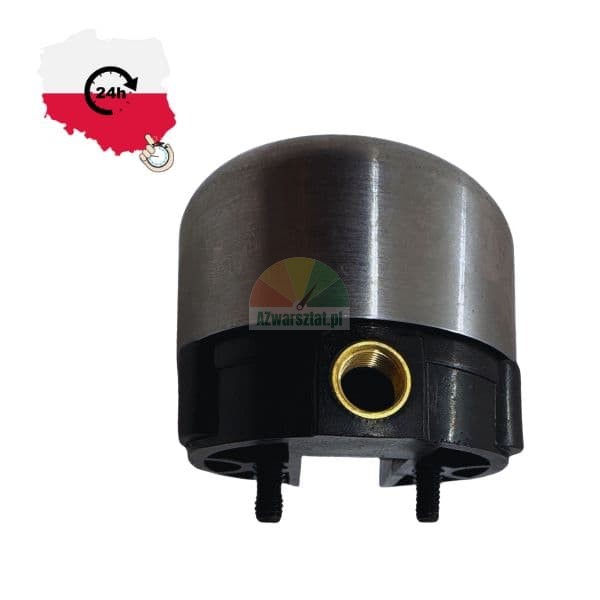

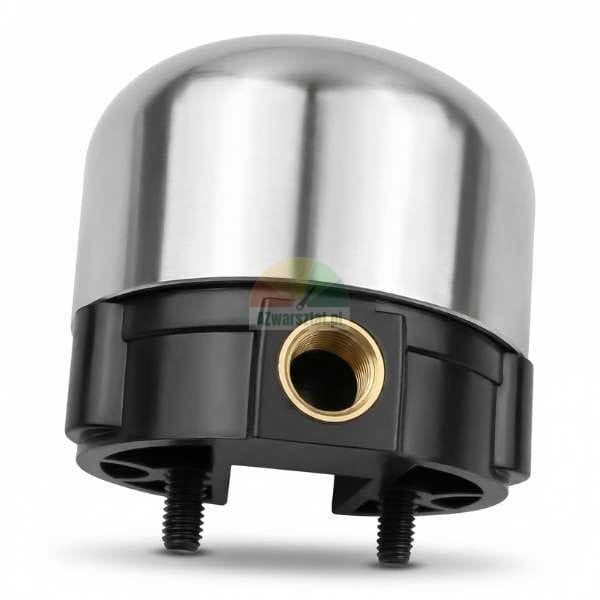

Mounting unit locking arm actuator (mushroom) TYPE C

The complete vertical/horizontal actuator M-SILO-0003 is a professional component of the hydraulic system, designed for reliable operation in assembly machines.

Technical specifications

Overall height: 53 mm
Outer diameter: 63 mm
Connection diameter: 8 mm
Mounting screw spacing (centre to centre): 30 mm

Product features

Design

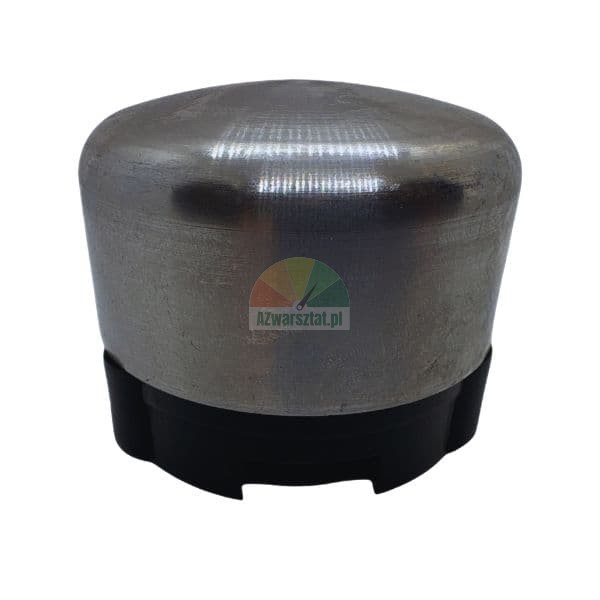

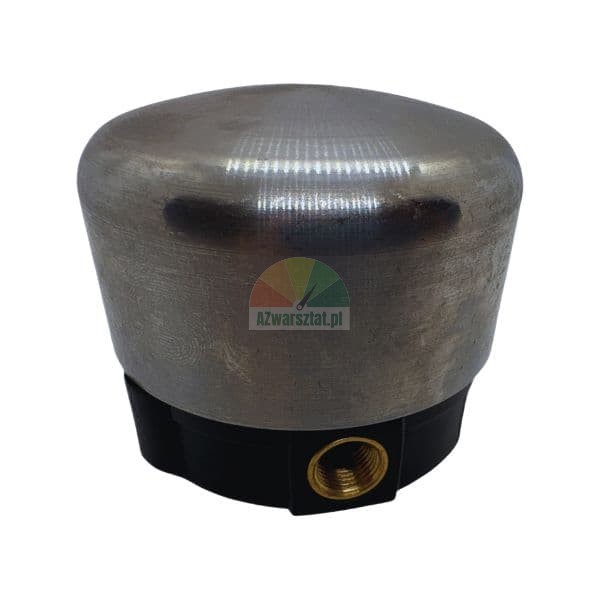

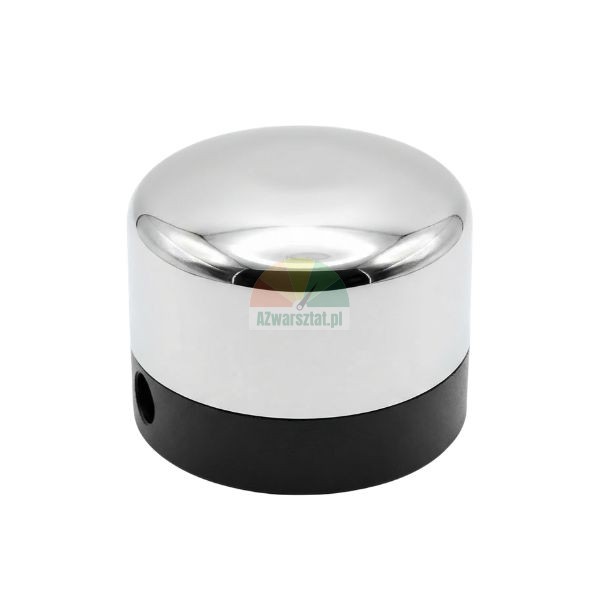

The actuator consists of two main parts: an upper dome made of high-quality steel and a lower base made of durable plastic. The brass hydraulic connection guarantees a tight and durable connection.

Functionality

The component plays a key role in the lifting system, enabling precise control of the platform's movement in the vertical and horizontal planes. The actuator's dual functionality (vertical/horizontal) increases its versatility of use.

Installation and maintenance

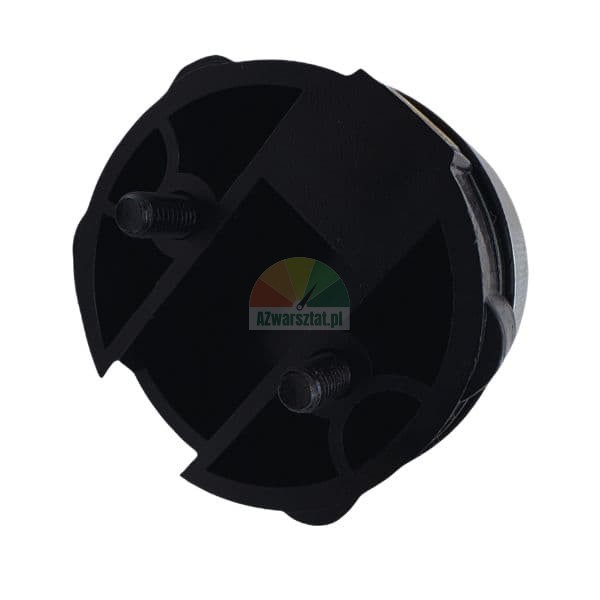

Installation of the actuator is simple with two mounting screws and a standard 8 mm hydraulic connection. The design allows for easy maintenance and possible replacement of seals.

Compatibility

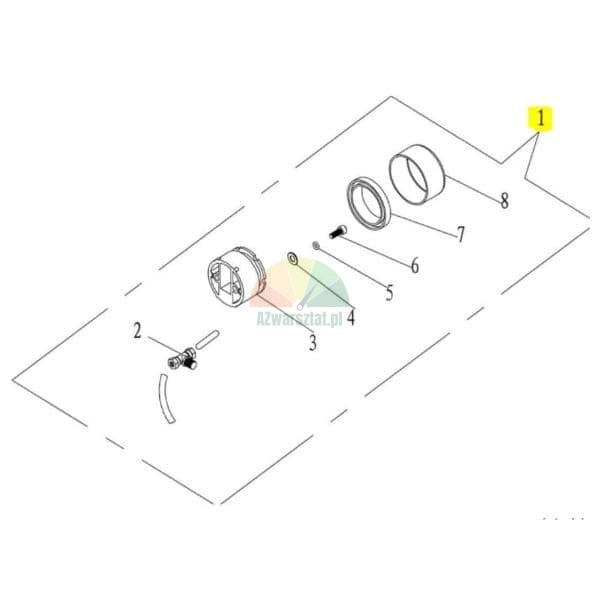

The actuator is fully compatible with C-type jacks, being component number 1 on the assembly diagram. It is compatible with the majority of professional jacks used in garages.
