Compression spring for 36mm hexagonal bar
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-SPRE-0017
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

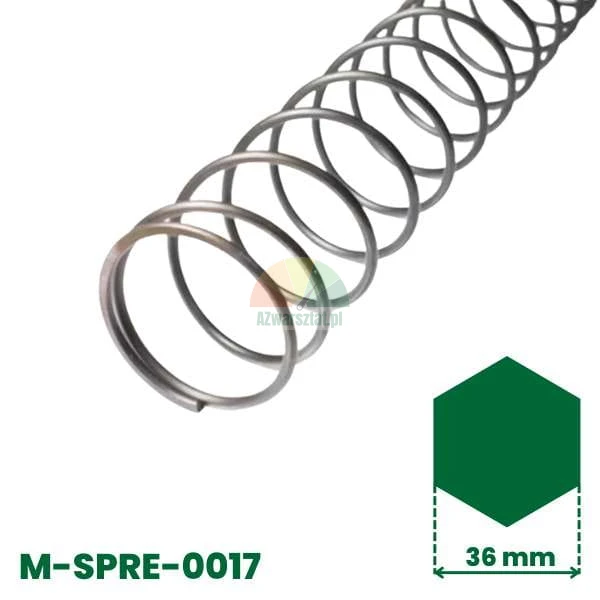

Compression spring for 36 mm hexagonal rod

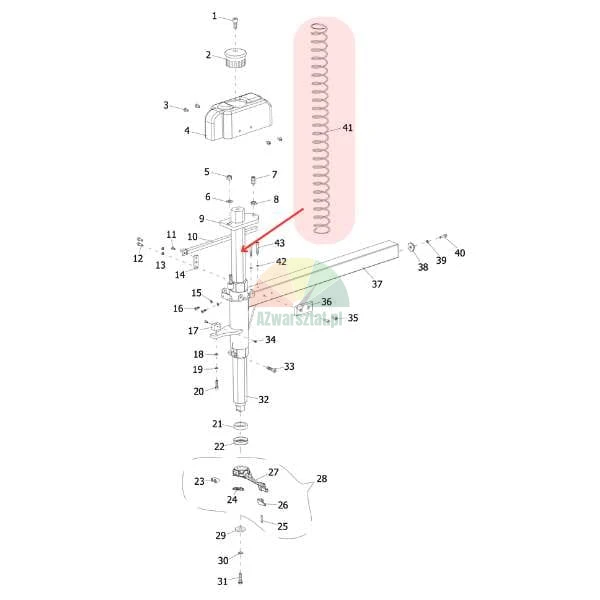

The compression spring for the 36 mm hexagonal rod is a key component of tyre changers and wheel balancers, ensuring stability and precision in operation. Made from high quality spring steel, it guarantees adequate pressure and durability during use.

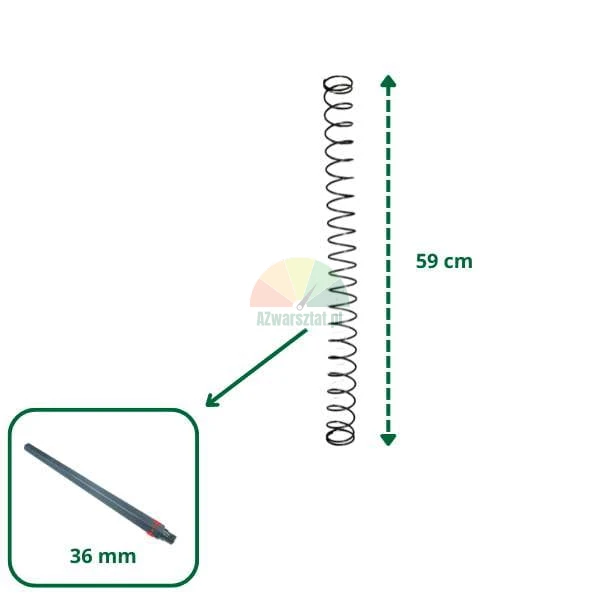

The product has been designed to work with hexagonal rods with a diameter of 36 mm, ensuring optimum stability and operational reliability. The inner diameter of the spring is 44 mm and the thickness of the steel wire is 3 mm. The overall length of the spring is approximately 59 cm.
Technical specifications:
- Mounting rod diameter: 36 mm
- Inner spring diameter: 44 mm
- Steel wire thickness: 3 mm
- Overall length: approx. 59 cm
- Material: spring steel
- Application: vertical clamping for mounting heads
The spring is a key component of the clamping mechanism, which influences the smoothness and efficiency of the device. Its suitable elasticity and strength ensure a long service life and reliability in daily use.
Application:
The spring is used in tyre changers, where it is responsible for the pressure on the mounting arm. Thanks to its precise design, it is suitable for many models of tyre changers and wheel balancers — it is worth checking compatibility with your machine before purchasing.
Easy assembly and disassembly makes maintenance and replacement easy, allowing you to quickly restore full functionality to your machine.
Purchasing a clamping spring for a 36 mm hexagonal rod from our online shop azworkshop.eu is a guarantee of the high quality and reliability needed to maintain optimum performance of your machines.
