Tire Changer Rotation Switch Spring 30mm

The rotation switch spring is an essential component of the control mechanism in tire changers. It is responsible for the correct operation of the turntable rotation direction switch and ensures smooth, precise, and safe operation of the machine.

Universal spring – fits many machine models available on the market.

Technical specifications:

Outer diameter: 30 mm
Inner diameter: 23 mm
Spring height: 14 mm
Arm length: 7 cm
Wire diameter: 3.7 mm
Material: heavy-duty spring steel
Durability: suitable for intensive use
Compatibility: fits a wide range of models from various manufacturers

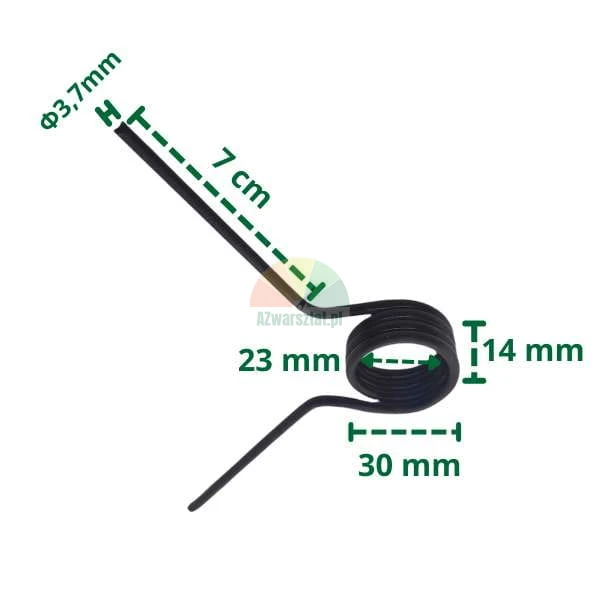

Tire changer rotation switch spring 30mm – dimensions: outer diameter 30 mm, inner diameter 23 mm, height 14 mm, arm length 7 cm, wire diameter 3.7 mm

Image: Tire changer rotation switch spring -
Outer diameter: 30 mm, Inner diameter: 23 mm, Height: 14 mm, Arm length: 7 cm, Wire diameter: 3.7 mm

High-quality spring steel guarantees a long service life and resistance to repeated cycles, even under harsh workshop conditions.

Replacing the rotation switch spring is a quick and effective way to restore full functionality and avoid costly downtime. The product is brand new, available from stock, and comes with a warranty.

Order today and ensure the reliability of your machine! If you have any doubts about compatibility, please contact our technical department.

See the product in action

Watch a short presentation to learn how to install this product in the machine.
