Compression spring for 41mm hexagonal bar
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-SPRE-0018
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

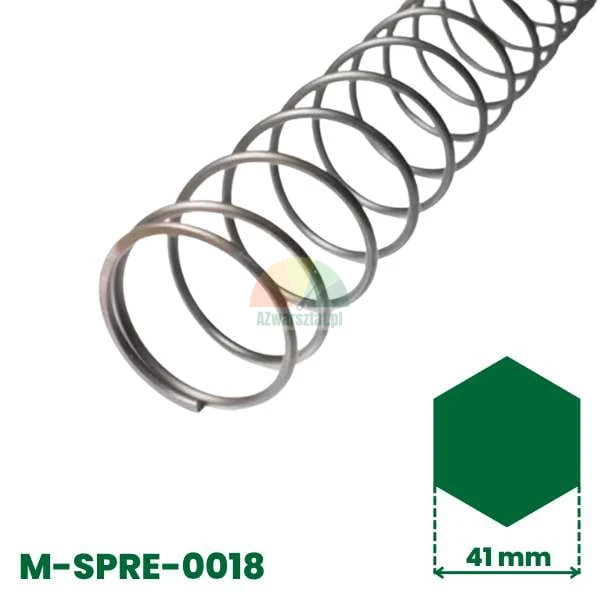

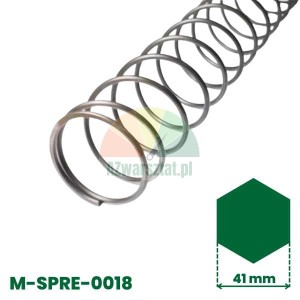

Compression spring for 41 mm hexagonal rod
The compression spring for the 41 mm hexagonal rod is a key component used on tyre changers. It provides the pressure required to maintain the vertical position of the mounting head.

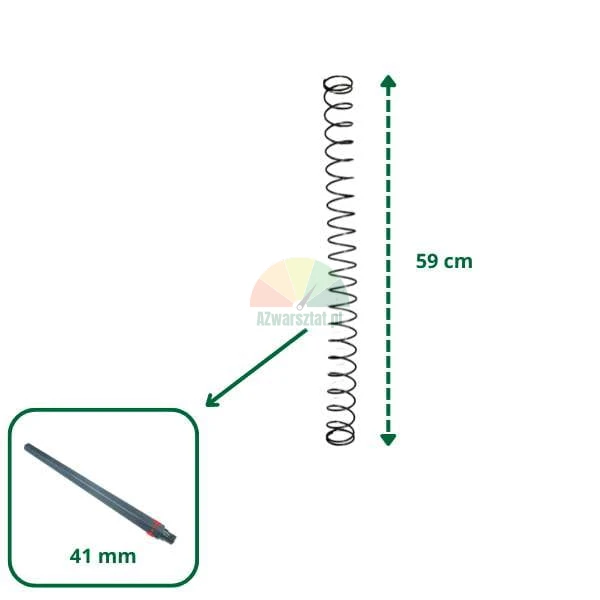

Compatible with a 41 mm hexagonal rod with a flat width of 41 mm, ensuring a perfect fit to the mounting unit mechanism. The inner diameter of the spring is 49 mm and the steel wire thickness is 3.5 mm, ensuring high strength and resistance to deformation.
Technical specifications:
- Size: 41 mm (hexagonal rod flat width)
- Internal diameter: 49 mm
- Steel wire thickness: 3.5 mm
- Material: spring steel
- Deformation resistance: High
- Application: Tyre changers
Thanks to its precision manufacturing and high-quality materials, the compression spring ensures long-lasting and reliable operation of the unit, minimising the risk of failure and increasing efficiency.
Application:

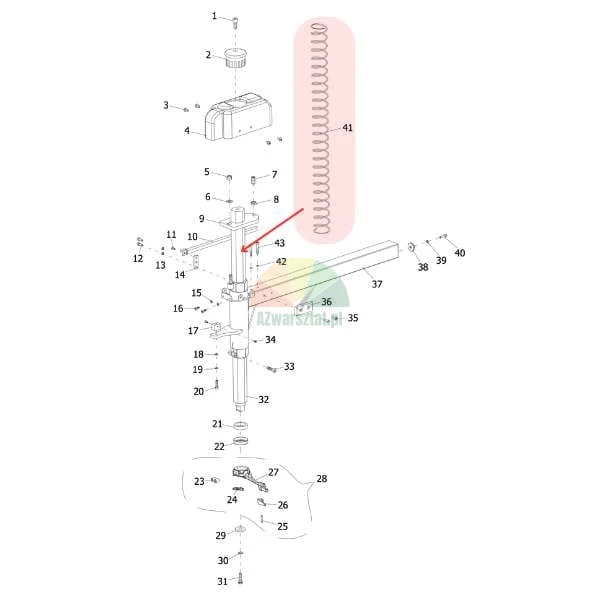

The spring is located in the pressure mechanism of the tyre changer and is responsible for the correct operation of the mounting arm. Replacing the spring with a new one restores full functionality to the mounting arm and ensures smooth operation of the unit.
Benefits of use:
- Increased stability and safety during operation
- High strength and durability
- Correct vertical position of the mounting head
- Optimisation of equipment operation
Contact us for more information or to order a compression spring for a 41 mm hexagonal rod. Our team will be happy to help you choose the best solution for your needs.
