Directional Change Spring 29mm
The 29mm directional change spring is an indispensable component in tyre changer mechanisms, ensuring precise operation and machine stability. Thanks to its robust construction, it provides durability and reliability in daily use.
Technical Specifications
- Outer diameter: 29 mm
- Wire diameter: 3.6 mm
- Height: 15 mm
- Distance between arms: 22 mm
- Arm length: 6.5 mm

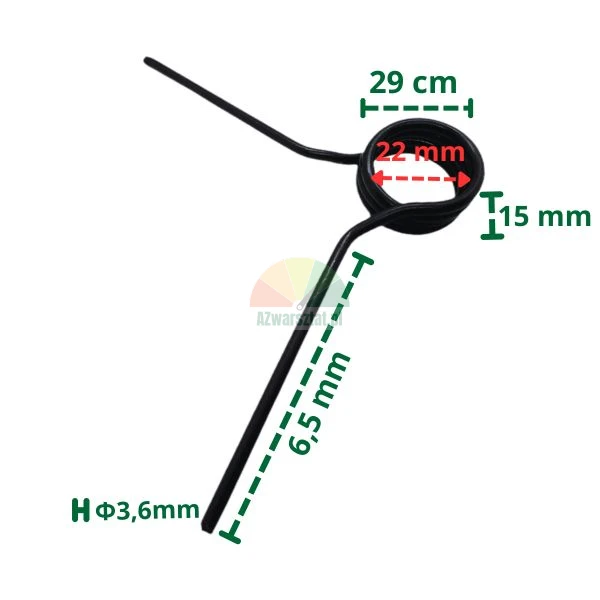

The dimensions of the spring are shown in the diagram below:
Application
The 29mm directional change spring is used in tyre changer mechanisms, where it is responsible for reversing the machine's operating direction. Its strength and elasticity ensure efficient and trouble-free operation.
Product Features
- High-quality material: Made of deformation-resistant spring steel.
- Precise workmanship: Ensures a perfect fit to the mechanism.
- Durability: Designed for long-term use.
Installation
Installation of the spring is quick and easy. Simply position it correctly on the mechanism in accordance with the device's technical documentation to ensure that the system functions correctly.
Compatibility

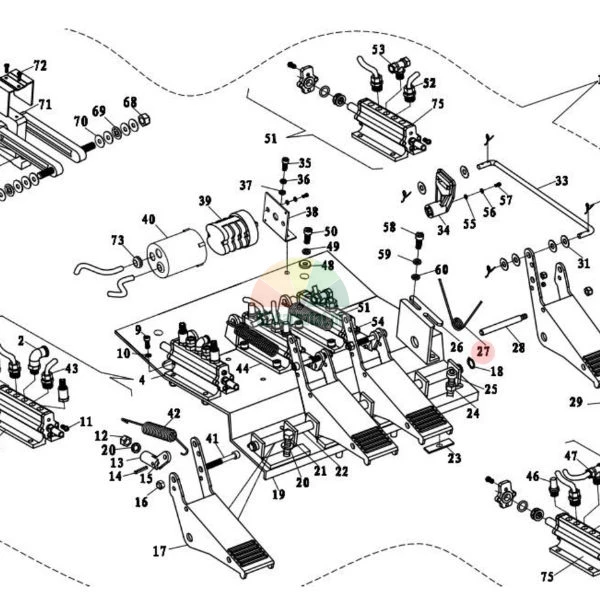

The 29mm directional change spring is compatible with a number of tyre changer models, including the part marked as No. 27 in the diagram:
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
