Type C spring plate (left) - double-bent

Are you looking for reliable and proven spare parts to equip your workshop? At azworkshop.eu we offer the highest quality components for vehicle lifts, tyre changers and wheel balancers. The TYPE C (left) spring plate presented here is a precisely designed, double-bent mechanical component that ensures the proper functioning of tyre service machines.

High strength and precision: The use of a suitable metal alloy and careful profiling guarantee optimum resilience and long-lasting, trouble-free operation even under heavy loads in professional vehicle workshops.

Technical data and detailed dimensions

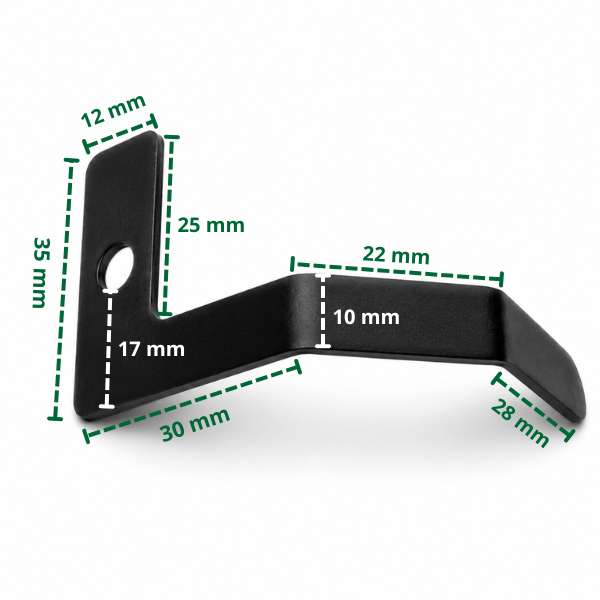

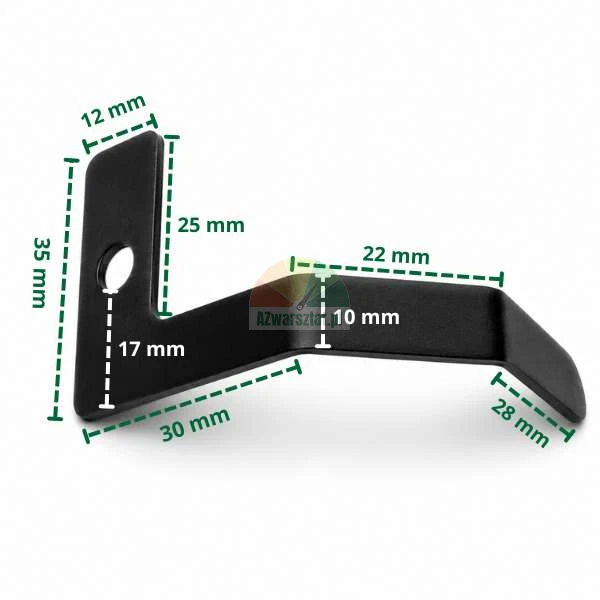

To make it easier to select the correct part for your machine, the exact dimensions of the plate are provided below (according to the diagram):

Version: TYPE C (left), double-bent
Total height of the mounting element: 35 mm
Length of inner vertical edge: 25 mm
Width of mounting element (at the hole): 12 mm
Position of fixing hole: 17 mm (distance from centre of hole to bottom bend)
Length of first diagonal arm: 30 mm
Length of flat centre section: 22 mm
Width of spring profile: 10 mm
Length of end bend (stop): 28 mm

Application

The double-bent C-type design is most often used in pedal mechanisms, switches or control systems for workshop machinery. It works perfectly as a replacement for worn plates in popular tyre changers and other service equipment requiring reliable operation of spring systems.

When choosing parts at azworkshop.eu, you can be sure that you are getting a proven product that will perfectly replace the original component. Ensure the continuity of your equipment and trust the experts in workshop equipment!

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl
