Tyre changer speed switch connector (6 mm)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-LACZ-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

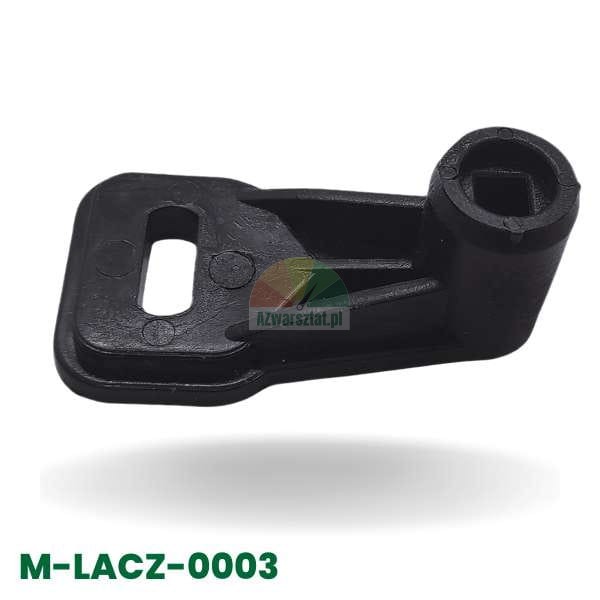

Tire changer speed switch connector (6mm square)
Are you looking for tried-and-tested, durable spare parts for your workshop equipment? At azwarsztat.pl, we make sure your machines run flawlessly. We present the speed switch connector for the tyre changer table – a crucial component of the control system, responsible for the smooth and reliable transmission of movement from the foot pedal to the main electrical (cam-operated) switch.

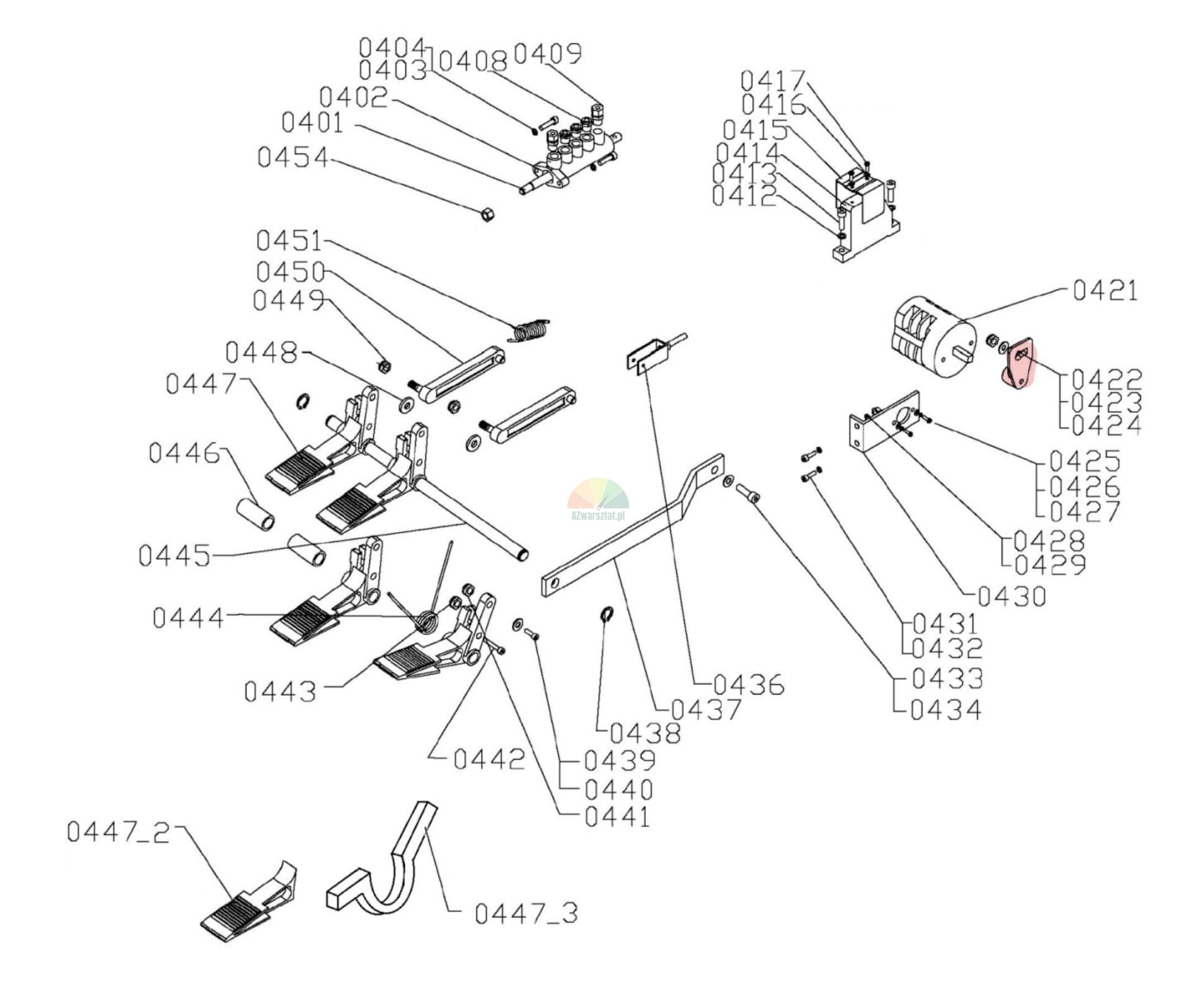

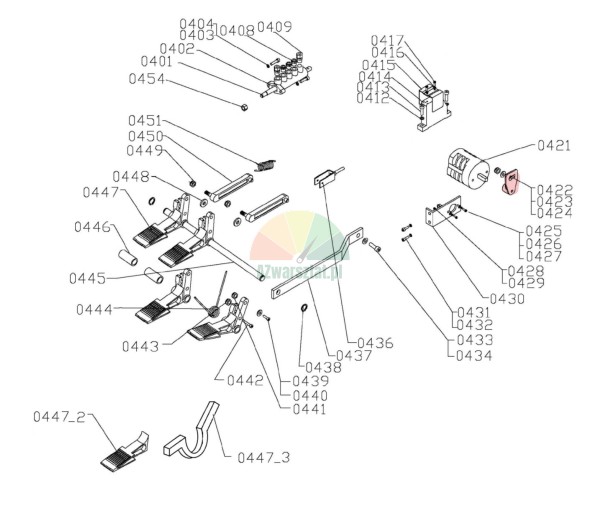

Application and function in the machine: As illustrated in the attached schematic diagram (marked component), this unassuming connector forms a direct mechanical link between the pedal block cable and the square spindle of the rotation switch. Wear or breakage of this component is the most common cause of the assembly table failing to respond when the pedal is pressed.

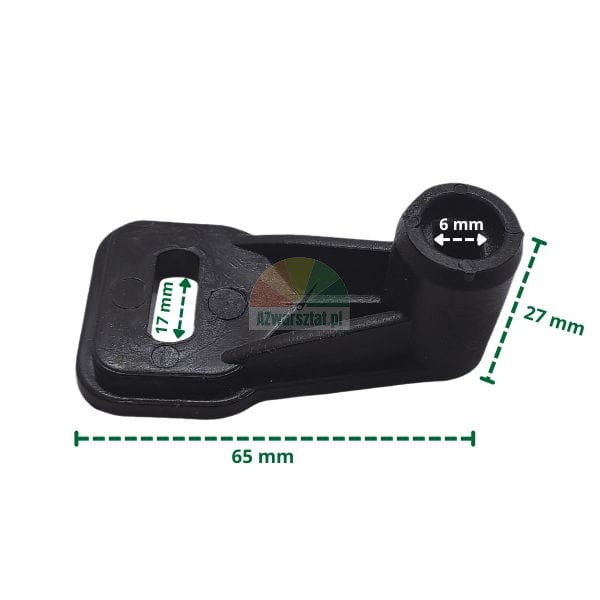

Detailed dimensions and technical specifications
To ensure 100% compatibility, please compare the dimensions of your old part with the specifications below before purchasing. Our product has been precision-manufactured to the following specifications:
- Mounting hole for the switch spindle (square): 6 mm x 6 mm
- Total length of the connector: 65.5 mm
- Height of the mounting sleeve: 27 mm
- Internal length of the longitudinal hole (the ‘slot’ for the cable pull pin): 17.5 mm
This part is made from durable, hard plastic, which is characterised by high resistance to abrasion and cracking – a crucial feature for frequent, intensive use in a professional tyre repair workshop.
Why choose to shop at azwarsztat.pl?
As experts in the workshop equipment sector, we supply only the highest-quality parts, which guarantee trouble-free operation and minimise downtime. Play it safe – choose a tried-and-tested torque coupler and restore your machine to full working order in a matter of moments!
