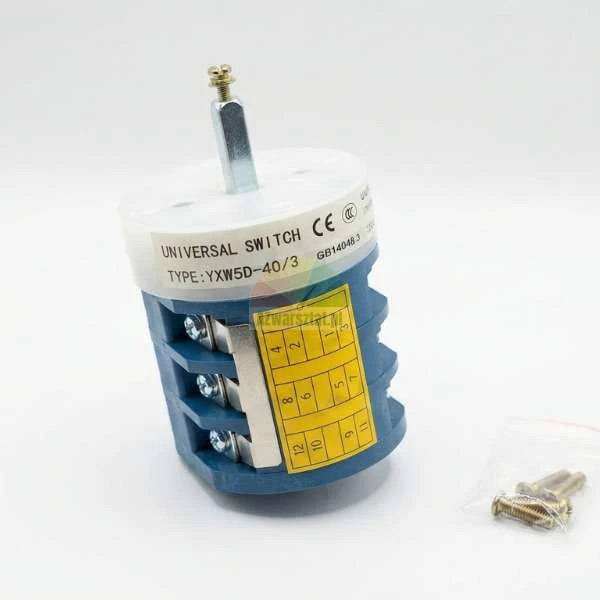

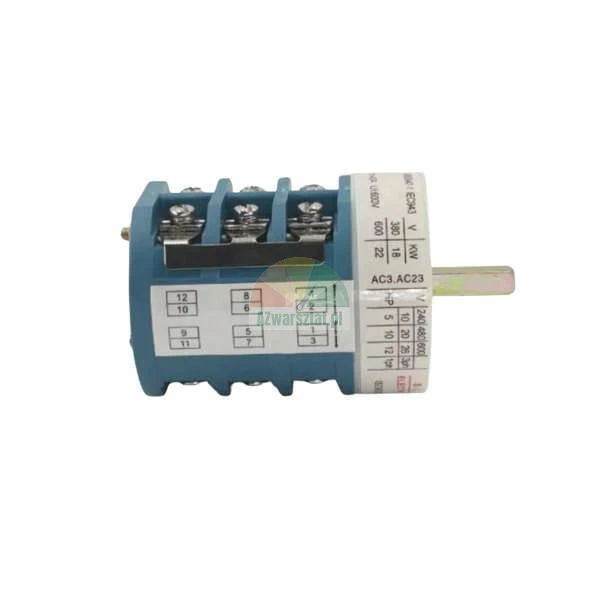

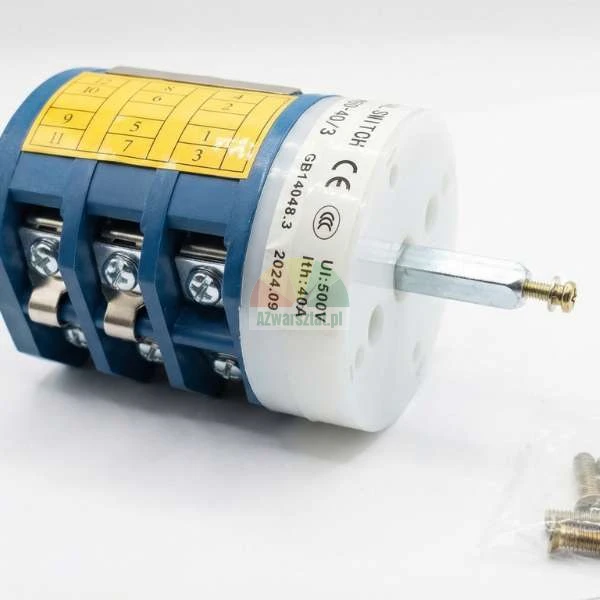

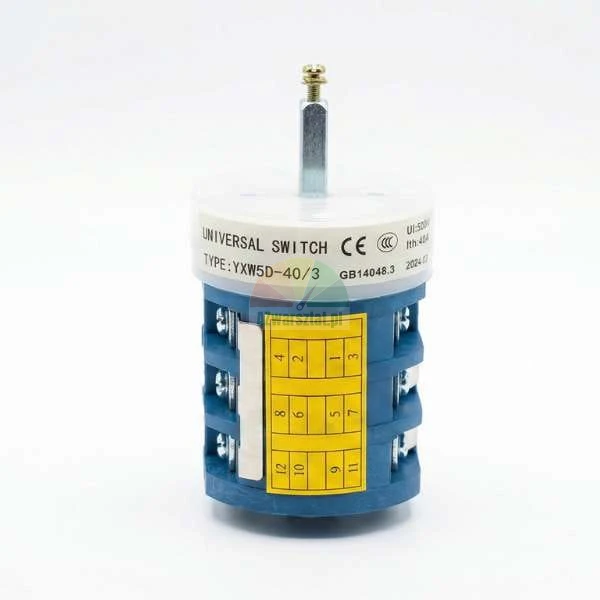

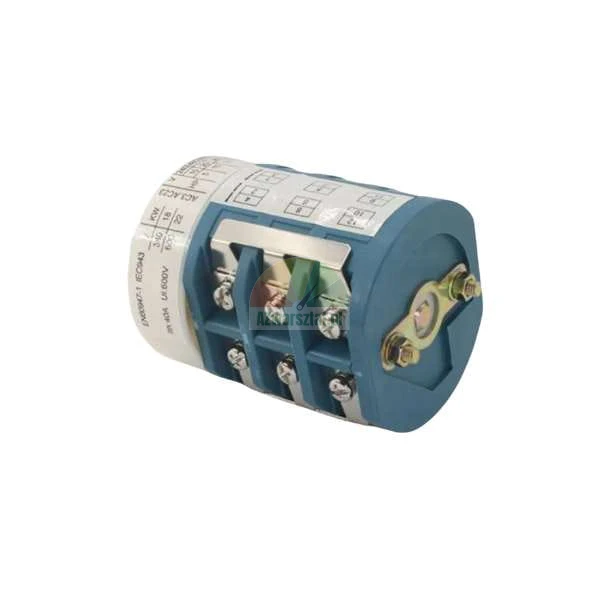

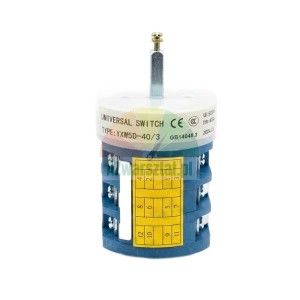

Rotary switch (380V / 18kW / 40A / 3PH) – for single-speed tyre changers
The rotary switch is a reliable control element for single-speed tyre changers. It enables the rotation direction of the turntable to be changed easily and safely, which significantly improves wheel handling in the workshop.
Compatible with single-speed machines only. Not compatible with two-speed units!
Key features:
- Controls the rotation direction of the turntable
- High durability and resistance to workshop conditions
- Compact dimensions for easy fitting
- Housing made of durable plastic
Technical specifications:
- Rated voltage: 220–380V
- Maximum power: 18kW
- Rated current: 40A
- Number of phases: 3 (three-phase)
- Degree of protection: IP54 (dust and splash proof)

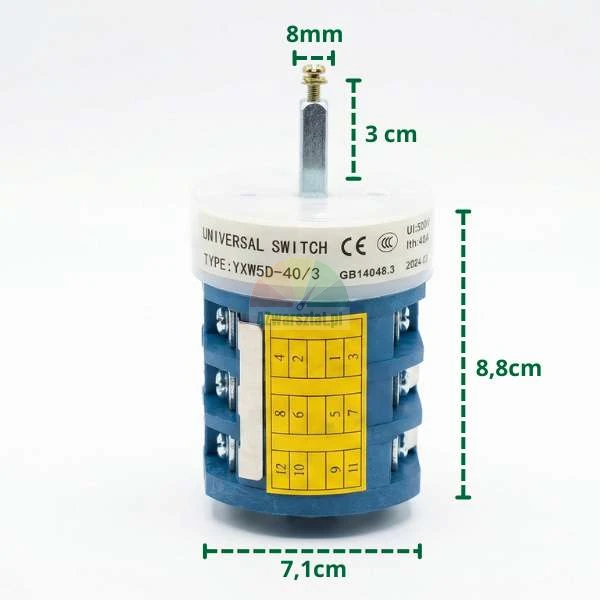

Dimensions:
- Overall length: 8.8 cm
- Body diameter: 7.1 cm
- Shaft length: 3 cm
- Shaft diameter: 8 mm
Thanks to its robust construction and high resistance to mechanical damage, the switch is ideal for use in heavily used workshops.
Application:
Product designed for single-speed tyre changers. Ideal as a spare part for servicing or upgrading the machine.
Indispensable in professional workshops, where reliability, safety and precision count.
Product code: M-PRZE-0001
Our range includes a wide selection of spare parts for tyre changers, wheel balancers and vehicle lifts. Check out our other products and choose the solution to suit your workshop!
