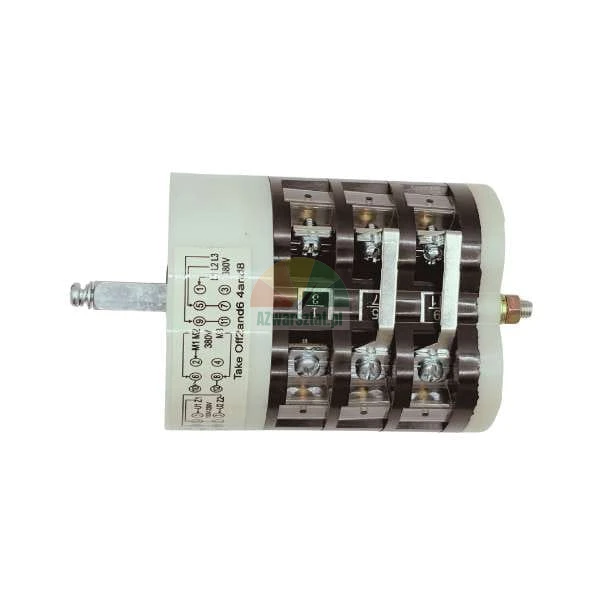

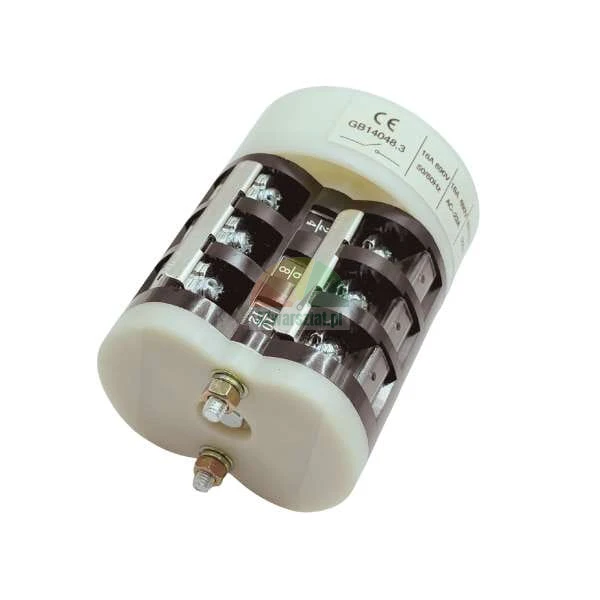

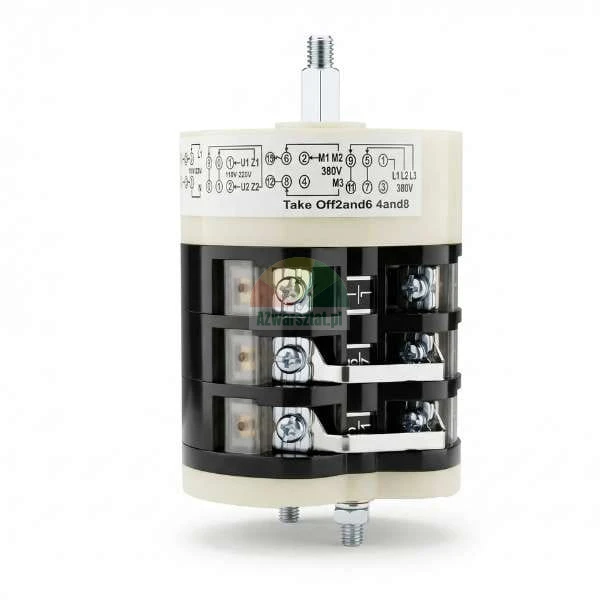

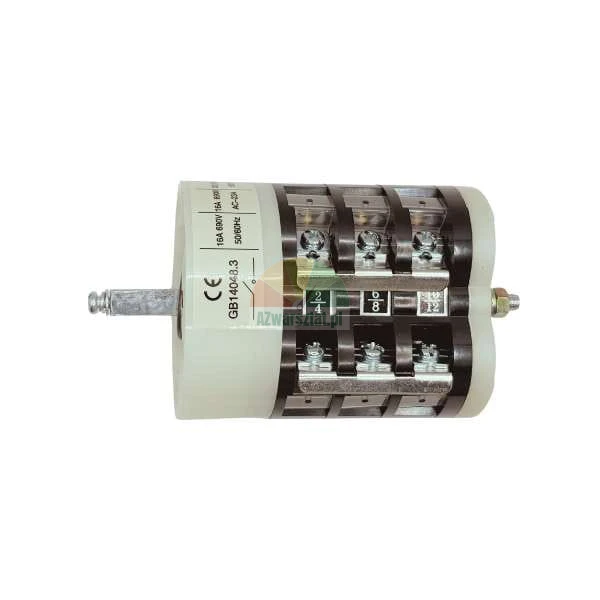

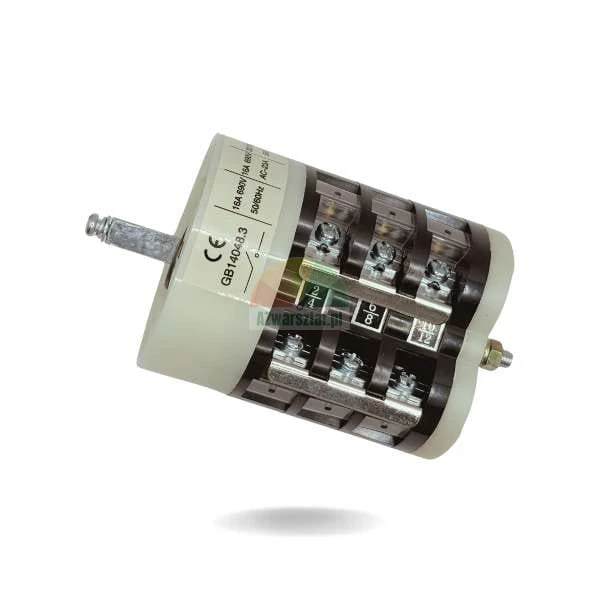

GB14048 tyre changer rotary switch – Reliable table control
We offer a high-quality rotary switch (reverser) designed for tyre changers. It is a key component of the machine's electrical system, responsible for controlling the direction of rotation of the mounting table motor. The GB14048.3 model features a robust design and high load resistance, which guarantees long and trouble-free operation in workshop conditions.
Application and compatibility

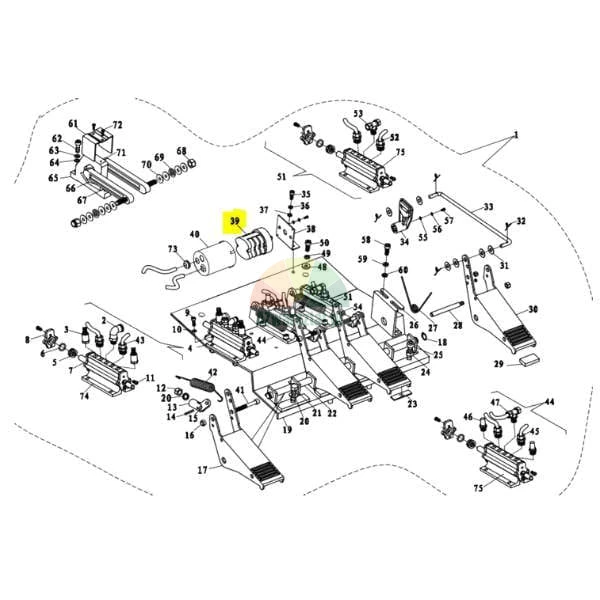

This switch is used in many popular tyre changer models available on the market. In technical diagrams, it is often marked as part of the control pedal system (shown as item no. 39 in the attached diagram). Thanks to the standard dimensions of the shaft and mounting holes, it is an ideal replacement part in the event of failure of the original component.

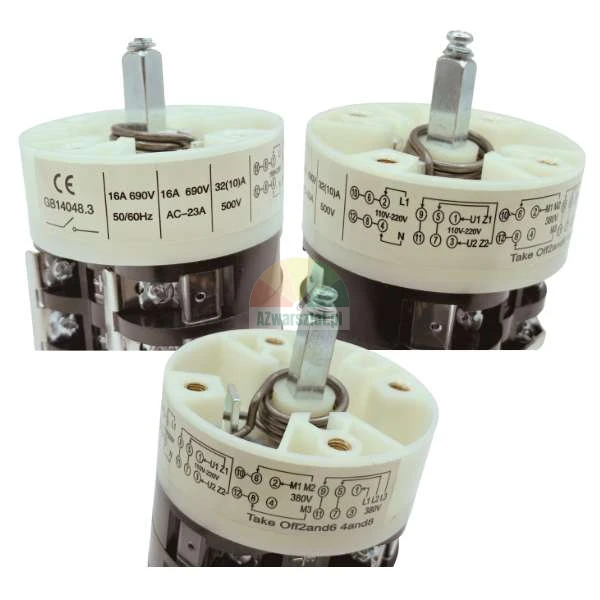

Electrical parameters:
Model: GB14048.3
Function: Change of rotation direction (left/right)

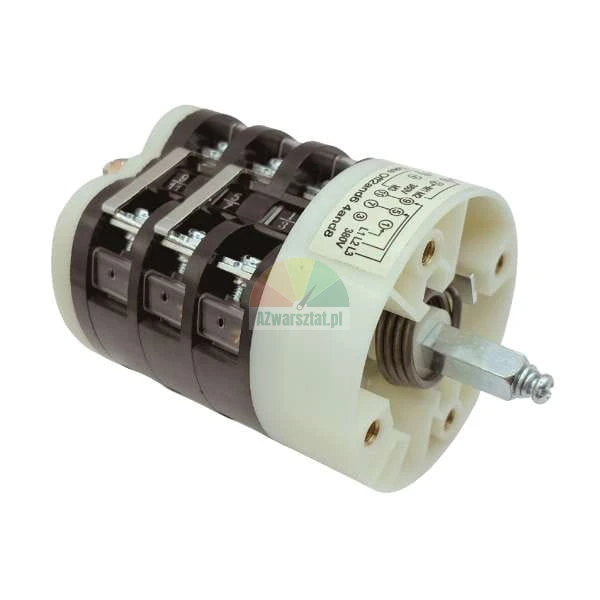

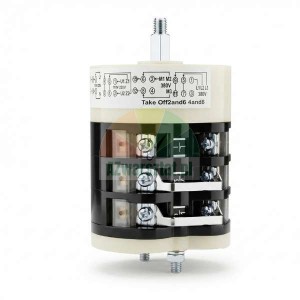

The part is equipped with durable contacts and a square metal pin, which ensures a secure connection to the pedal cam mechanism. Before purchasing, we recommend verifying the dimensions of the worn switch against the technical data below.

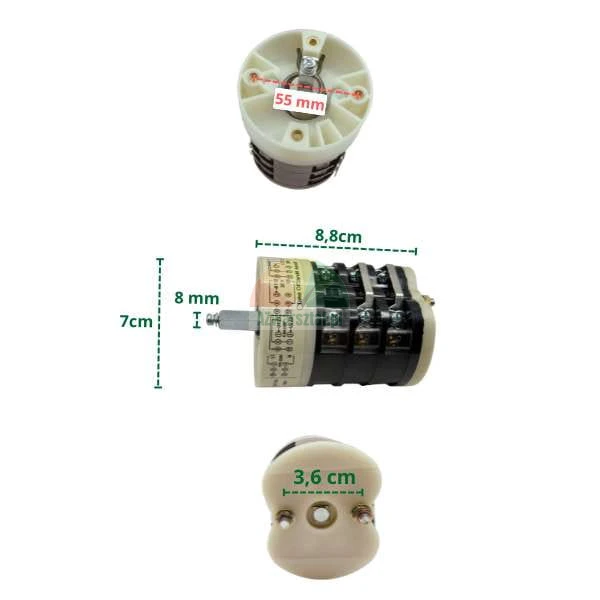

Detailed dimensions
Mounting dimensions:
Control
pin: 8 mm square
Mounting screw spacing: 36 mm
Front screw spacing: 55
mm
Body length (working part): approx. 88
mm
Total height (with connections): approx. 70 mm
The product ensures safe and precise control of the tyre changer's operation, restoring the device to full functionality.
