Tyre changer speed switch connector (8mm)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-LACZ-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Tyre Changer Speed Switch Link (8 mm)

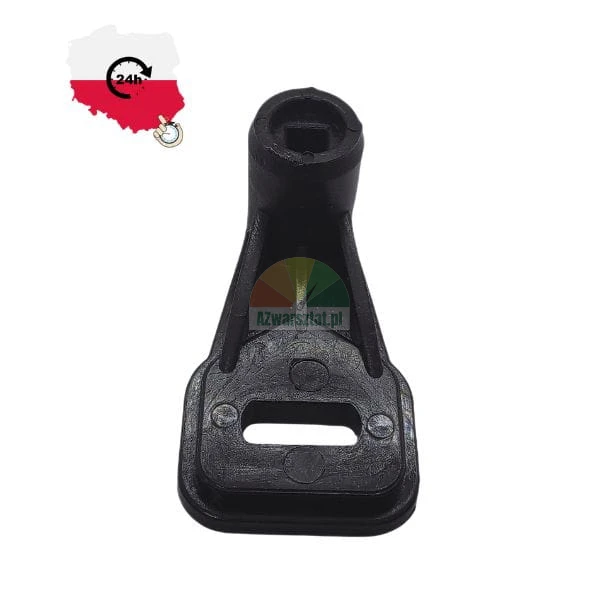

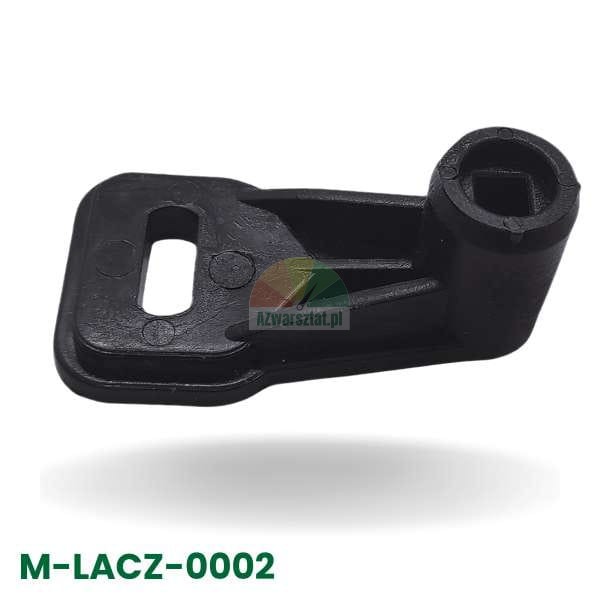

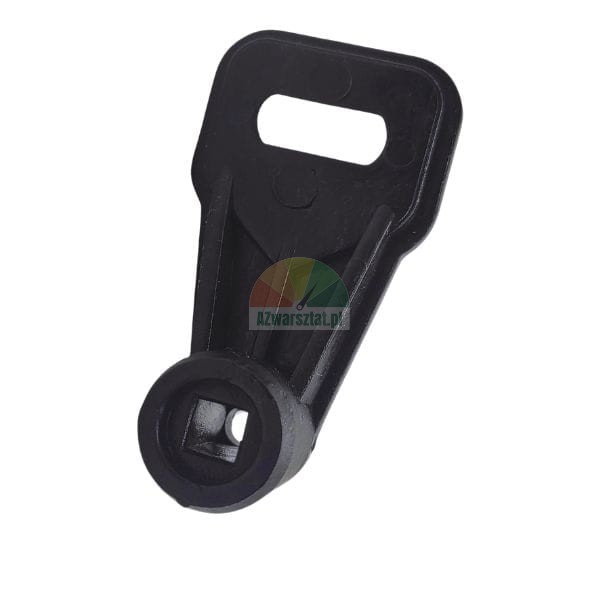

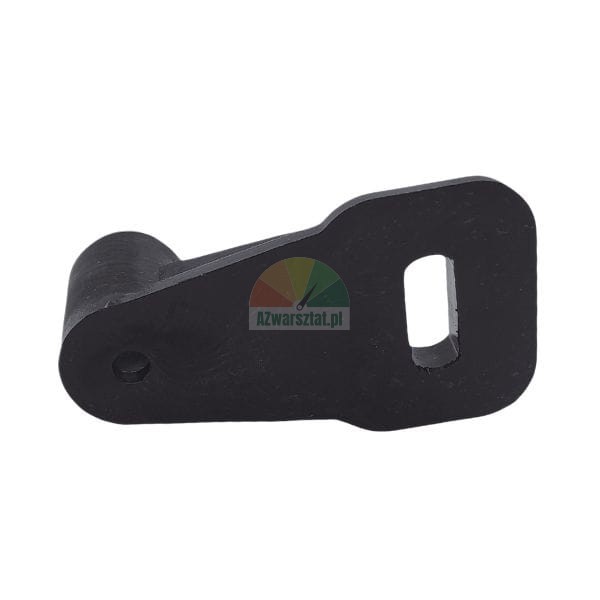

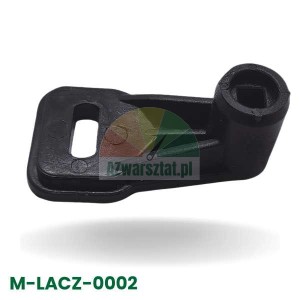

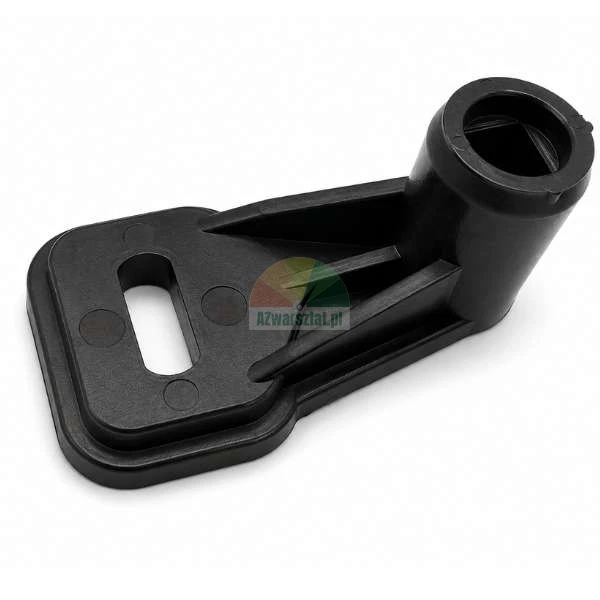

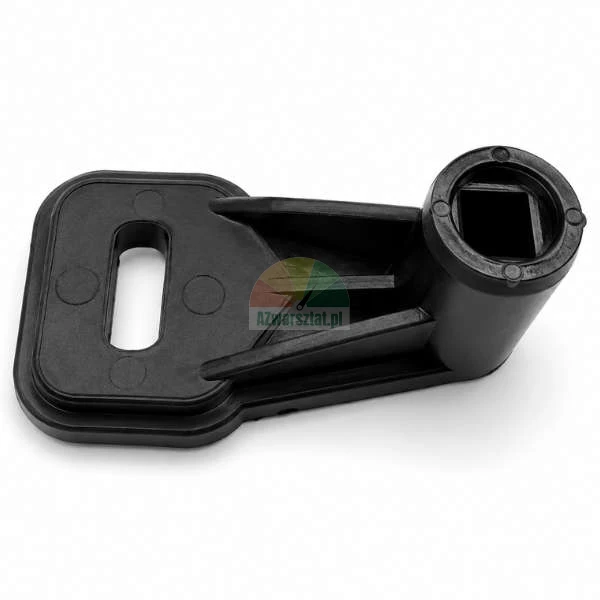

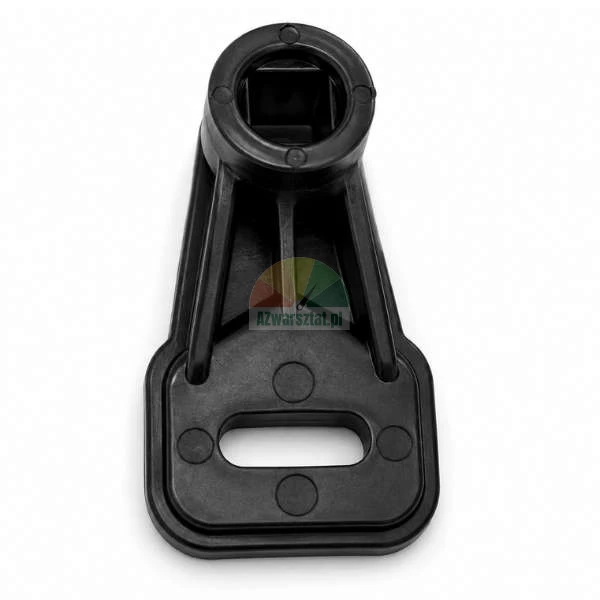

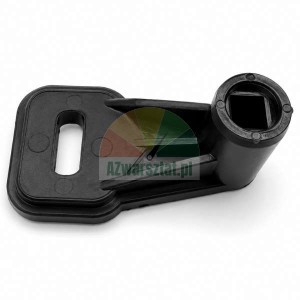

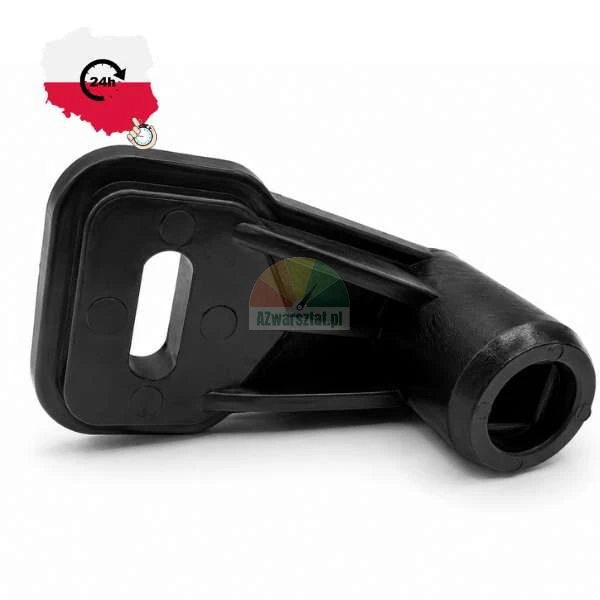

A high-quality rotary switch coupler designed for professional tyre changers. This component is a crucial element in the mechanism that transmits motion between the pedal assembly and the rotary switch on the tyre-changing table.

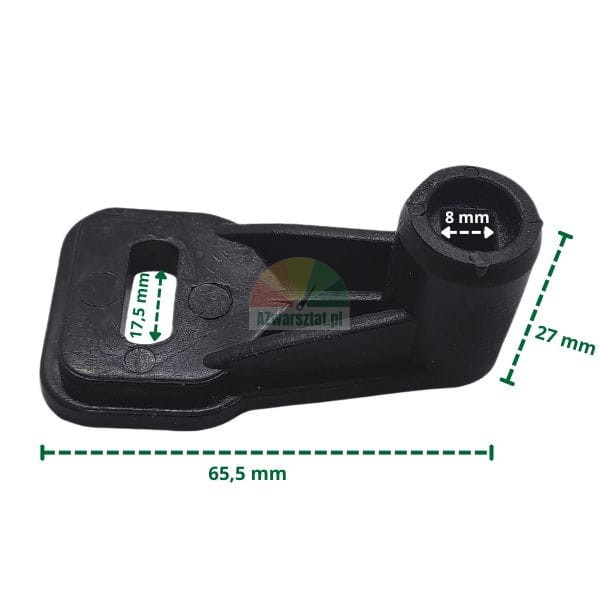

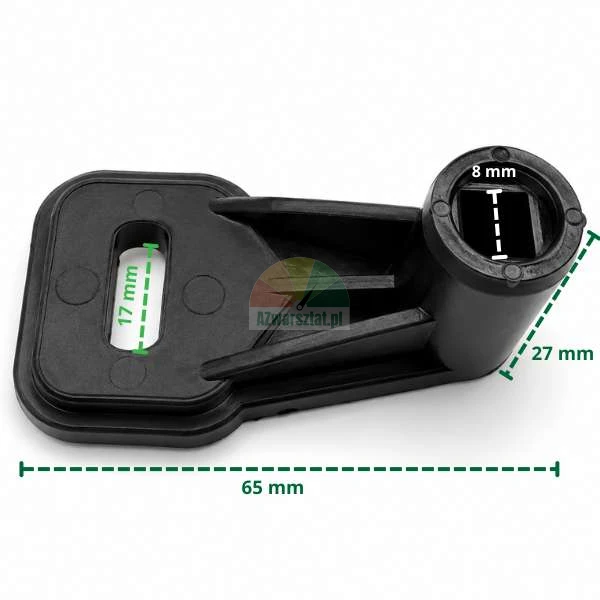

Specifications and exact dimensions
Thanks to its precise manufacture, the component ensures trouble-free installation. The key product parameters are:
- Overall length: 65 mm
- Square hole dimension (for the switch spindle): 8 mm
- Height of the mounting sleeve: 27 mm
- Length of the longitudinal slot (‘bean-shaped’): 17 mm
Service tip: If you have noticed problems with the smooth change of the table’s rotation direction (the machine does not respond when the pedal is pressed or there is play), check the condition of the switch first. Replacing this worn component often restores the machine’s full responsiveness.
Application on the machine diagram

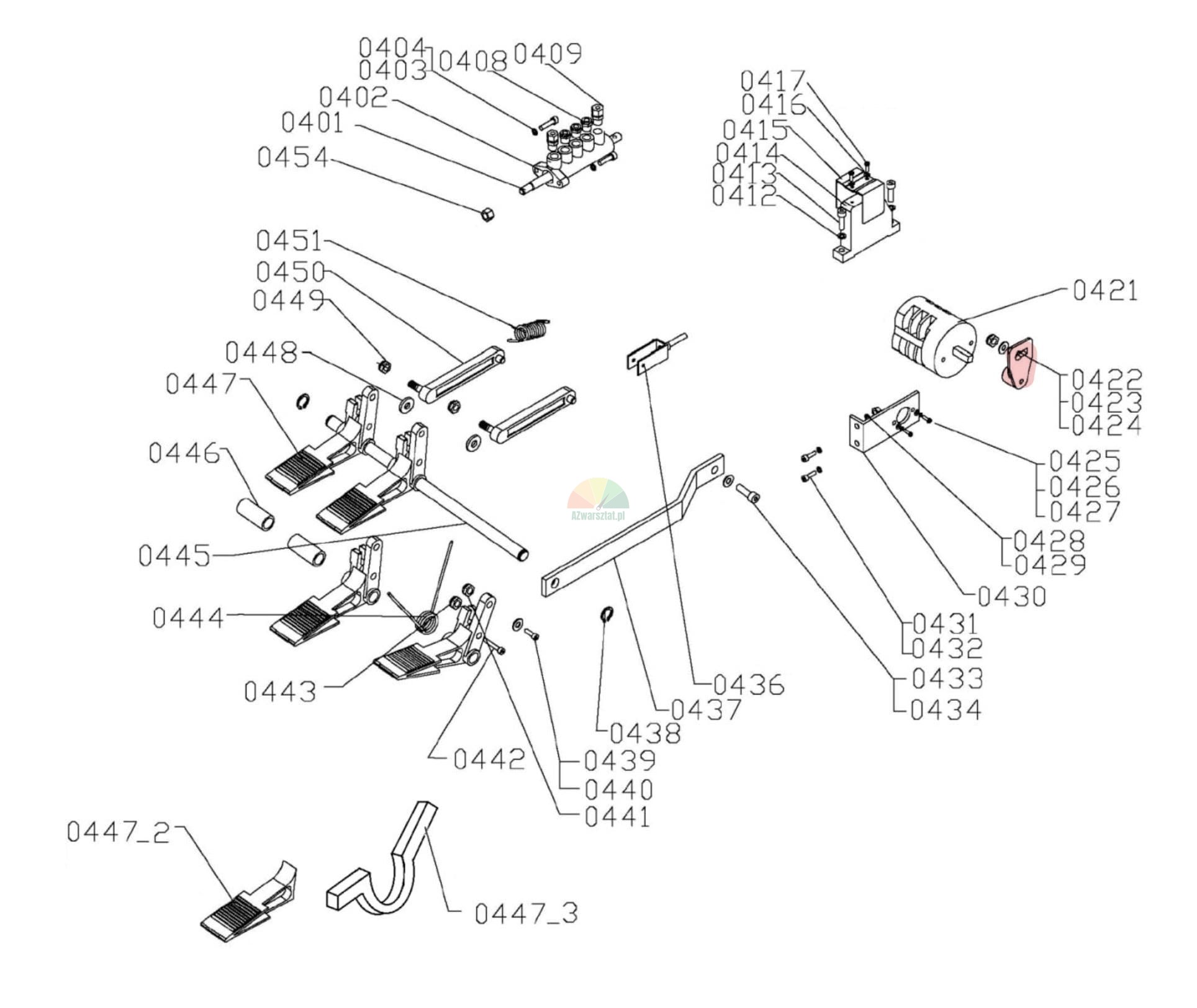

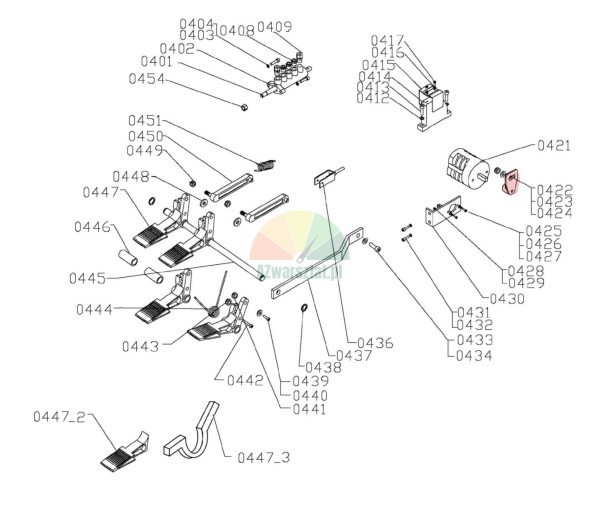

As shown in the attached assembly diagram, the component offered (marked in pink as part 0422) is fitted directly onto the shaft of the electric direction-of-rotation switch (0421). The longitudinal hole (17 mm) is used to connect to a metal pull rod (0436), which is actuated by the machine’s foot pedal.
The connector is made of thick, reinforced plastic, which is highly resistant to cracking and abrasion in harsh workshop conditions. By choosing parts from the AZ Warsztat range, you’re ensuring the reliability and long-term performance of your machines!
