ATH-Heinl replacement: Lift solenoid (DC 24V) H2
The DC 24V two-post lift solenoid is a high-quality replacement solenoid valve for the ATH-Heinl H2 series of vehicle lifts. The product is made of durable, wear-resistant materials and meets the highest quality standards, making it the ideal choice for professional workshops.
Its main function is to release the safety latches, allowing the vehicle lift to be lowered safely and smoothly. The standard configuration of the lift uses two solenoids - one on each post - which work together to ensure stability and safe operation.
The solenoid operates on 24V DC and is 100% compatible with the original ATH-Heinl solenoid valve used on H2-series lifts.
Compatibility
Fits ATH-Heinl vehicle lifts of the H2 series, manufactured from approx. 2010-2012, equipped with a metal control box. Typical models are:
- ATH 2.32H2
- ATH 2.42H2
- ATH 2.32HL2
- ATH 2.42HL2
- ATH-Comfort Lift
- ATH H3 Lift
- ATH H1 Lift
- ATH-Single Lift 12P
Note: To confirm that your lift is an H2 model, check the appearance of the control box and nameplate:
Technical specifications
- Supply voltage: 24V DC
- Mounting thread: M20 x 1.5
- Mounting flange diameter: approx. 60 mm

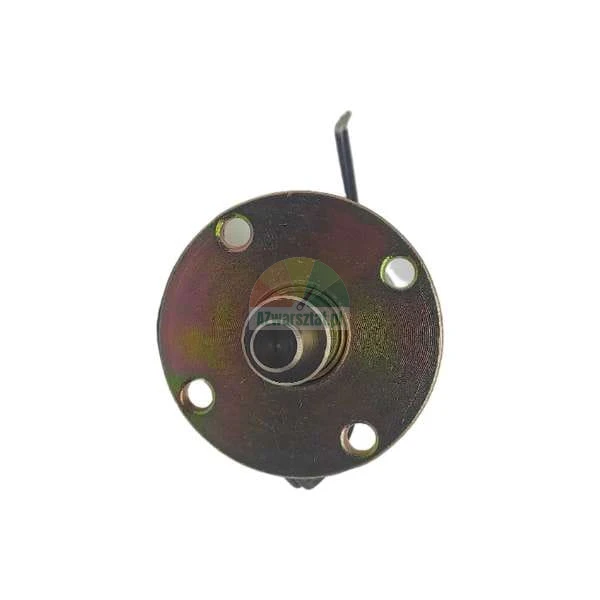

- Mounting hole pattern: 4 holes, symmetrically spaced
- Overall length (with stem): approx. 70 mm
- Material: galvanised steel
- Power cable: 2-core, black
Product features
- High build quality and resistance to workshop conditions
- Safe and reliable release of the safety latches
- Precise fit to original ATH-Heinl vehicle lifts
- Easy installation thanks to standard thread and dimensions
- The ideal choice for workshops that value durability and safety
Note: The solenoid is a key component of the lift safety system - its condition has a direct impact on the safe operation of the vehicle lift. Ensure regular inspection of the lifting equipment by a competent person, in accordance with applicable regulations and EN ISO 9927-1.

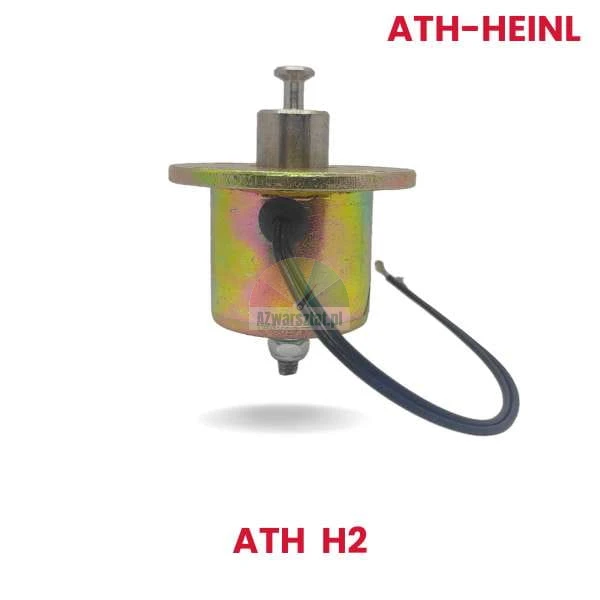

Product picture
Below is a photo showing the solenoid on offer. You can see the mounting dimensions and the power cable:
Dimensions: overall length approx. 70 mm, mounting flange diameter approx. 60 mm, thread M20 x 1.5.
We provide fast shipping, expert advice and a quality guarantee. Replace the worn solenoid with a proven replacement and ensure the safety of your workshop!
