ATH replacement: actuator mounting flange with eye

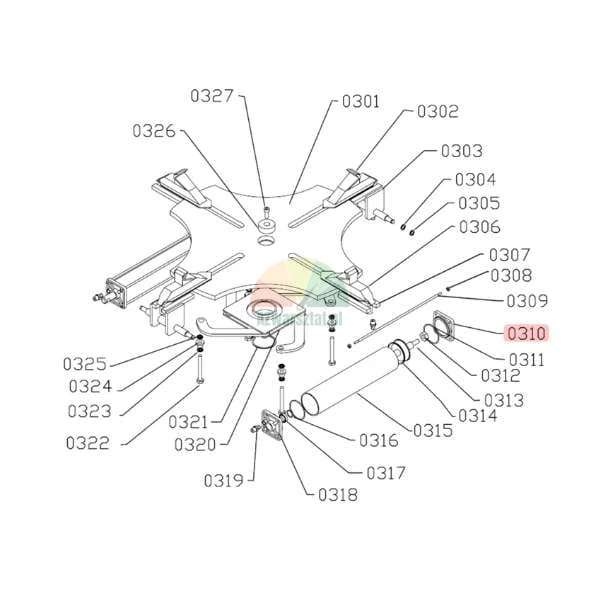

The actuator mountingflange with eye is a high-quality replacement for the original ATH-Heinl part, designed for wheel assemblers of models: 460, 1460, 900, 1900, 980, 1980 and corresponds to position 0310 in the technical diagram.

Perfect fit and function - the replacement ensures full compatibility with the original ATH part at an attractive price.

Product highlights:

Durability and resistance - made of high quality metal alloy, resistant to wear, deformation and corrosion.
Precise workmanship - ensures stable mounting of the actuator and trouble-free operation of the assembly.
Easy installation - the design allows for quick and trouble-free fitting without the need for modifications.
Service convenience - facilitates access to the actuator, which speeds up maintenance and repairs.

Application

The flange is used to fix the actuator in the central part of the mounting table, which is crucial for the correct operation of the assembly machine when handling tyres and rims. Ideal for use in professional vulcanisation workshops and car service workshops.

Compatibility

Fits ATH-Heinl wheel fitters:

ATH 460
ATH 1460
ATH 900
ATH 1900
ATH 980
ATH 1980

Choose a proven replacement - durable, functional and easy to install. The perfect choice for workshops that value quality and reliability.

Product image

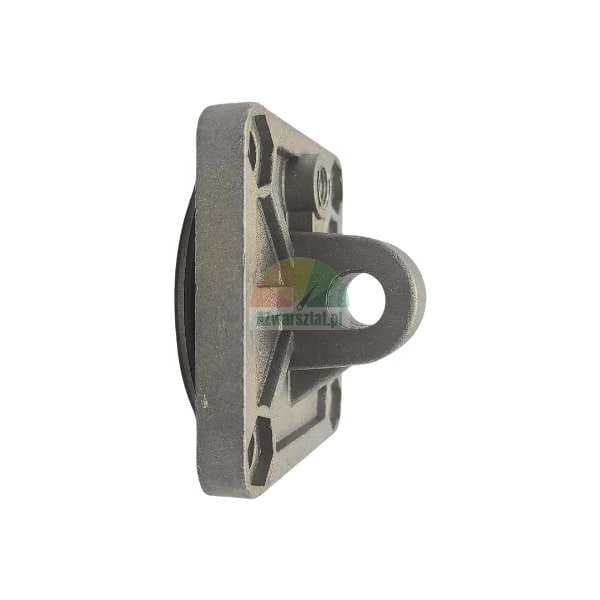

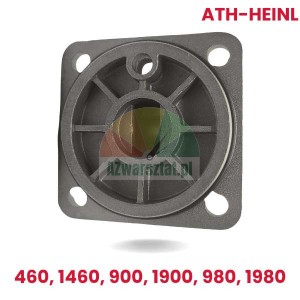

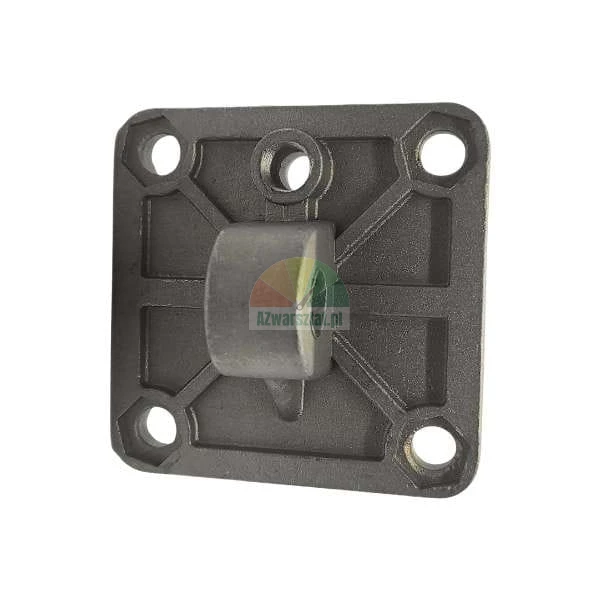

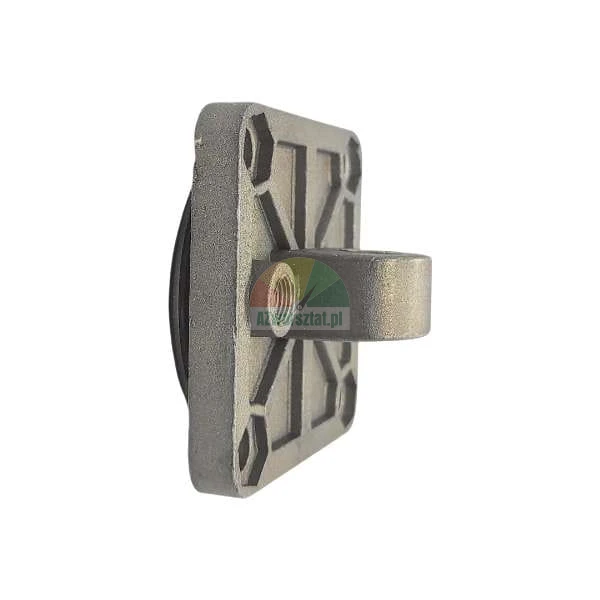

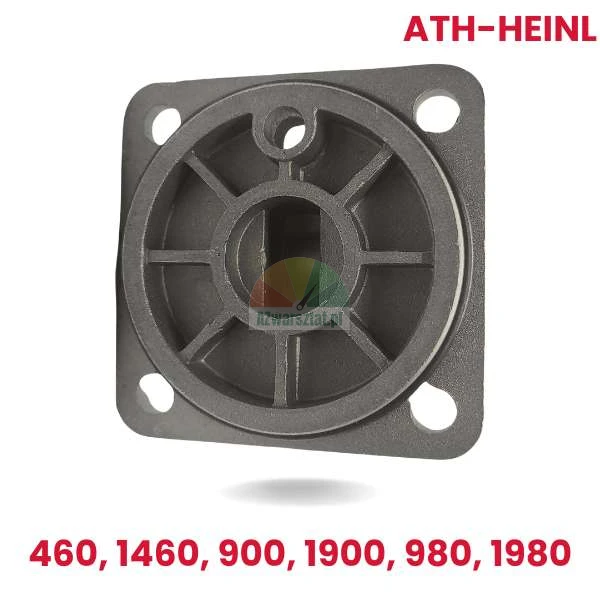

Below is a photo of the actuator mounting flange with eye. The dimensions of the component and the mounting holes are visible, making it easy to match the specific model of the assembly flange.

Flansza montażowa siłownika z uchem - zamiennik ATH

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl
