Spare parts for workshop lifts, tire changers, and wheel balancers
  • ATH-Heinl replacement: Pedal mechanism link for models 460, 1460, 900, 1900, 980, 1980
  • Replacement pedal mechanism linker for ATH-Heinl

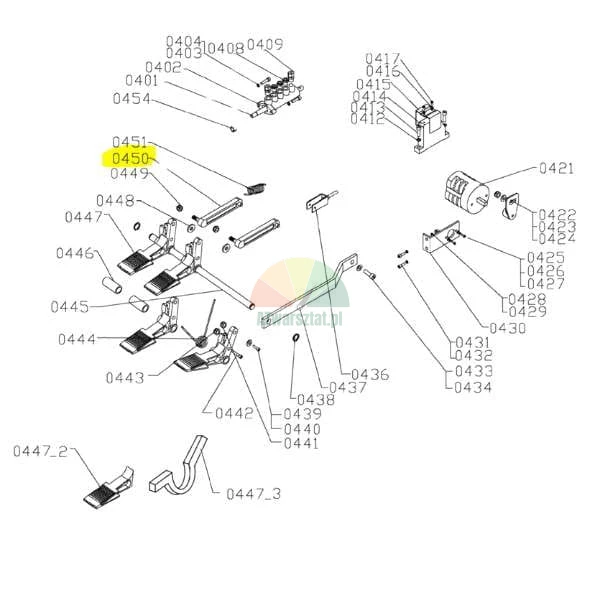

  • Technical exploded view diagram of a control pedal assembly with item 0450 highlighted in yellow. The drawing shows various components like pedals, levers, and valves with part numbers.

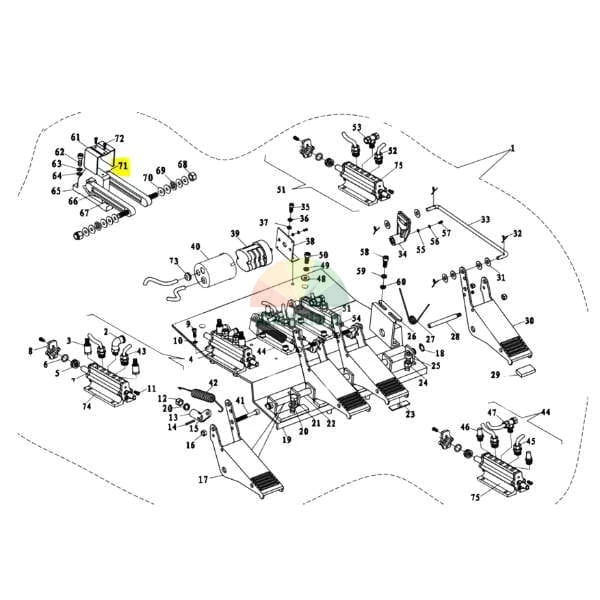

  • Technical diagram of a machine assembly featuring pedals and pneumatic components with part number 71 highlighted in yellow.
  • Metal linkage arm with a threaded bolt and mounting hole on a white background
  • Black bicycle crank arm with a mounting hole on one end, isolated on a white background.
Go to Product feedback
Manufacturer: AZ (go to products)

Replacement ATH-Heinl: Pedal mechanism link 460, 1460, 900, 1900, 980, 1980

Secure payment
30 days to return
Fast shipping
Types of payment
with VAT without VAT
Price €6.58
incl. 23% VAT

Shipping costs are not included in the price.

pc.
Shipping time: 24 hours
Share
Ask about the product
Why us?
  • Only real product reviews.
  • Secure online payments.
  • Hassle-free returns within 14 days.
  • A reliable company - we have been on the market for many years.
Platby

Replacement ATH-Heinl: Pedal mechanism link

High-quality replacement pedal mechanism link for tyre changers, wheel balancers and lifts from the renowned brand ATH-Heinl. Compatible with popular models:

  • ATH-Heinl 460
  • ATH-Heinl 1460
  • ATH-Heinl 900
  • ATH-Heinl 1900
  • ATH-Heinl 980
  • ATH-Heinl 1980

A perfect match to the original models - no modifications or alterations required!

Product highlights:

  • Replacement product - economical alternative to the original ATH-Heinl part
  • Durable - made of robust plastic resistant to mechanical damage
  • Precise workmanship - ensures reliable operation of the pedal mechanism
  • Steel threaded pin - guarantees a stable and long-lasting fastening
  • Dimensions: overall length approx. 120 mm, mounting hole diameter approx. 10 mm, thread M10
  • Easy assembly - quick and effortless replacement

Thanks to the use of high-quality materials, this link ensures a long service life and resistance to intensive use under workshop conditions.

Application:

The link is used in the pedal mechanism of tyre changers, wheel balancers and lifts. It is responsible for transmitting movement from the pedal to the operating mechanism of the machine, making it a key element for the correct operation of the equipment.

It is the ideal solution for service centres and workshops that value reliability, durability and precision.

Product photo:

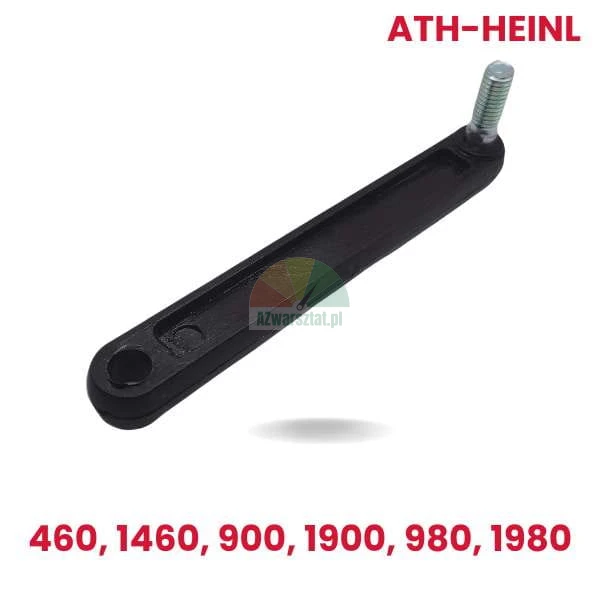

The actual appearance of the link is shown below. The picture shows a component measuring approximately 120 mm in length, with a mounting hole of 10 mm in diameter and an M10 thread:

Replacement ATH-Heinl pedal link

By choosing this replacement, you gain reliability and economy without compromising on quality!
