ATH-Heinl replacement: V-gasket for piston rod 460, 1460, 900, 1900, 980, 1980
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-68
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
ATH-Heinl replacement: V piston rod seal for models 460, 1460, 900, 1900, 980, 1980
The V piston rod seal is a key component of the hydraulic system on vehicle lifts, tyre changers and wheel balancers. Our precision-manufactured replacement is fully compatible with popular ATH-Heinl brand models: 460, 1460, 900, 1900, 980 and 1980.
The high-quality workmanship guarantees tightness, durability and reliability even under intensive use in workshop conditions.
Product advantages:
- Precise fit - eliminates the risk of leaks and pressure drops
- Durability and resistance - made of rubber resistant to oils, pressure and abrasion
- Easy to fit - quick replacement without the need for specialist tools
- Cost-effective alternative - less expensive replacement for original ATH-Heinl parts
Technical specifications:
- Inner diameter: approx. 38 mm
- Outer diameter: approx. 55 mm
- Overall height: approx. 18 mm
- Material: high-quality rubber resistant to oil and high pressure
Fits perfectly as a replacement for original ATH-Heinl seals - no modifications or adjustments necessary.
Application:
The seal is used in the cylinders of hydraulic two-post and single-post vehicle lifts, as well as in other workshop equipment. Its purpose is to ensure the tightness of the piston rod and prevent leakage of hydraulic oil, which translates into safe and efficient operation of the machine.
Don't risk failure! Replace the worn seal with a new one and ensure the reliability of your workshop equipment.
Compatibility:
- ATH 460
- ATH 1460
- ATH 900
- ATH 1900
- ATH 980
- ATH 1980
Product photo:

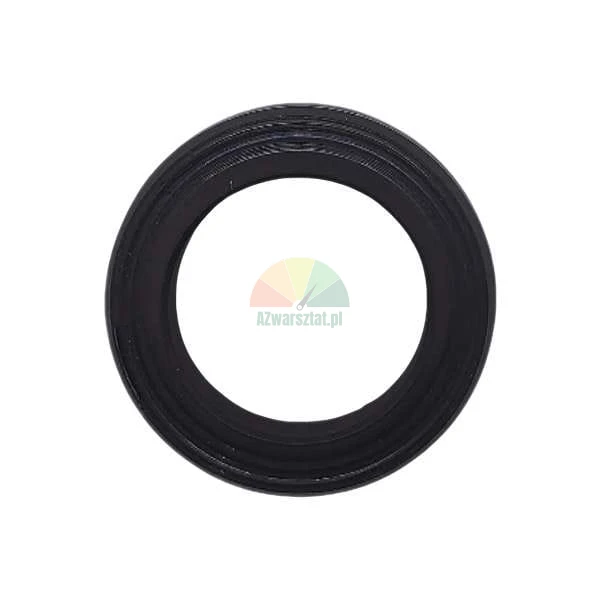

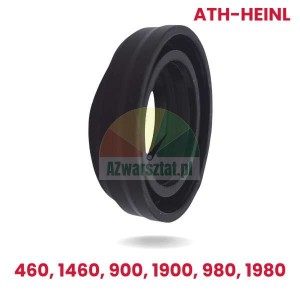

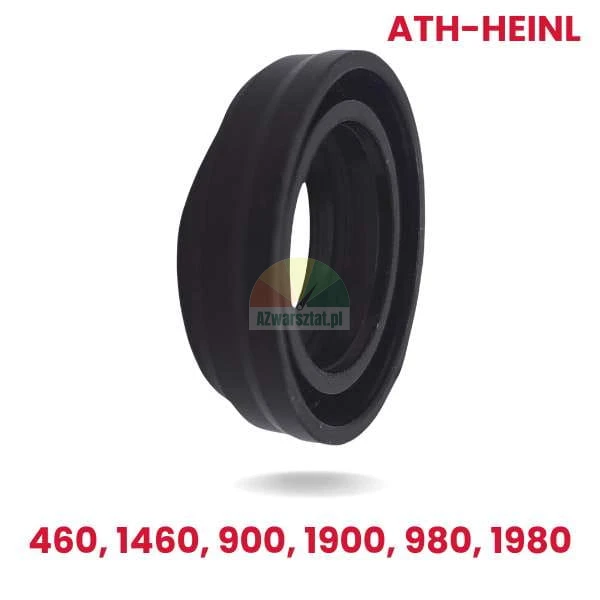

Pictured: V piston rod seal - inner diameter approx. 38 mm, outer diameter approx. 55 mm, height approx. 18 mm.
