ATH-Heinl replacement: Valve manifold black 460, 1460, 900, 1900, 980, 1980
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-41
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

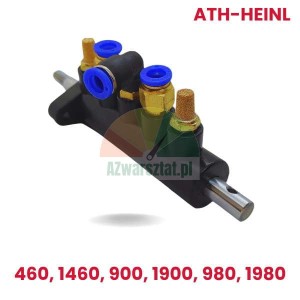

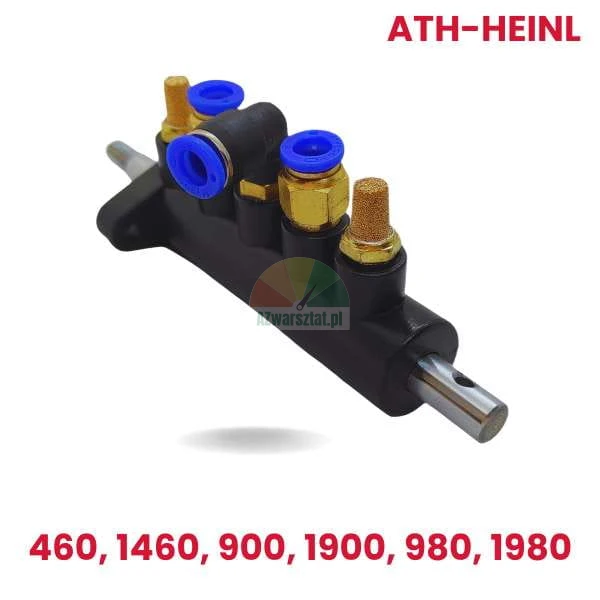

Valve manifold black - replacement part for ATH-Heinl (models 460, 1460, 900, 1900, 980, 1980)
High-quality replacement valve manifold designed for ATH-Heinl tyre changers, wheel balancers and vehicle lifts. Compatible with popular models: 460, 1460, 900, 1900, 980, 1980. An ideal choice for workshops looking for reliable spare parts at a good price.
The manifold ensures precise control of the air flow in the pneumatic system, which translates into smooth and trouble-free operation of the tyre changer. Fits directly in place of the original part - no modifications required.
Application:
The manifold is responsible for the distribution of air in the machine's pneumatic system, enabling the control of functions such as:
- column tilt
- arm locking
- rotary table drive
- actuator control
Technical specifications:
- Colour: Black
- Material: Plastic + brass elements
- Type of connections: pneumatic quick couplings with filter
- Number of outputs: 4
- Shaft diameter: approx. 12 mm
- Overall length (with pins): approx. 135 mm
- Body length: approx. 90 mm
- End thread: M10
Key benefits:
- Compatible with many ATH-Heinl models.
- Durable, damage-resistant materials
- Precise operation of the pneumatic system
- Quick and easy installation
- Economical alternative to original parts
Replacing the manifold is a quick way to restore the full functionality of the tyre changer without the need for costly repairs to the entire system. A product recommended by professional car services and workshops.
Product picture:

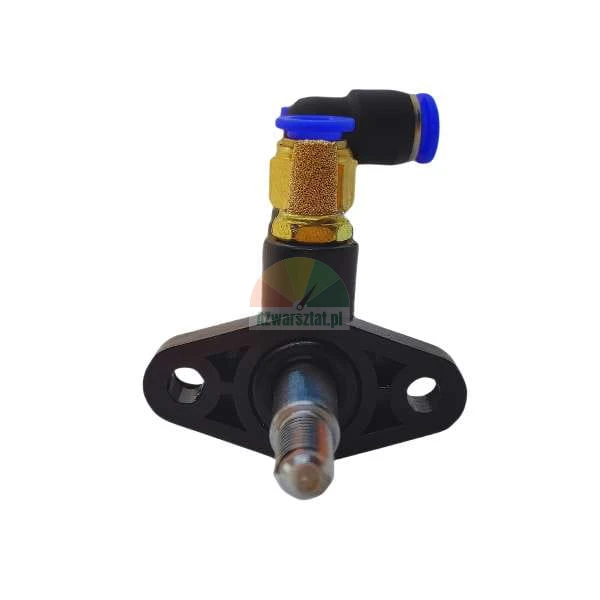

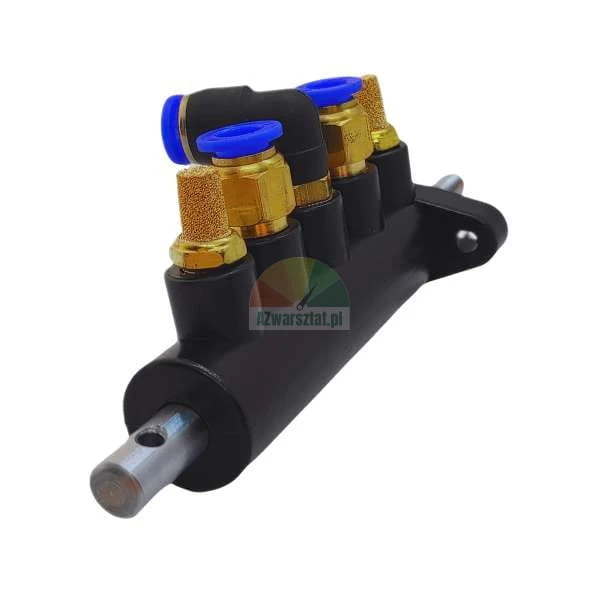

Pictured: valve manifold black - overall length approx. 135 mm, body length approx. 90 mm, shaft diameter approx. 12 mm.
