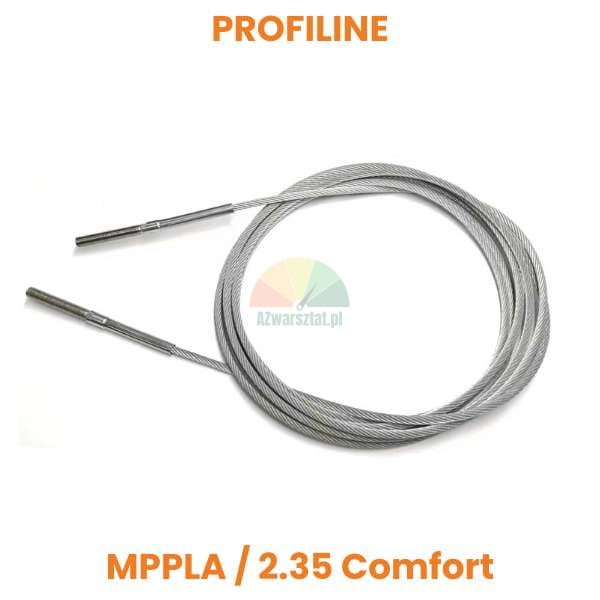

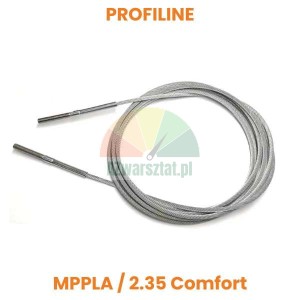

Profiline replacement: steel cable for Profiline MPPLA double-column lift

We offer a high-quality replacement steel cable for the Profiline MPPLA (2.35 Comfort) double-column lift. Our product is a replacement for the original ATH-Heinl rope and has been made from high-grade steel, which guarantees reliability, safety and a long service life even with intensive use in professional garages.

Each rope is certified in accordance with European standards (Directive DE 2006/42/EC, PN-EN-ISO 12100-1-2012) and the Office of Technical Inspection (UDT). This gives you the assurance that the rope meets all safety requirements and passes UDT inspections without any problems!

Product features and benefits:

High strength - steel construction resistant to stretching and abrasion
Precise manufacture to ensure correct synchronisation of the lift arms
Easy to install - replacement ready for quick fitting
Fully compliant with European and UDT standards
Perfect fit for Profiline MPPLA lifts and compatible models
Product sold by the piece

ATTENTION : The price is for one cable. The MPPLA lift uses two ropes - we recommend always replacing them in pairs to ensure even operation and safety of the machine. Buy two cables at once!

Application

The wire rope is responsible for the correct synchronisation of arm movement on two-column lifts. Its wear or damage can lead to uneven lifting of the vehicle, so regular inspection and replacement are essential for safe operation.
The product is dedicated to the Profiline MPPLA (2.35 Comfort) series of lifts, often used in professional garages.

Technical data

Material: high-grade steel
Type: guide/synchronising cable
Compatibility: Profiline MPPLA (2.35 Comfort) jacks, replacement for the original ATH-Heinl rope
Certifications: DE directive 2006/42/EC, EN-ISO 12100-1-2012, UDT

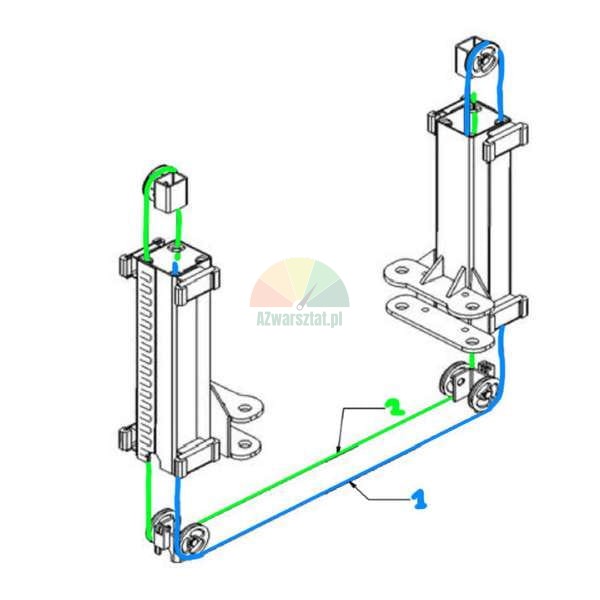

Dimensions: according to technical drawing - fits jacks with rope as shown in the picture (mark 1 and 2)

Stalowa lina do podnośnika Profiline MPPLA – wymiary techniczne

If you have any doubts about choosing the right wire rope for a specific lift model, please contact our technical department - we will be happy to help!

Replacement of the wire rope in the Profiline MPPLA twin-column lift is a guarantee of safe and reliable operation of the device for a long time.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

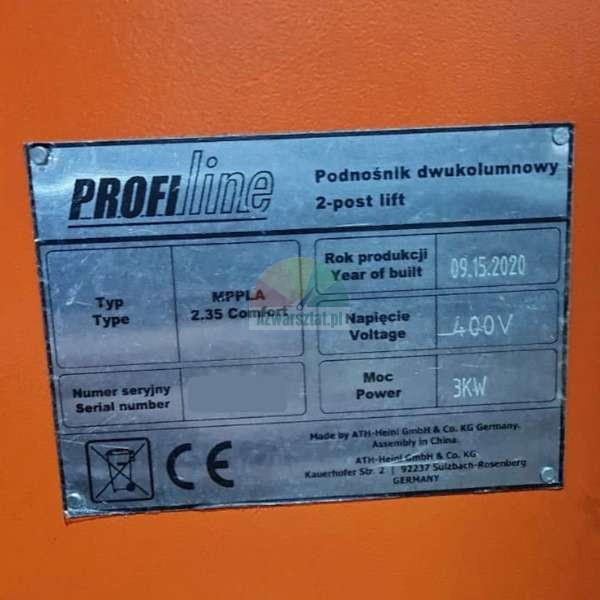

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
