Hydraulic overload (safety) valve G20mm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZAWO-0019
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

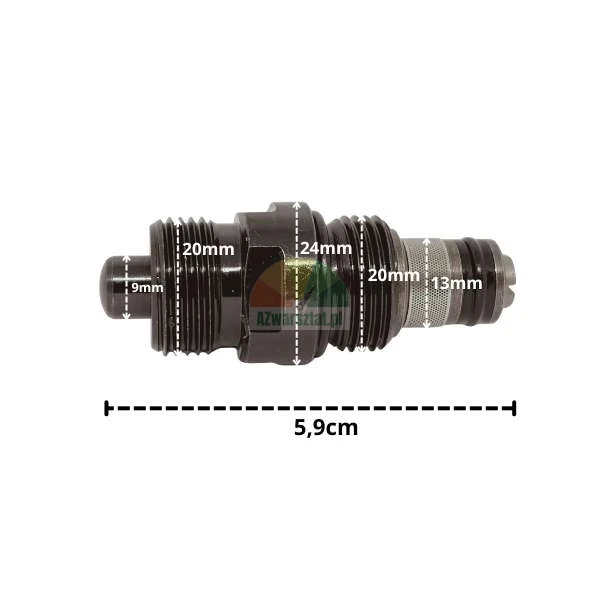

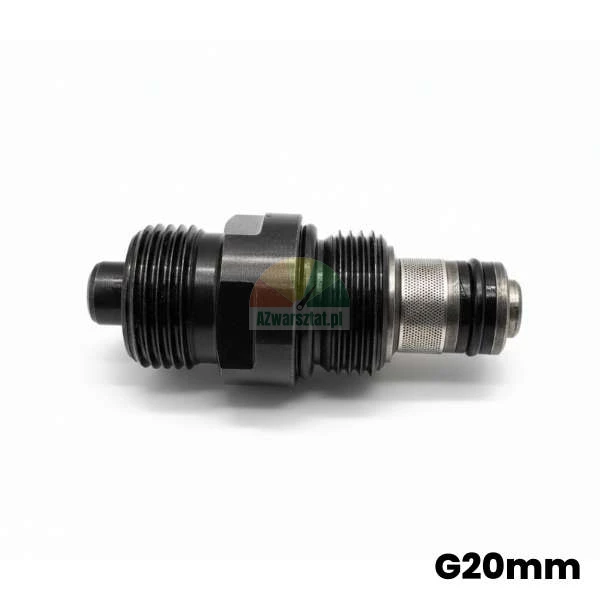

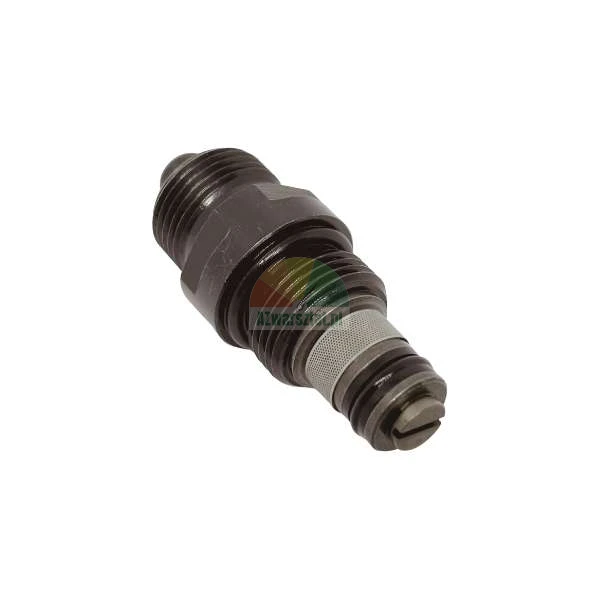

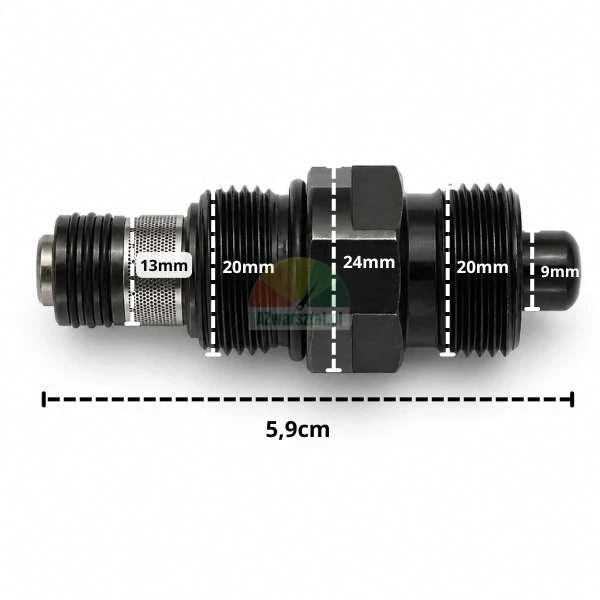

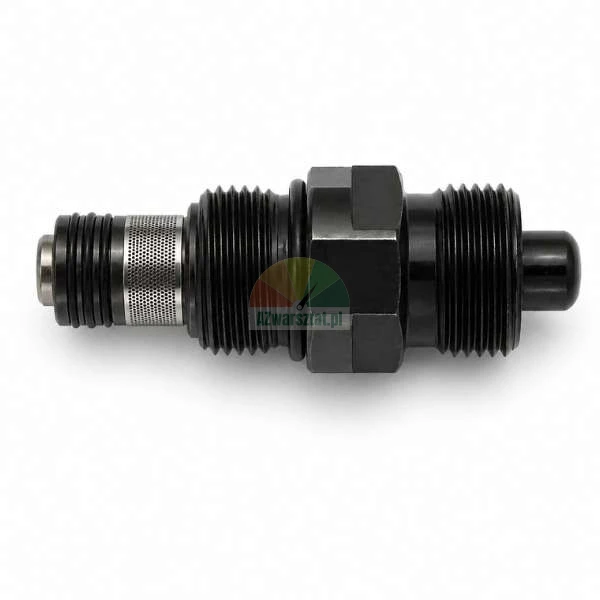

Hydraulic overload (safety) valve with 20 mm thread
Solid protection for your hydraulic system - the overload valve is a reliable component that effectively protects workshop, agricultural, construction and industrial machinery from the effects of excessive pressure.
Automatic protection: the valve opens automatically when the set pressure is exceeded, draining excess fluid into the tank and protecting key components from failure.
Key product features
- Type: Pressure relief valve (bypass, safety)
- Connection thread: G20 mm
- Material: Galvanised steel - corrosion and high-pressure resistant
- Operating pressure range: 10-250 bar - wide adjustment for different applications
- Maximum flow rate: 45 L/min - ideal for medium and small hydraulic systems
- Operating temperature: -40°C to +100°C - reliable in all conditions
- Seals: BUNA-N - leak-tight performance
- Weight: approx. 0.2 kg - compact and robust design
Why is it worth it? The overload valve ensures safety, stable operation and an extended service life for your machines. It protects the pump, cylinders and other components from overload, minimising the risk of costly breakdowns.
How does it work?
The hydraulic overload valve controls the pressure in the system, opening automatically when the set value is exceeded. This ensures that excess fluid is safely discharged into the reservoir and the entire system operates stably and safely.
Rely on reliability! Choose this overload valve and ensure that your machines run for a long, trouble-free time even under the toughest conditions.
Product safety
Manufacturer
Jin Hoi International Trading Ltd
Office Tower 625 and 639 Nathan Rd
Rm1101-02.11 Hong Kong, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
