Lowering valve (19mm thread) black
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZAWO-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

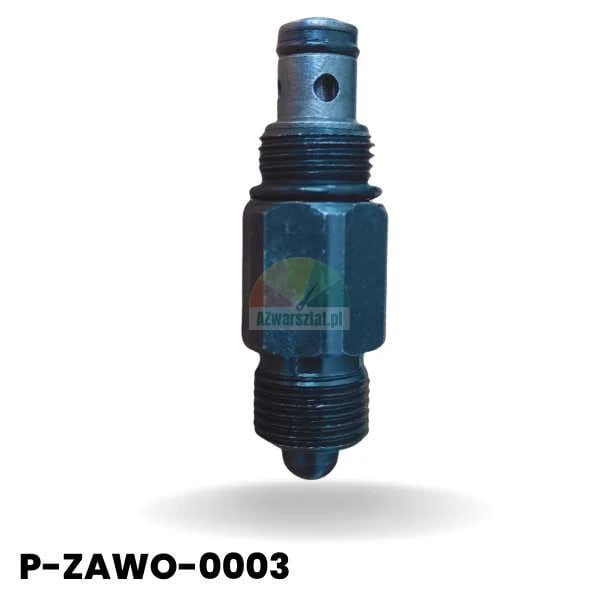

Lowering valve - Precision hydraulic control element
Product description
Introducing the high-quality lowering valve, a key component of the hydraulic system in vehicle lifts. This professional component is designed to precisely control the lowering of the lifting carriage.

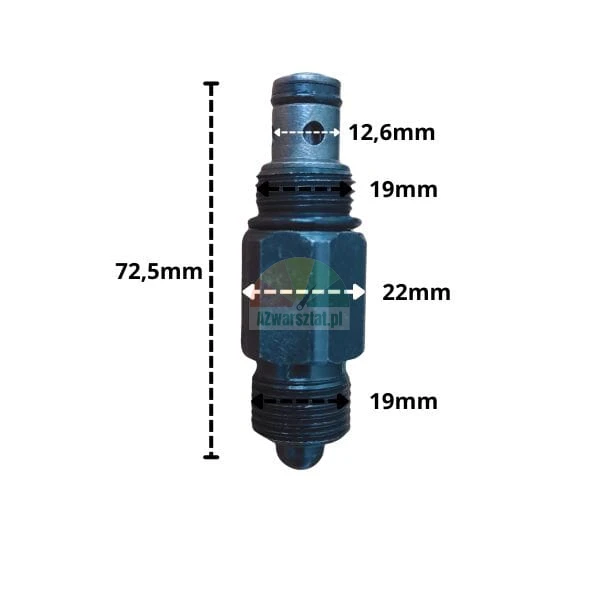

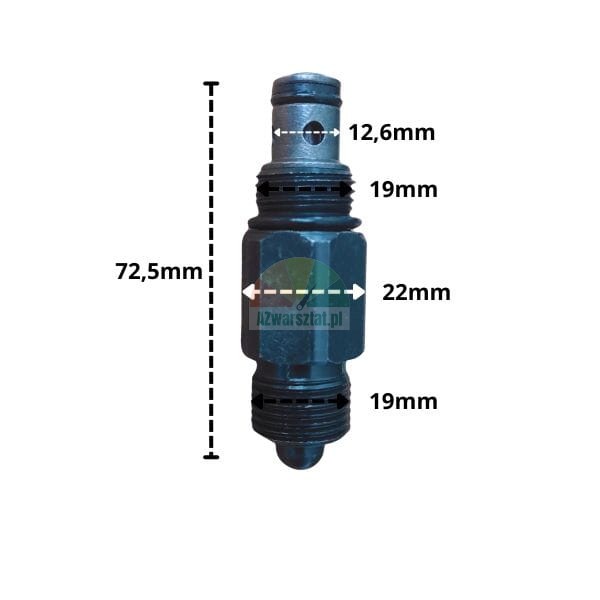

Technical specifications
- - Overall length: 72.5 mm
- - Thread diameter: 19 mm
- - Body width: 22 mm
- - Top diameter: 13 mm
- - Construction: High-quality steel
- - Finish: black corrosion protection coating
Application

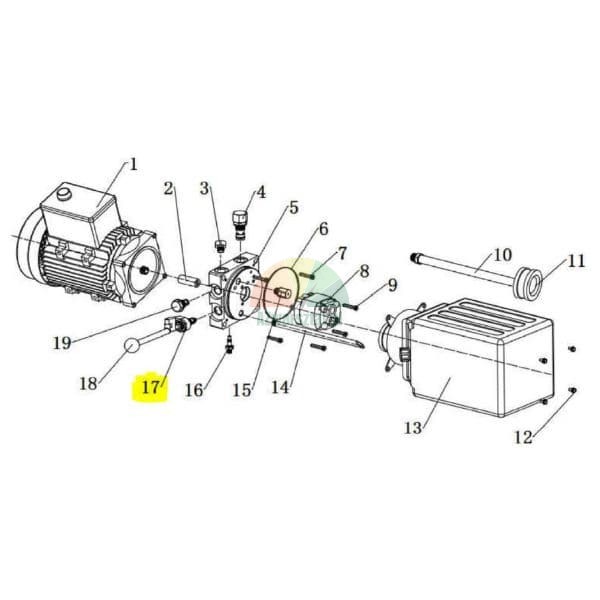

The valve is compatible with most professional hydraulic systems used in vehicle lifts. The element is marked with No. 17 on the technical diagram of the hydraulic system.
Advantages
- - Precise control of lowering speed
- - High durability and reliability
- - Easy to install thanks to standardised dimensions
- - Effective seal to prevent leakage
- - Smooth operation without jamming
NOTE: Product intended for professional installation by qualified technical personnel.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
