Non-return valve (18mm thread)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZAWO-0009
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Non-return valve (18 mm thread)
The non-return valve with an 18 mm thread is a reliable component used in pneumatic and hydraulic systems that allows the medium to flow in one direction only, preventing backflow. This increases the safety and efficiency of workshop equipment.

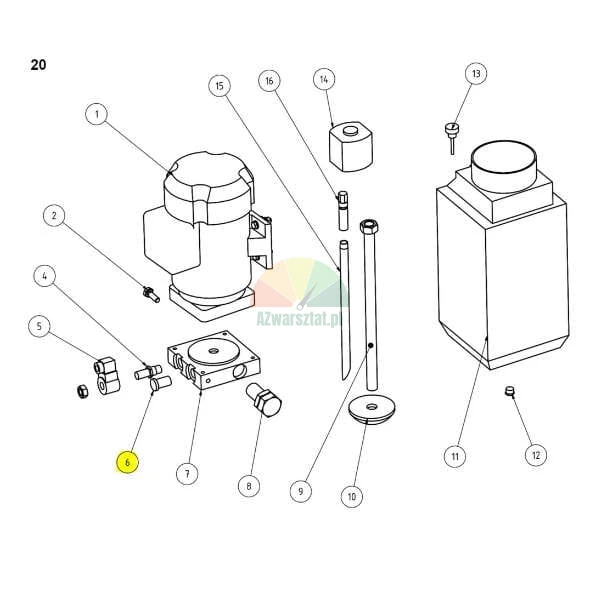

The product is used on machines such as tyre changers, wheel balancers and vehicle lifts. It is compatible with many popular equipment models available on the market.
Why choose this valve?
- 18 mm thread - ensures an easy and tight connection to the system.
- Resistant to high pressures and temperatures - ensures reliability in demanding workshop conditions.
- Durable design - made from robust, wear-resistant materials.
- Easy installation and maintenance - saves time and ensures ease of use.
Perfect fit - the valve fits many models of workshop machines, making it an essential service component in any professional workshop.

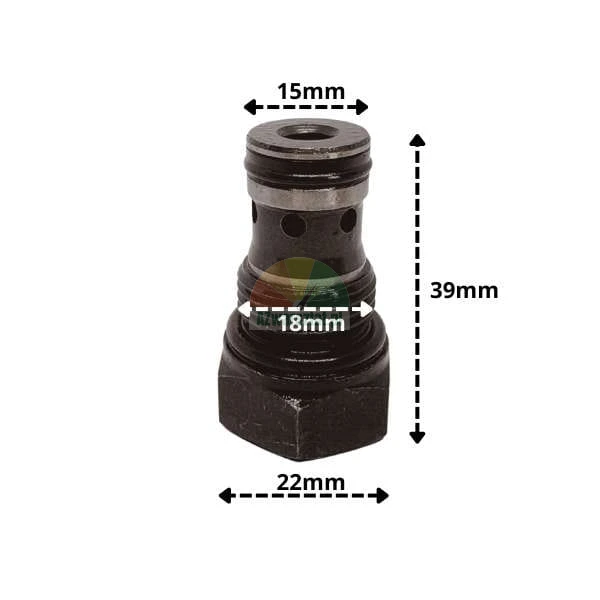

Technical specifications:
- Thread diameter: 18 mm
- Outer diameter of the base: 22 mm
- Upper diameter: 15 mm
- Overall height: 39 mm
The valve effectively protects the system from backflow of air or oil, which is particularly important in the event of a sudden machine stoppage. This increases operator safety and protects the machine from damage.

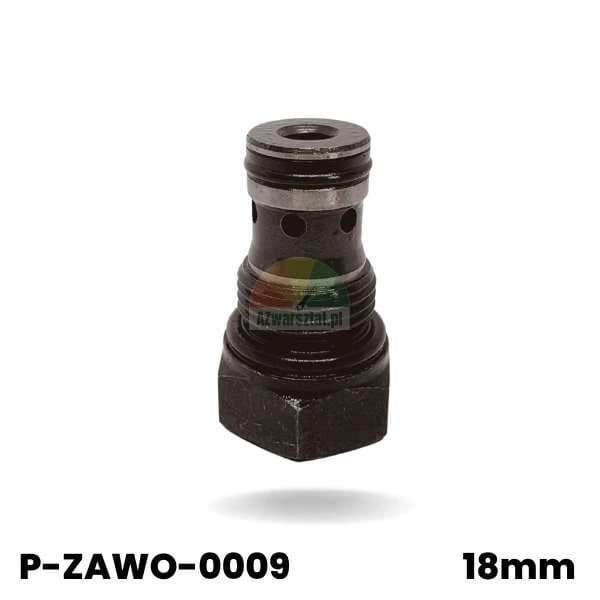

Product code: P-ZAWO-0009
Do you have questions about compatibility or technical specifications? Contact us - our specialists will help you select the right parts for your needs.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
