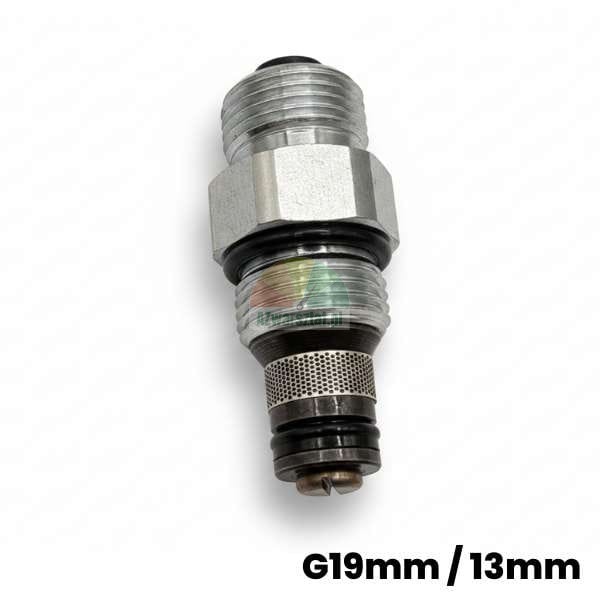

Lowering valve (check valve) for hydraulic vehicle lift
The presented product is a high-quality safety (check) valve designed for use in professional vehicle lifts. It is a critical component of the hydraulic system, responsible for maintaining pressure and controlling the direction of oil flow in the actuator.
Key function: This valve prevents the lift from descending unintentionally, which directly contributes to the safety of the technician and the stability of the lifted vehicle.
Technical data and dimensions

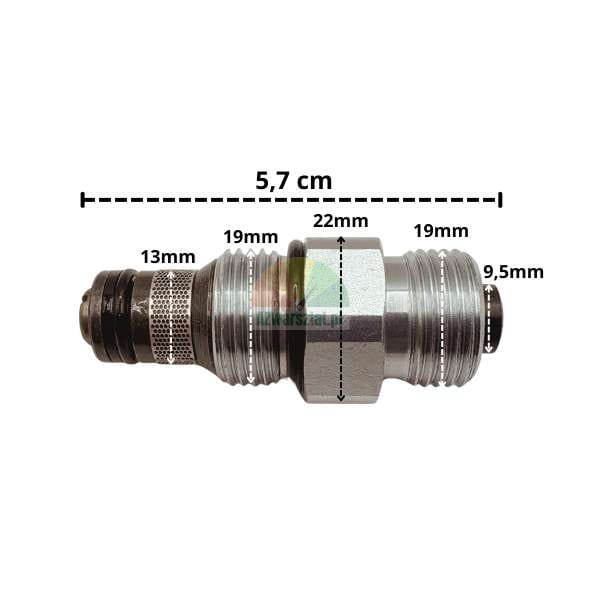

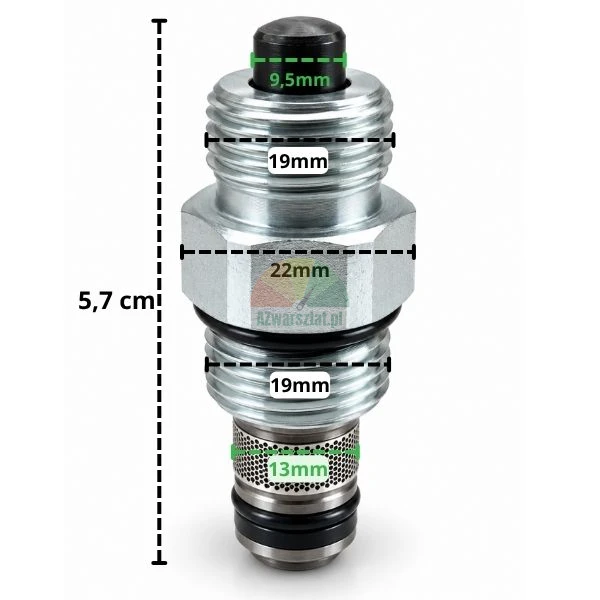

The part is made of durable metal alloys that are resistant to high working pressure. To select the appropriate replacement part, please verify the dimensions according to the specifications below and the attached diagram:
- Total length: 5.7 cm (57 mm)
- Spanner size (hexagon): 22 mm
- External thread diameter: 19 mm
- Shank diameter (part with filter/strainer): 13 mm
- Internal bore diameter (on the button side): 9.5 mm

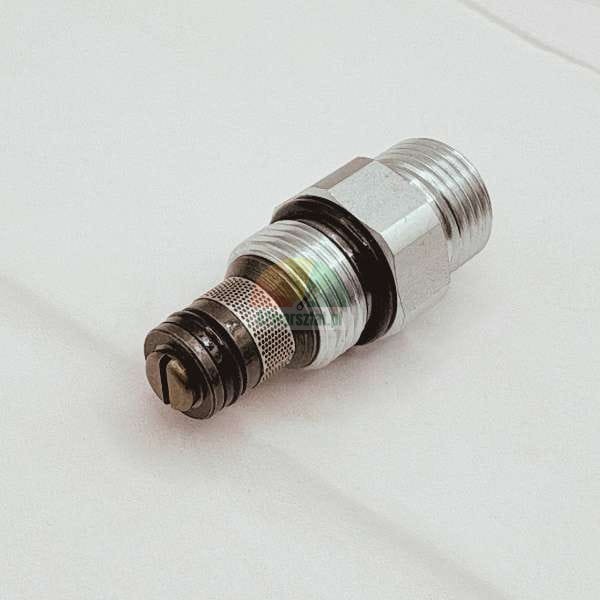

The valve is equipped with a metal mesh filter that protects the mechanism from contaminants that may be present in the oil system, significantly extending its service life.
Installation tip: Before purchasing, we recommend that you carefully measure the old component with a caliper. The thread dimensions (19 mm) and mounting diameter (13 mm) must match for the system to function properly.
The product fits many popular models of hydraulic jacks available on the market. It ensures a tight seal and smooth operation of the device.
