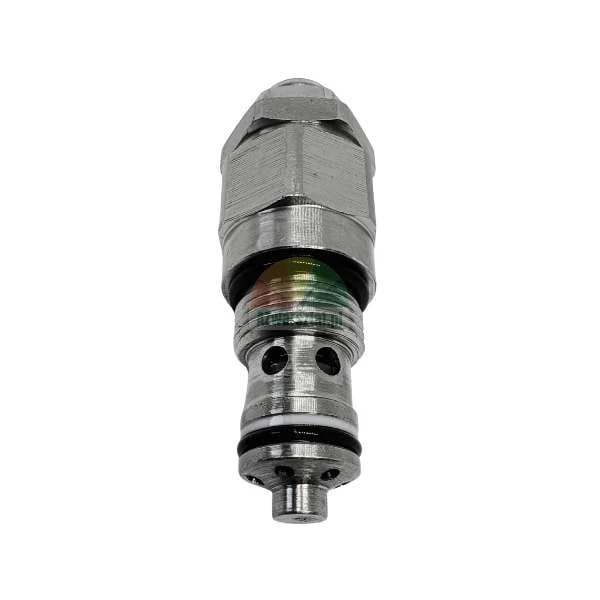

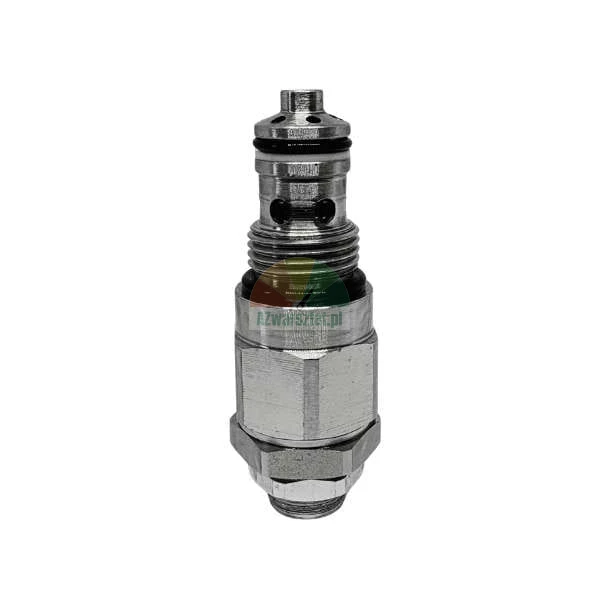

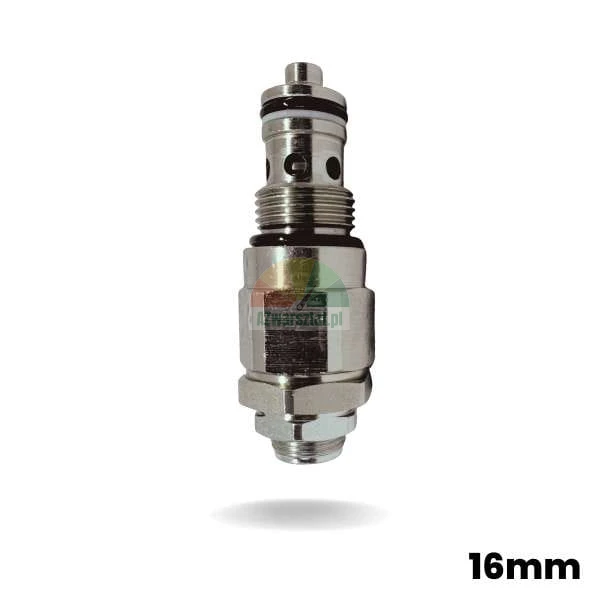

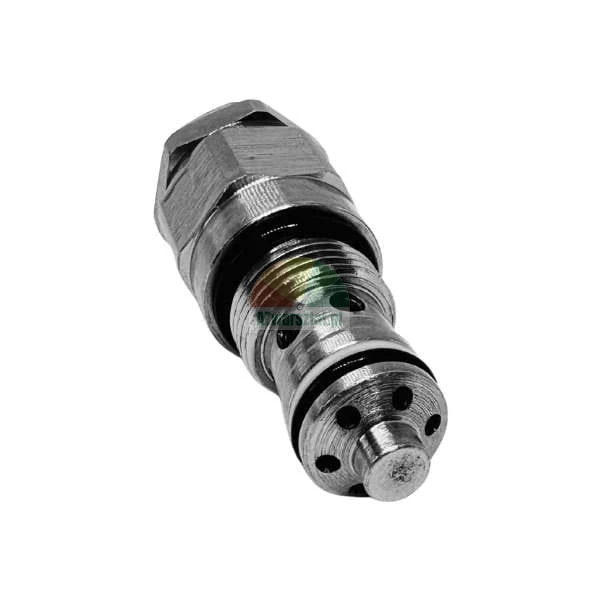

Hydraulic pressure relief valve 16mm (19mm thread)

The hydraulic pressure relief valve with a diameter of 16mm and a thread of 19mm (3/4-16 UNF) is a key safety component for hydraulic systems in vehicle lifts. Its function is to automatically protect the system from over-pressurisation - the valve blocks the flow until 85% of the set pressure is reached and then precisely discharges the excess fluid, protecting expensive components from damage.

Relief valves are essential for the safety and longevity of hydraulic systems - effectively preventing breakdowns and service downtime.

Key features and technical specifications

Valve diameter: 16 mm
Connection threads: 3/4-16 UNF (outer diameter 19 mm)
Maximum operating pressure: up to 350 bar
Maximum flow rate: 11 l/min
Pressure adjustment range: 6.6 - 250 bar (depending on spring)
Operating temperature range: -30°C to +100°C
Internal leakage: <30 ml/min
Body material: galvanised steel - resistant to corrosion and mechanical damage
Sealing: NBR/Buna - ensures tightness and long service life
Installation tightening torque: 24.5-27.2 Nm
Type of operation: automatic opening when the set pressure value is exceeded

Technical dimensions

Overall length: 70 mm
Mounting keys: S4, S17, S21

Why choose this valve?

High-quality workmanship - durable and resistant to intensive use
Easy assembly thanks to standard dimensions and thread
Operational safety - effective protection against overload of the hydraulic system
Versatility - wide range of applications for different types of machines

By choosing our relief valve, you are investing in the reliability, safety and long life of your machine!
