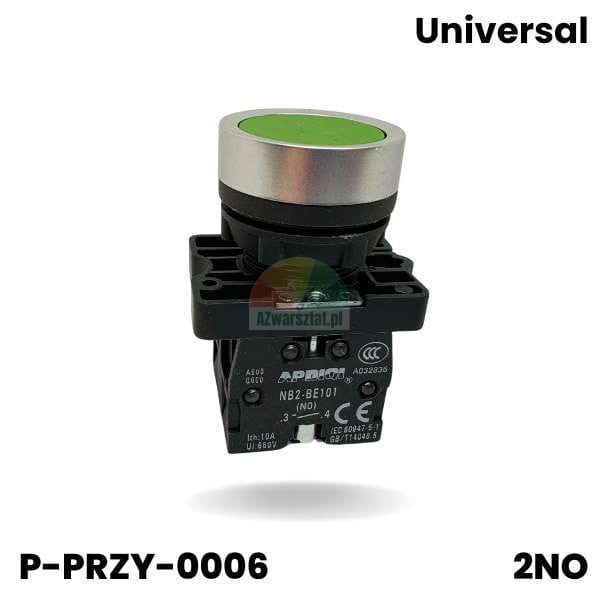

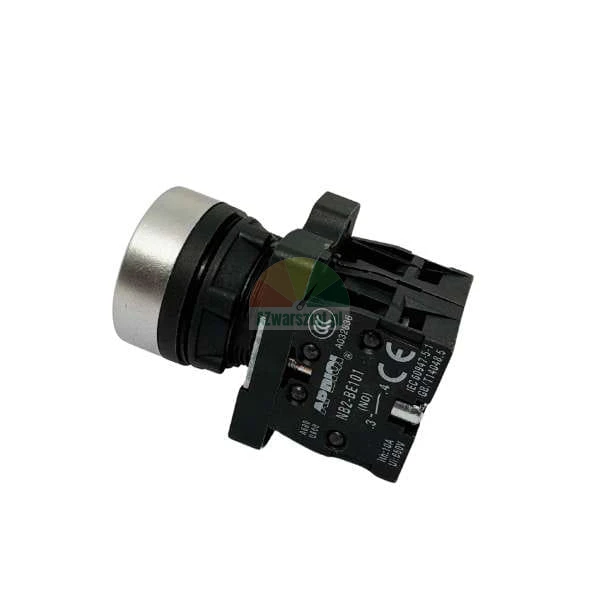

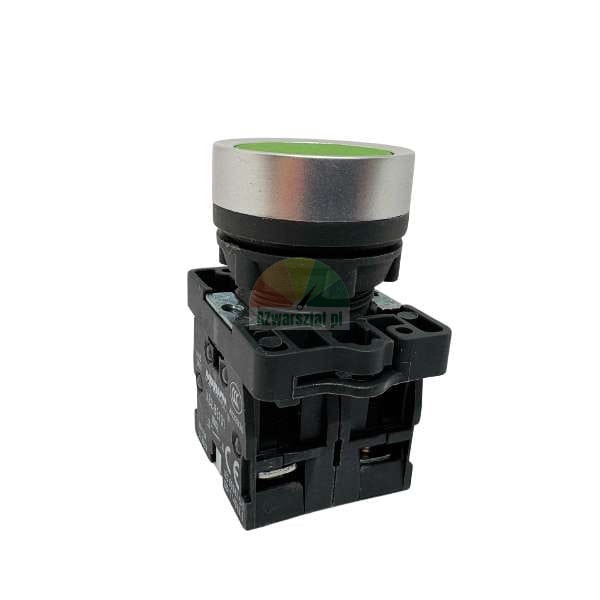

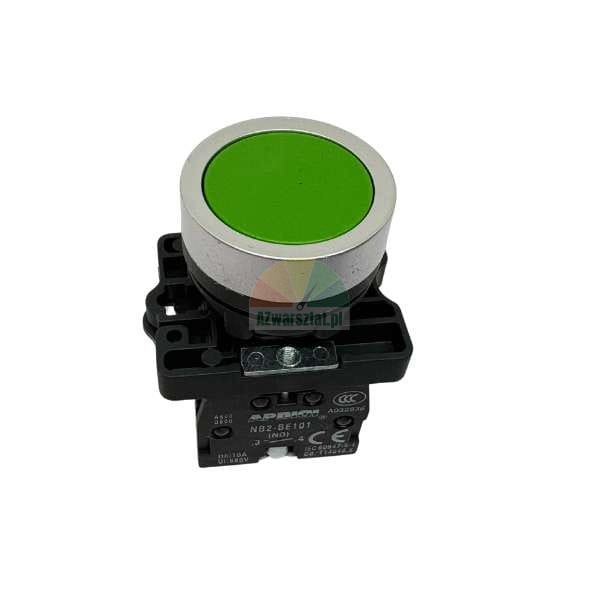

Lifting Push Button 2 x NO – Green
Professional control push button 2 x NO (normally open) in green for use on vehicle lifts, tyre changers, wheel balancers and other industrial machines. With its universal dimensions and high durability, it is a reliable replacement part for workshop equipment.
Key product features:
- Contact type: 2 x NO (normally open) – ensures safe and secure operation in control systems.
- Button colour: Green – facilitates quick identification of functions on the control panel.
- Stable operation: The push button remains in the engaged position until manually released – ideal for vehicle lifts.
- High mechanical durability: more than 1,000,000 operating cycles – resistant to intensive use.
- Degree of protection: IP65 – dust and water resistant, suitable for harsh workshop environments.
- Material of construction: Durable plastic – resistant to mechanical damage and external influences.
- Universal mounting dimensions: Hole diameter 22 mm – compatible with most control panels.
Application: The push button is used in hydraulic and electro-hydraulic vehicle lifts, tyre changers, wheel balancers and other workshop machines. Ideal for car service centres and tyre fitting workshops.
The product meets industrial requirements and is easy to install and connect, allowing quick replacement or upgrade of existing control installations.
Technical specifications:
- Model: NB2-BE101

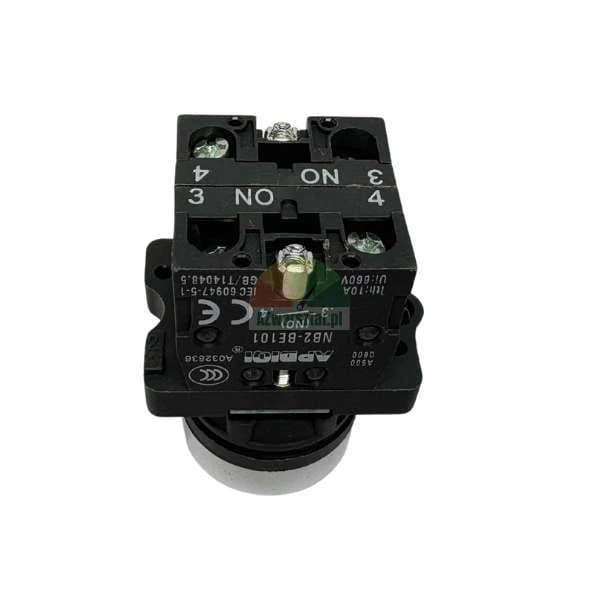

- Contact type: 2 x NO
- Colour: Green

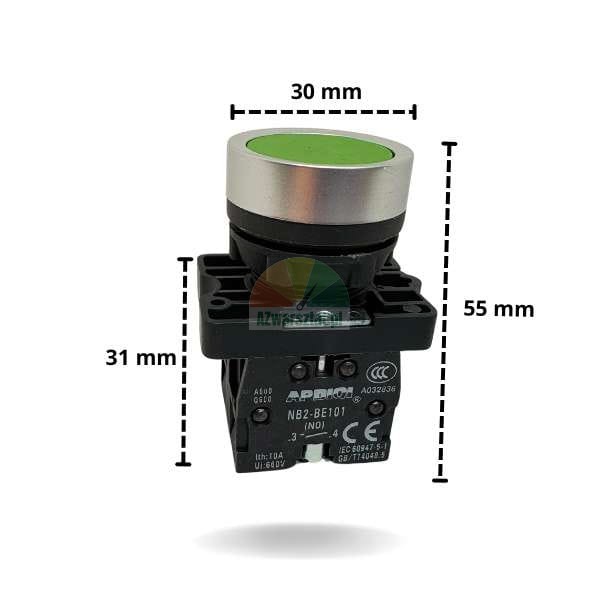

- Button diameter: 30 mm
- Mounting diameter: 22 mm
- Overall height: 55 mm
- Mounting depth: 31 mm
- Rated voltage: 660 V
- Current: 10 A
- Operating temperature: -25 °C to +40 °C
- Mechanical strength: 1,000,000 cycles
- Degree of protection: IP65
- Certifications: CE, CCC
Product code: P-PRZY-0006
By choosing this push button, you are investing in the reliability, safety and long service life of the control components in your workshop.
