Lifting switch - white 2 x NC
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-PRZY-0009
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Lift push button - white 2 x NC

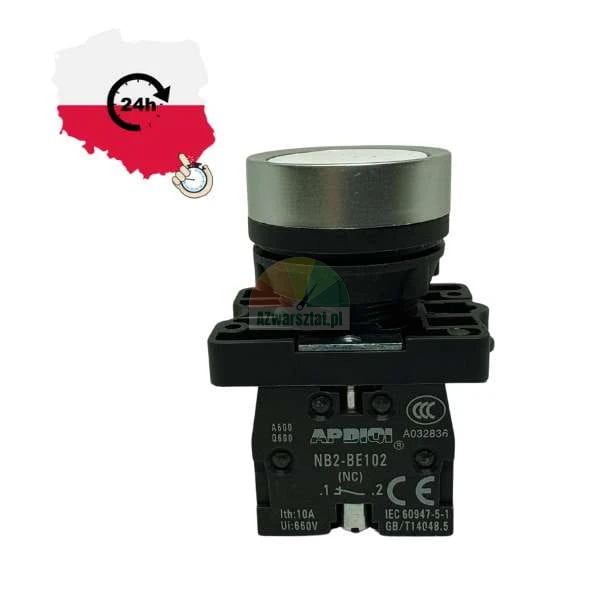

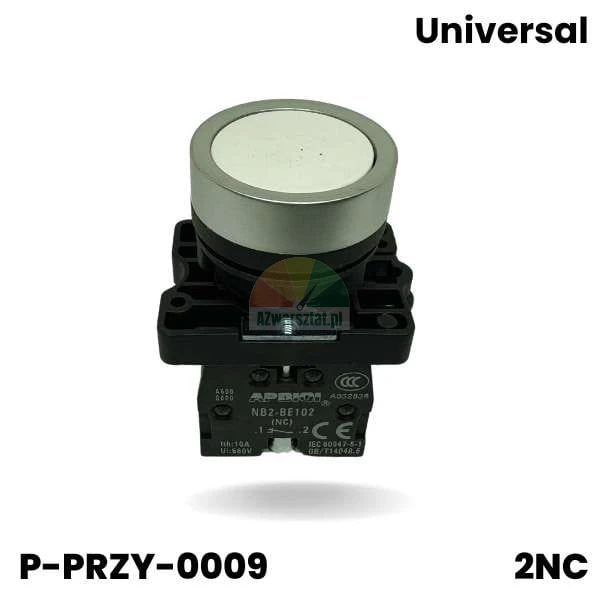

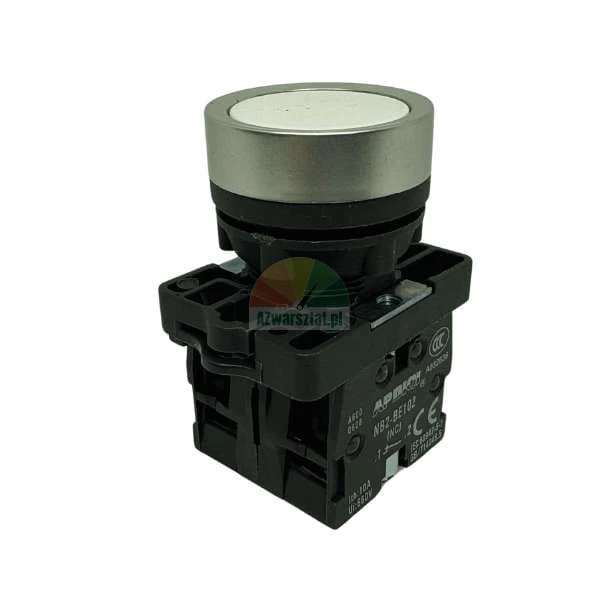

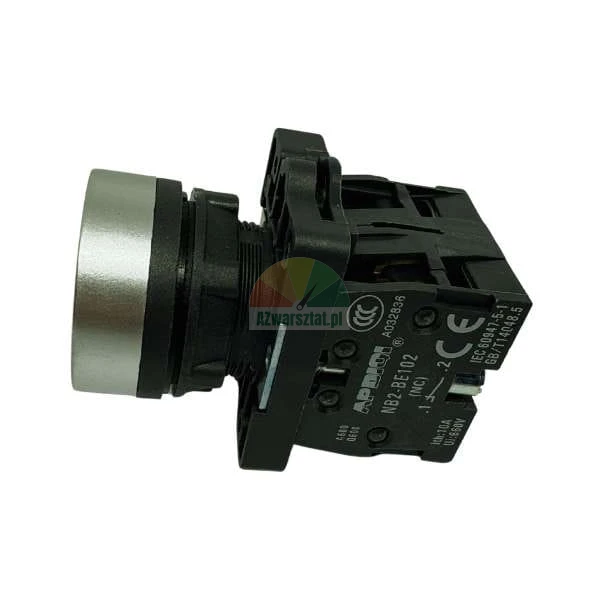

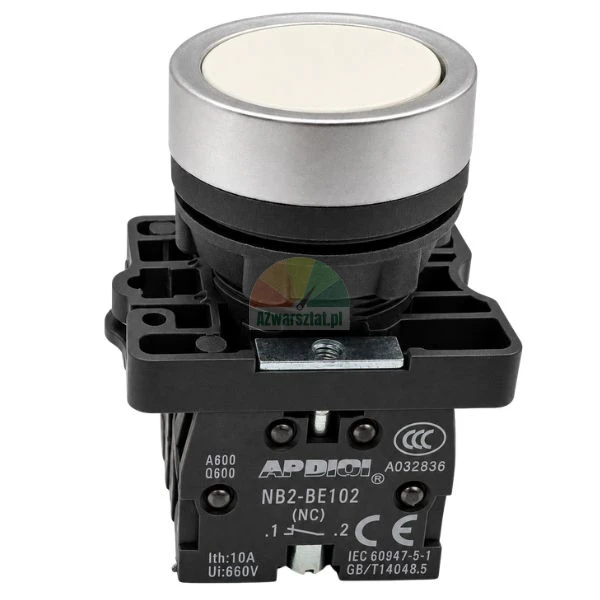

High-quality lift push button in white, equipped with 2 NC contacts (normally closed). Designed for intensive use on vehicle lifts, tyre changers and wheel balancers. The robust construction ensures reliable operation even under demanding workshop conditions.
The universal application makes the push button suitable for many machine models from different manufacturers!
Technical specifications:

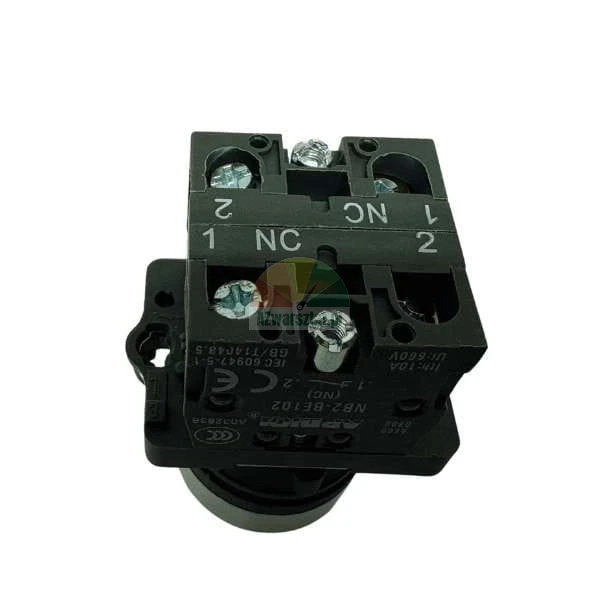

- Contact type: 2 x NC (normally closed)
- Colour: White
- Button diameter: 30 mm
- Overall height: 55 mm
- Base height: 31 mm
- Rated current: Ith 10A
- Rated voltage: Ui 660V
- Standards: IEC 60947-5-1, GB/T14048.5
Main product advantages:
- High mechanical and electrical strength.
- Easy installation due to standard dimensions.
- Robust construction for long service life.
- High resistance to workshop conditions.
- Increased operational safety thanks to the use of two NC contacts.
Thanks to the use of two NC contacts, the push button guarantees safe and efficient control of workshop equipment.
Application:
The push button is ideal as a control element in:
- tyre changers,
- wheel balancers,
- vehicle lifts,
- other workshop machines requiring reliable control.
We assure 100% quality of our products - all spare parts comply with the applicable standards and are safe to use.
Product code: P-PRZY-0009
Product picture:

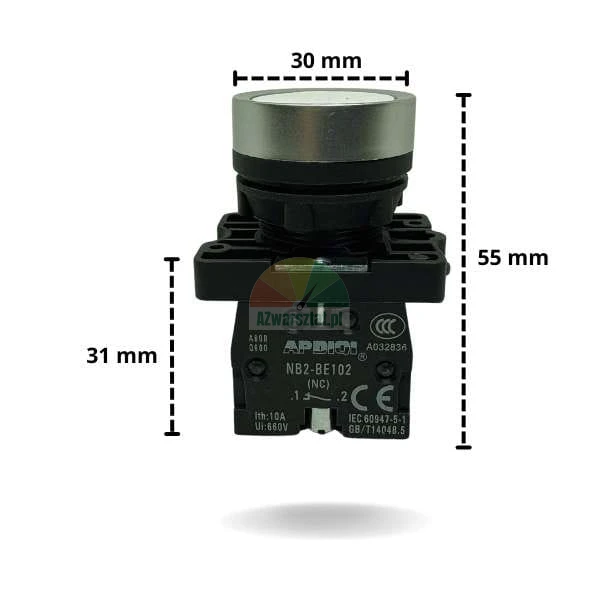

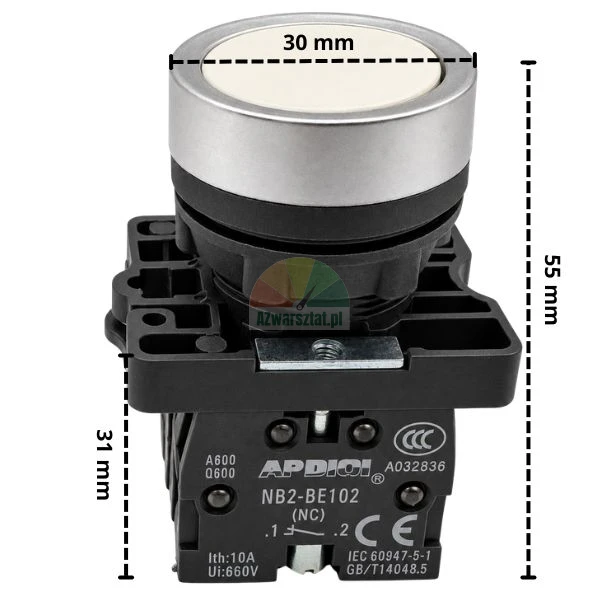

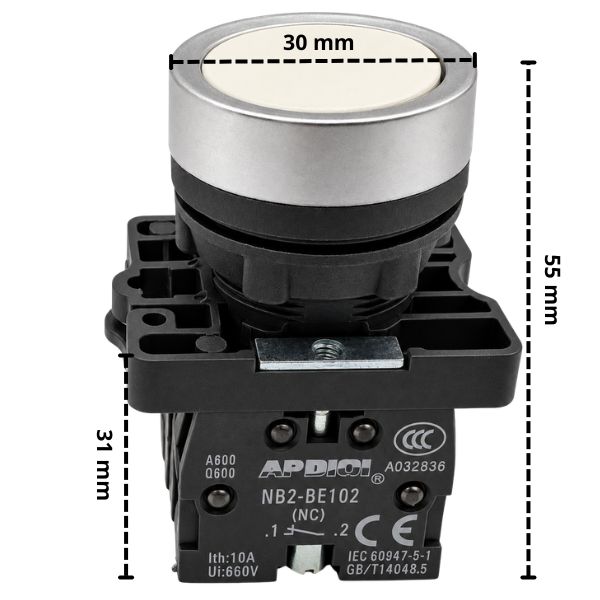

Pictured is a white lift push button with a diameter of 30 mm and an overall height of 55 mm.
