4t. sprocket complete (H3 from 06.2016, Comfort)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-141
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

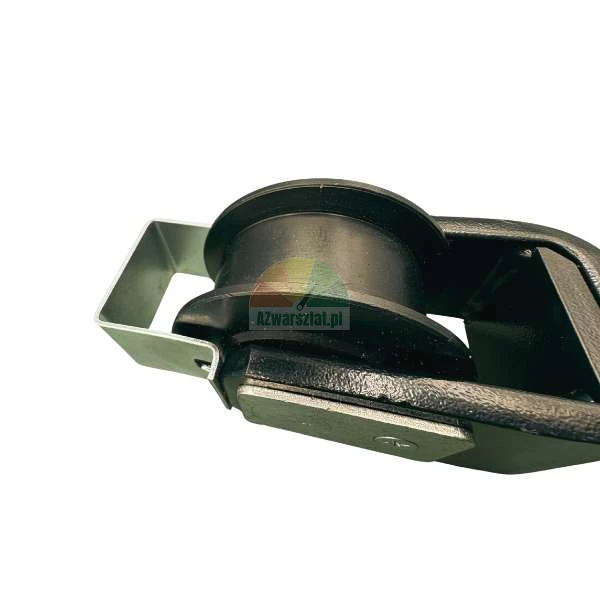

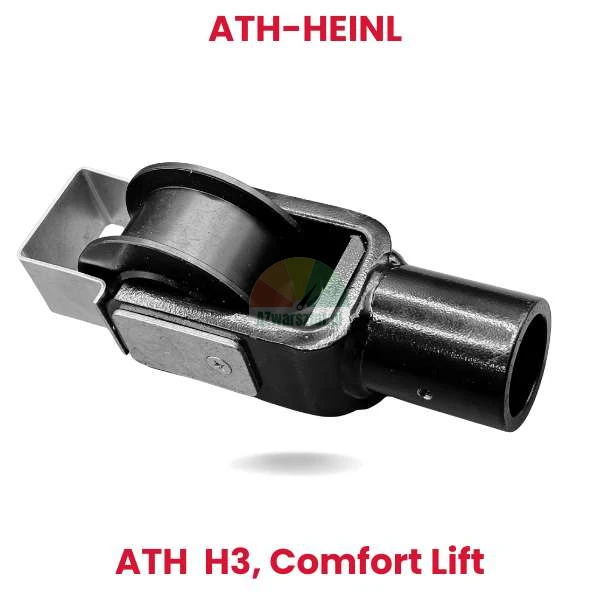

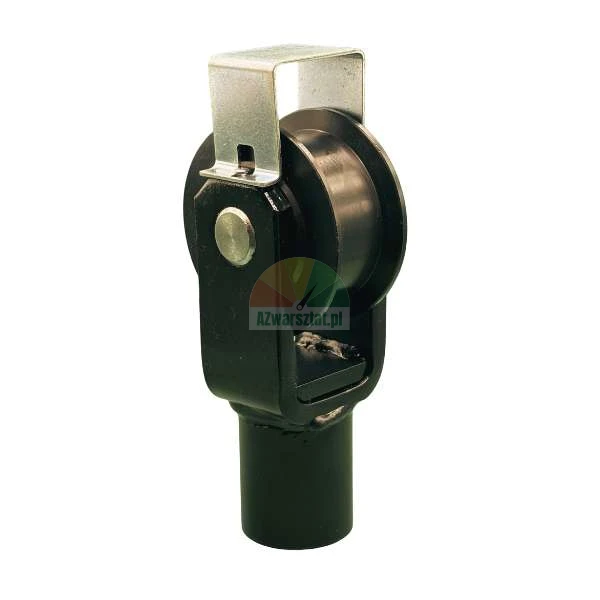

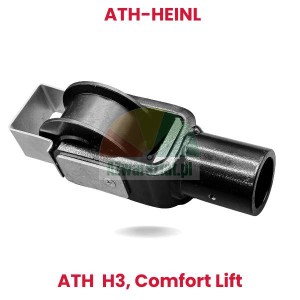

4T Chain Wheel Complete for ATH-Heinl H3 and ATH-Comfort lifts
Original 4T chain wheel complete with handle - a professional drive system component for ATH-Heinl type H3 double column lifts (from June 2016) and ATH-Comfort Lifts. A reliable component for smooth and safe lifting of vehicles in your workshop.
Application
The sprocket is a key component of the drive system of twin-column lifts. It acts as the transmission of the rotary motion in the lifting and lowering mechanism of the platform, ensuring reliable operation for years of use. With a diameter of 39 mm and a capacity of 4 tonnes, it is ideal for garages servicing passenger and commercial vehicles.
Compatibility
Original part for jacks:
- ATH-Heinl H3 (from 06.2016)
- ATH-Comfort Lifts
Suitable for servicing:
- Passenger cars
- Off-road vehicles
- Vans
Product specifications
Capacity: 4 tonnes
Diameter: 39 mm
Kit contents: Sprocket + handle
Type: Genuine part
Application: Double column elevators
Product benefits
✓ Original part - guaranteed compatibility and reliability
✓ Made of high quality steel - wear and corrosion resistant
✓ Precise geometry - ensures smooth operation of the chain system
✓ Complete set - sprocket with bracket ready for installation
✓ Easy replacement - rapid installation without having to dismantle the entire system
✓ Capacity of 4 t - safe handling for most workshop vehicles
Why choose this product?
If your ATH-Heinl H3 or ATH-Comfort jack requires a sprocket replacement, this product is the ideal and proven solution. As an original replacement part, it guarantees full compatibility and safe handling. Made from high-quality steel, it ensures reliable operation and a long service life. Precisely manufactured teeth guarantee smooth transmission and safe operation of vehicles in your workshop.
An investment in original parts is an investment in the safety, efficiency and reliability of your workshop!
Installation and maintenance
Changing a sprocket is a simple and quick process. Thanks to the complete set with bracket, installation requires no additional components. Regular inspection and maintenance of the sprocket system will extend the life of the lift and ensure safe operation for many years.
Product safety
Responsible person in the EU
ATH-Heinl GmbH & Co. KG
Gewerbepark 9
92278 Illschwang, Germany
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
