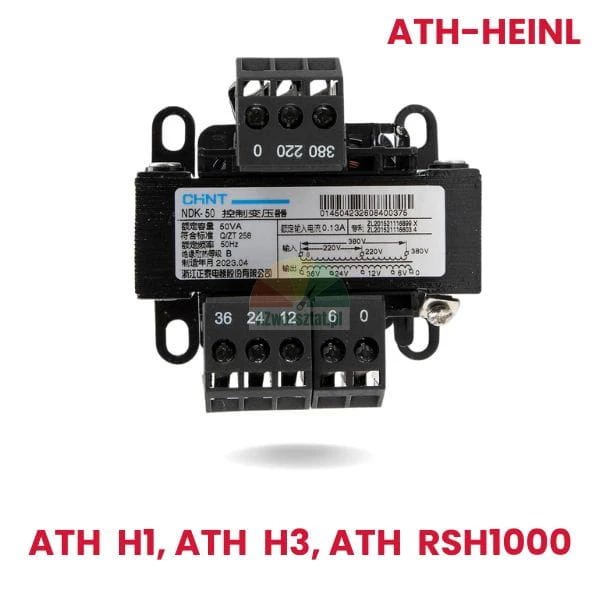

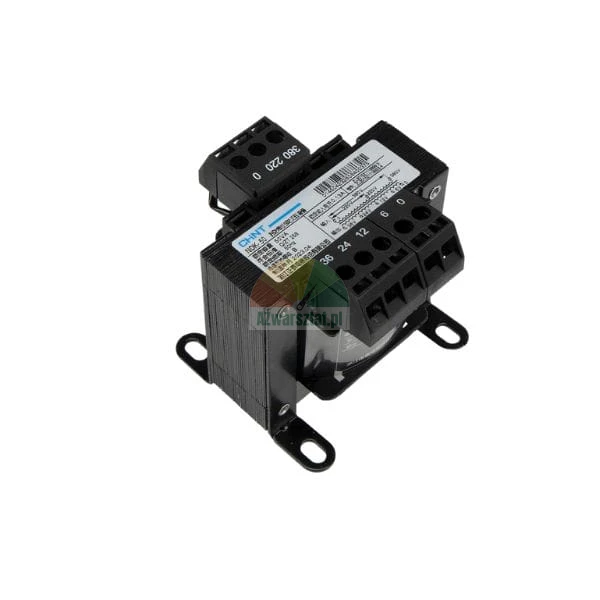

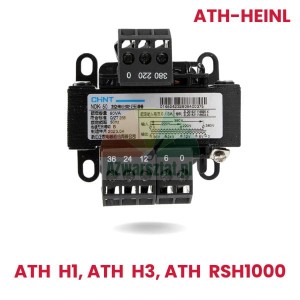

ATH-Heinl replacement: lift transformer (24V) H1, H3, RSH1000

The high-quality 24V transformer is a reliable replacement for ATH-Heinl brand car jacks, compatible with models H1, H3 and RSH1000. It ensures stable power supply and safe operation of the equipment in daily workshop use.

The product is made of durable materials that meet high quality standards. Thanks to its robust construction and easy installation, the transformer is ideal as a quick and effective solution in the event of failure of the original component.

Article number: P-TRAN-0001 - replacement compatible with original ATH-Heinl parts. Also known by the designation from the assembly drawing: TC.

Application - Lift models

Type H1

Suitable for linkages with plastic control box from approx. 2007-2010 (serial numbers e.g. 219XXX, 218XXX, 212XXX etc.).

Models:

ATH 2.28H
ATH 2.32H
ATH 2.38H
ATH 2.40H
ATH 2.32/380 HL
ATH 2.42/380 HL
ATH 2.32/450 HL
ATH 2.42/450 HL

Photo of the H1 control box:
Click here

Example of H1 nameplate:
Click here

Type H3

Models:

ATH 2.28H3, 2.30H3, 2.32H3, 2.35H3, 2.40H3
ATH 2.28HL3, 2.30HL3, 2.32HL3, 2.35HL3, 2.40HL3
ATH 2.28HX3, 2.30HX3, 2.32HX3, 2.35HX3, 2.40HX3

Example of an H3 nameplate:
Click here

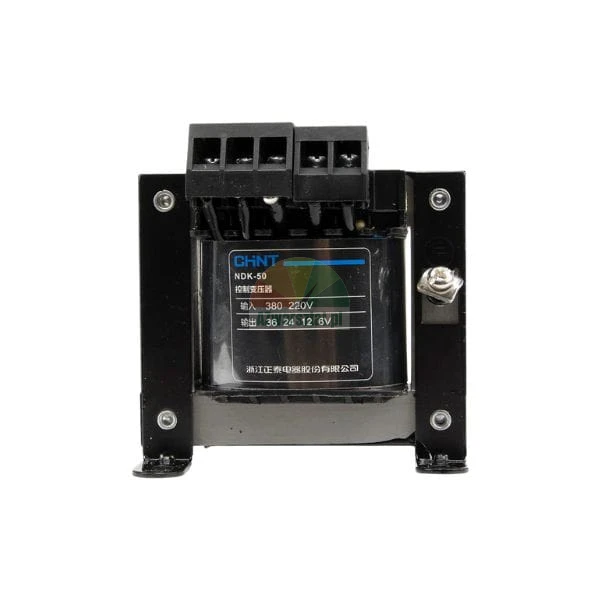

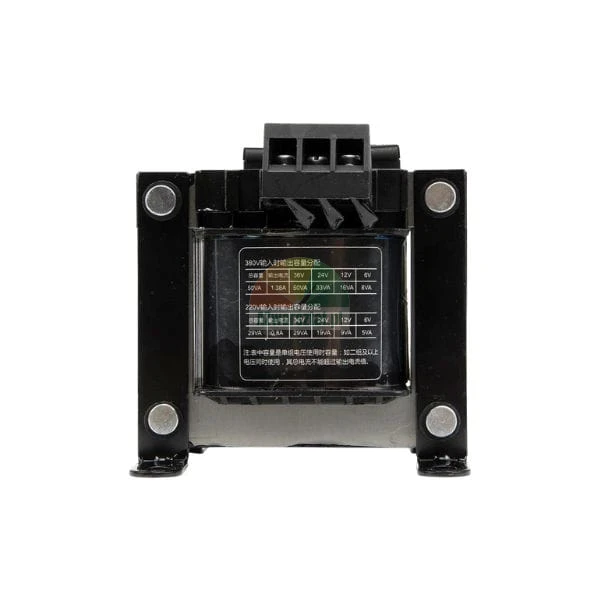

Technical specifications

Input voltage: 220V / 380V
Output voltage: 24V
Power: 50VA
Frequency: 50Hz
Type: NDK-50
Manufacturer: CHINT

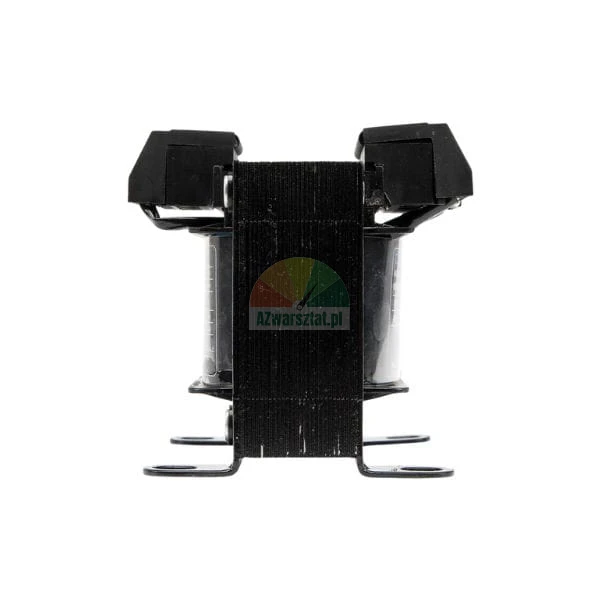

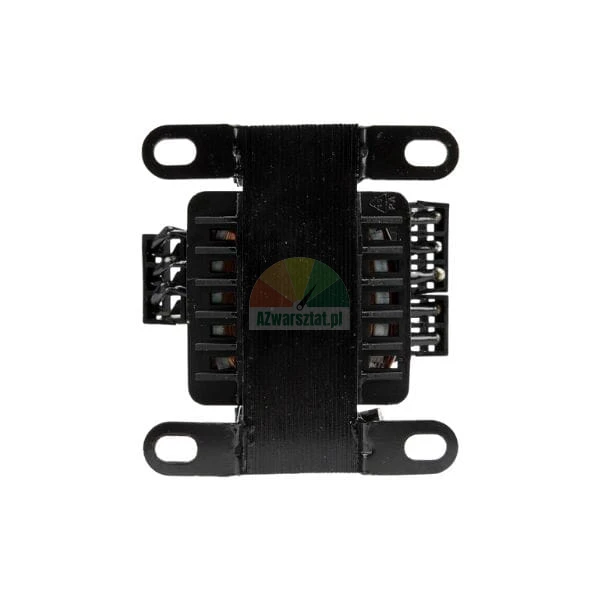

The transformer has a robust housing with mounting holes for easy installation in place of the original ATH part.

Dimensions (based on photo):

Transformator 24V do podnośników ATH-Heinl

Width (with mounting brackets): approx. 90 mm
Height: approx. 70 mm
Depth: approx. 60 mm

Application: ATH-Heinl vehicle jacks, wheel fitters, wheel balancers.

Ideal for workshops looking for a proven and durable replacement for a 24V transformer. Ready-to-install product, ensures quick return to work without unnecessary downtime.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Importer

LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ

Osiedle Mieszka I-go 4/46

26-340 Drzewica, Poland

+48 781 455 169 info@1688poland.com
