ATH-Heinl replacement: Actuator gasket H3, Comfort Lift
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-110
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

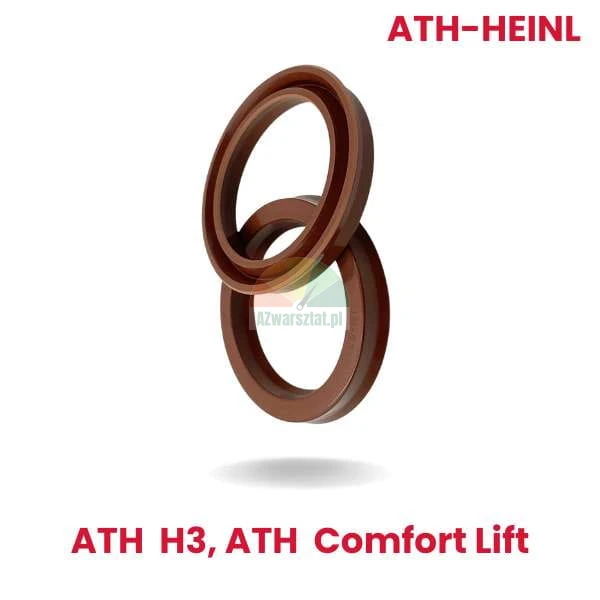

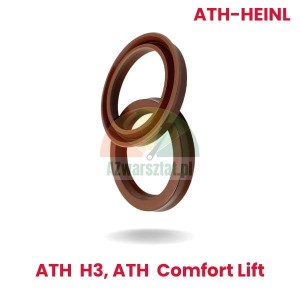

Cylinder Seal - Replacement for ATH-Heinl H3 and Comfort Lift
High-quality replacement hydraulic cylinder seal designed for ATH-Heinl H3 and Comfort Lift series two-post vehicle lifts (until 2021). The product has been designed for maximum sealing performance, durability and resistance to the intensive working conditions in garages and vehicle service workshops.
The seal is made of oil- and abrasion-resistant technical rubber. It ensures a long service life of the cylinder and effective protection against hydraulic leaks. The ideal alternative to original ATH-Heinl parts - fully compatible and easy to fit.
Application and compatibility:
The product fits the following ATH-Heinl vehicle lift models:
H3 series:
- ATH 2.28H3, 2.30H3, 2.32H3, 2.35H3, 2.40H3
- ATH 2.28HL3, 2.30HL3, 2.32HL3, 2.35HL3, 2.40HL3
- ATH 2.28HX3, 2.30HX3, 2.32HX3, 2.35HX3, 2.40HX3
Comfort Lift series (until 2021):
- ATH Comfort Lift 2.30, 2.30L, 2.30X
- ATH Comfort Lift 2.35, 2.35L, 2.35X
- ATH Comfort Lift 2.40, 2.40L, 2.40X
- MPPLA 2.35 (Orange)
How do I identify my lift model?
- H3 model: serial number starts with a letter (e.g. "H") - see example
- Comfort Lift model: serial number without a letter at the beginning - see example
Regular replacement of the cylinder seal is a key part of vehicle lift maintenance - it prevents leaks, improves operational safety and extends the service life of the unit.
Why choose this replacement?
- Precise fit for ATH-Heinl H3 and Comfort Lift cylinders
- High mechanical and chemical resistance
- Easy and quick installation
- Economical solution without compromising on quality

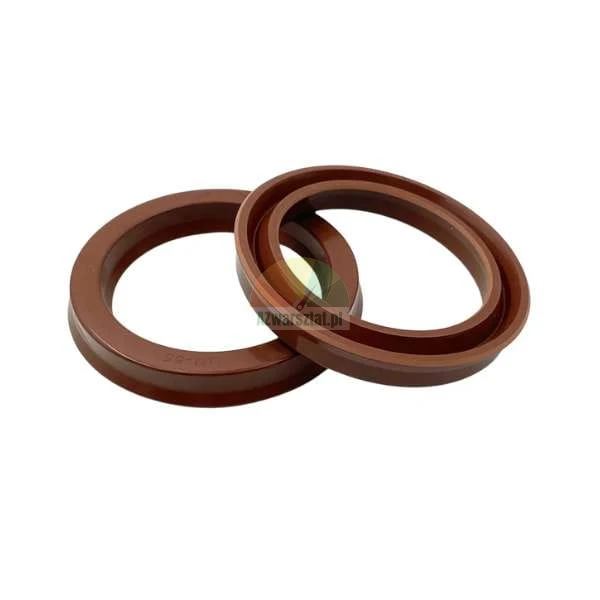

Product photo:
