Replacement ATH-Heinl: Rubber pad for H3, Comfort Lift
High-quality replacement rubber pad designed for ATH-Heinl vehicle lifts, including models from the H3, HL3, HX3 and Comfort Lift series (up to 2021). The product is made from a durable rubber compound that is resistant to abrasion, pressure and workshop conditions.
The H3 rubber pad effectively protects the vehicle chassis from mechanical damage during lifting. Its X-shaped surface provides better grip and stability, resulting in safer and more comfortable work in the workshop.
Why choose this replacement?
- Economical alternative to the original ATH-Heinl pads - without compromising on quality.
- Full compatibility with many lift models.
- Easy installation - fits the original studs thanks to two mounting holes.
- Protection and stability - protects the vehicle body and provides secure support for the vehicle.
Fits lift models:
- H3 series: ATH 2.28H3, 2.30H3, 2.32H3, 2.35H3, 2.40H3
- HL3 series: ATH 2.28HL3, 2.30HL3, 2.32HL3, 2.35HL3, 2.40HL3
- HX3 series: ATH 2.28HX3, 2.30HX3, 2.32HX3, 2.35HX3, 2.40HX3
- Comfort Lift (until 2021): ATH Comfort Lift 2.30, 2.30L, 2.30X, 2.35, 2.35L, 2.35X, 2.40, 2.40L, 2.40X
- MPPLA 2.35 (Orange)
How do I identify the correct model?
Check the rating plate on your lift:
- Rating plate H3 - contains a letter in the serial number (e.g. 2.30H3)
- Rating plate Comfort (up to 2021) - without a letter in the serial number (e.g. 2.30)
Technical specifications:
- Outer diameter: approx. 120 mm
- Thickness: approx. 20 mm
- Material: high-quality, pressure- and abrasion-resistant rubber
- Mounting: 2 mounting holes - fits original ATH lift studs
The ideal choice for workshops that value reliability, safety and durability in their daily work with vehicle lifts.
Product photo:

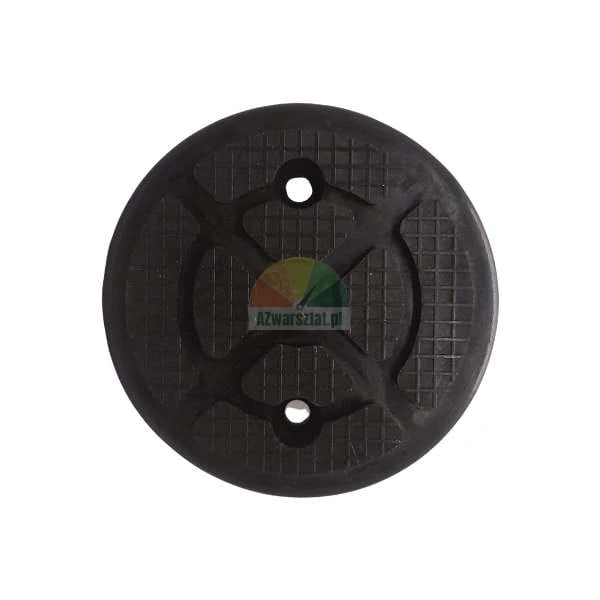

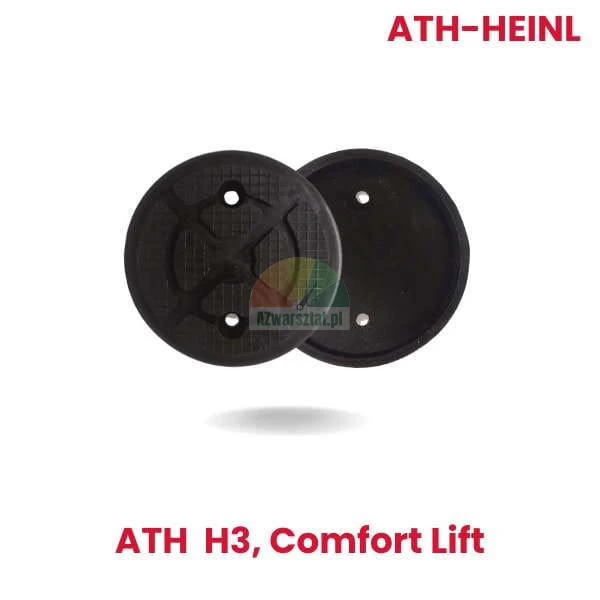

Pictured is a rubber pad with a diameter of approximately 120 mm and a thickness of 20 mm, with a visible X pattern on the surface and two mounting holes:
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
