Replacement 24V DC time relay for ATH-Heinl H1, H3, H3(2.50) lifts

High-quality 24V DC time relay replacement for ATH-Heinl workshop machines such as car jacks, fitters and balancers. The product is 100% compatible with the original relays used in the H1, H3 and H3(2.50) series models.

Key product features:

Power supply: 24 V DC
Type: time relay
Rotary setting knob - precise adjustment of operating time
Standard 8-pin connector
DIN rail mounting - quick and easy installation
High durability and resistance to workshop conditions
Dimensions: height approx. 60 mm, width approx. 30 mm, depth approx. 70 mm (with pins)

The product is made of high-quality materials, ensuring long service life and trouble-free operation even in busy workshop environments.

Application and compatibility:

Relay dedicated to ATH-Heinl jacks of the series:

H1 - models with plastic control box (production years approx. 2007-2010, serial numbers: 219XXX, 218XXX, 212XXX):
- 2.28H, 2.32H, 2.38H, 2.40H
- ATH 2.32/380 HL, 2.42/380 HL
- ATH 2.32/450 HL, 2.42/450 HL
H3 - including model H3(2.50):
- ATH 2.28H3, 2.30H3, 2.32H3, 2.35H3, 2.40H3
- ATH 2.28HL3, 2.30HL3, 2.32HL3, 2.35HL3, 2.40HL3
- ATH 2.28HX3, 2.30HX3, 2.32HX3, 2.35HX3, 2.40HX3

Perfect fit - identical dimensions and pin spacing to the original ATH-Heinl relay. Installation requires no modifications to the installation.

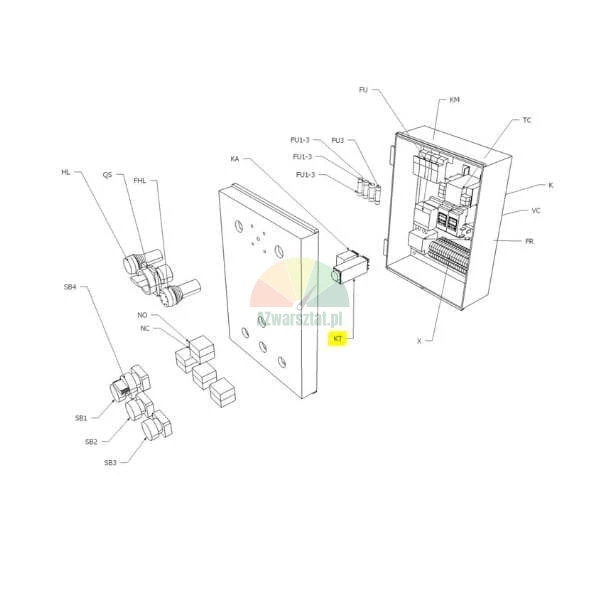

To ensure that your lifter is an H1 or H3 series model, check the nameplate or the appearance of the control box:

Why choose this replacement?

Fully functional replacement for an original ATH-Heinl part
Economy without compromise - high quality at an attractive price
Quick availability - product available immediately
Ideal for workshops that need reliable spare parts

Rely on a proven replacement for the 24V DC time relay - guaranteed reliability and compatibility with your ATH-Heinl lifter.

Product photo:

Przekaźnik czasowy 24V DC do ATH-Heinl

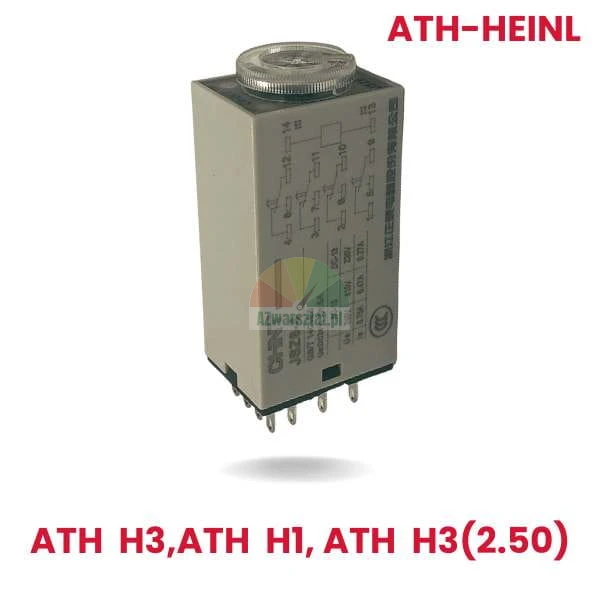

Pictured: 24V DC time relay - dimensions: height approx. 60 mm, width approx. 30 mm, depth approx. 70 mm (with pins).
