ATH-Heinl replacement: H3 carrier base
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-106
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
ATH-Heinl Replacement: H3 Support Pad
High-quality replacement support pad for ATH-Heinl vehicle lifts of the H3 series. Made of robust steel and wear-resistant rubber, it ensures safe and stable support of the vehicle even under intensive use. The product is characterised by its durability, precision workmanship and full compatibility with original ATH systems.
Compatible with ATH-Heinl lift models:
ATH 2.28H3, ATH 2.30H3, ATH 2.32H3, ATH 2.35H3, ATH 2.40H3
ATH 2.28HL3, ATH 2.30HL3, ATH 2.32HL3, ATH 2.35HL3, ATH 2.40HL3
ATH 2.28HX3, ATH 2.30HX3, ATH 2.32HX3, ATH 2.35HX3, ATH 2.40HX3
Product highlights:
- Durable: Made of high-quality steel and abrasion-resistant rubber.
- Precise fit: Fits perfectly into the lift socket – true to the original.
- Easy to fit: Simple installation with no modifications required.
- Safety: Stable support of the vehicle even under heavy loads.
- Durability: Long service life even with intensive use in workshop conditions.
The product is ideal for professional workshops and vehicle repair shops looking for a reliable and economical alternative to original ATH-Heinl parts.
Support pad dimensions:
- Rubber base diameter: approx. 120 mm
- Overall height: approx. 90 mm
- Mounting pin diameter: approx. 38 mm
- Mounting thread: compatible with original ATH H3 model
Note: Before purchasing, check the model designation on the lift nameplate – usually found on the column of the unit.
Example of model nameplate for model H3: See photo
Application:
Support pad designed for H3 series two-post hydraulic vehicle lifts. It proves its worth in everyday workshop use, where reliability and safety in vehicle servicing are important.
Are you looking for a durable and proven replacement? This product is the perfect combination of quality, safety and an attractive price.
Product photo:

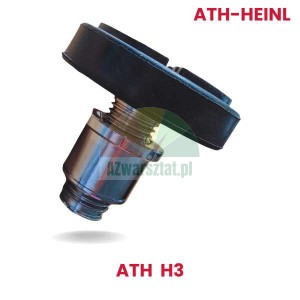

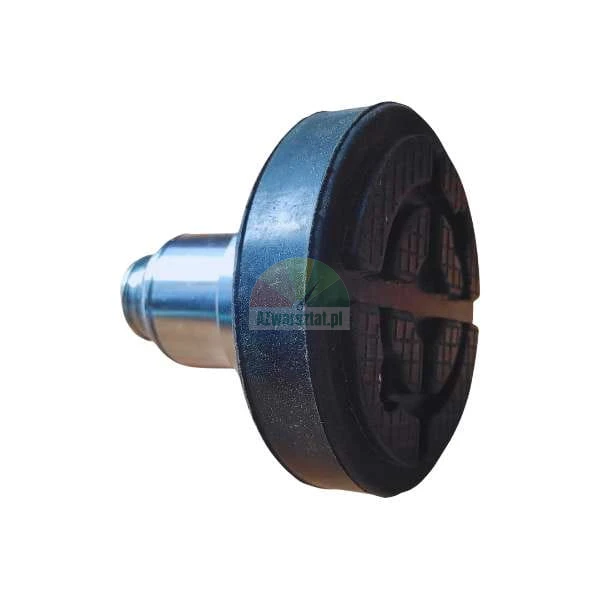

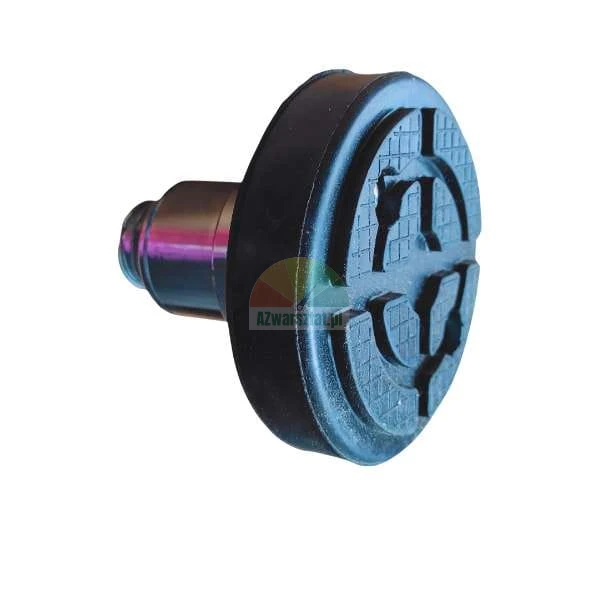

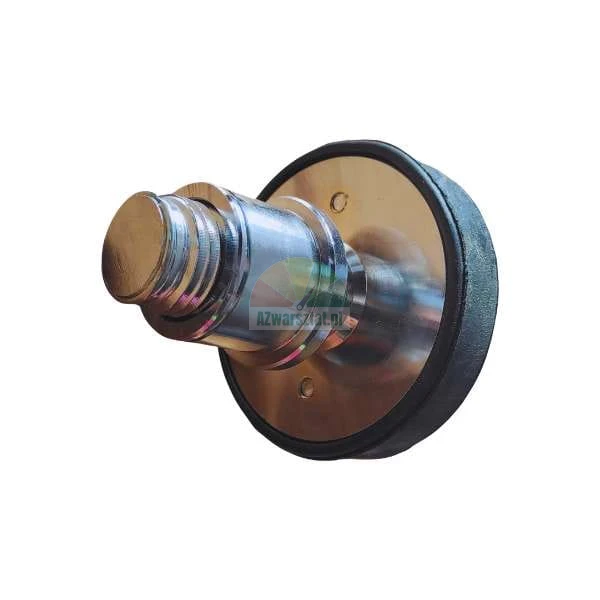

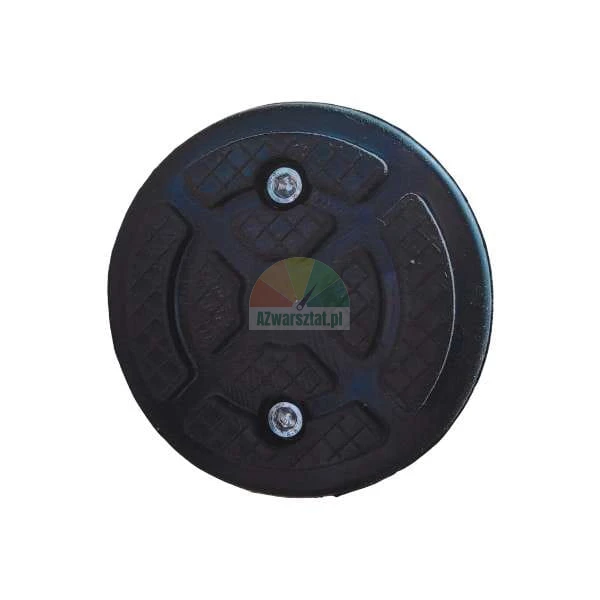

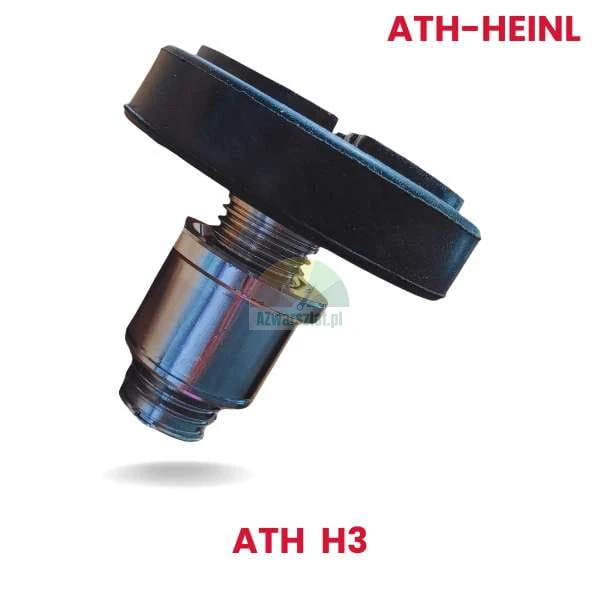

Photo description: Support pad with a rubber diameter of approx. 120 mm, an overall height of approx. 90 mm and a mounting pin with a diameter of approx. 38 mm.
