Aristo synchronisation cable LM240, LA240 / ATH-Pure Lift 2.40M, 2.40A

Secure payment

30 days to return

Fast shipping

€80.84

Shipping costs are not included in the price.

Quantity

pc.

Lift lowering lever TYPE A

€30.32

Add In bundle

ATH-Heinl replacement: lowering valve for Aristo Lifts, Pure Lift

€44.42

Add In bundle

Total for additional products: 0.00 zł

How does it work?

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

Aristo LM240, LA240 / ATH-Pure Lift 2.40M, 2.40A synchronisation cable

The synchronisation cable for Aristo LM240, LA240 and ATH-Pure Lift 2.40M, 2.40A car lifts is a high-quality replacement for the original ATH-Heinl cable (No. HAS2813). Made of multi-strand galvanised steel, it guarantees reliable synchronisation of the columns on twin-column lifts, resistance to corrosion, stretching and intensive use.

The product has the necessary certificates (Machinery Directive DE 2006/42/EC, PN-EN-ISO 12100-1-2012), which ensures compliance with technical and safety requirements in Poland and the EU. The rope is ideally suited to the listed lift models and allows it to pass the UDT inspection without any problems.

A key safety feature: Regular inspection and replacement of the synchronisation rope minimises the risk of failure, ensures even lifting and lowering of the vehicle and protects against damage to the equipment.

Compatibility: Aristo LM240, LA240, ATH-Pure Lift 2.40M, 2.40A
Replacement: original ATH-Heinl HAS2813 cable
Material: high-strength multi-strand galvanised steel
Resistance: to corrosion, tension and wear
Certifications: DE 2006/42/WE, PN-EN-ISO 12100-1-2012
Easy installation: fits as a replacement for original ropes

Rope dimensions:
Length: 7.98 m

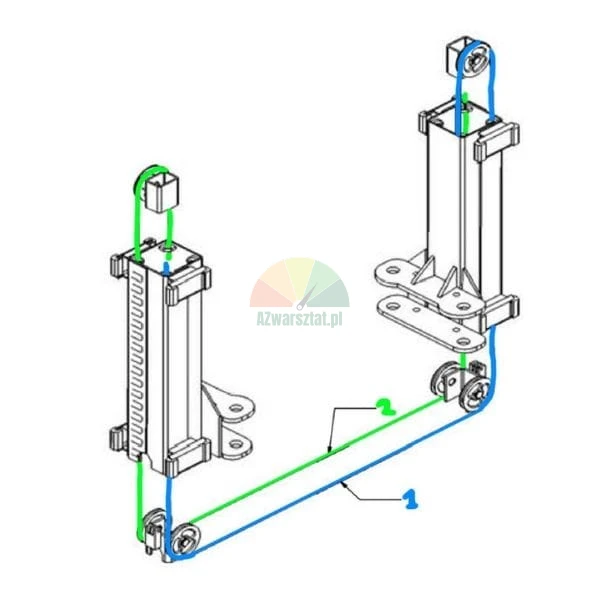

Rope designed to be installed according to the diagram shown in the illustration - ensures correct synchronisation of the lift columns.

Lina synchronizacyjna Aristo LM240, LA240 / ATH-Pure Lift 2.40M, 2.40A – długość 7,98 m

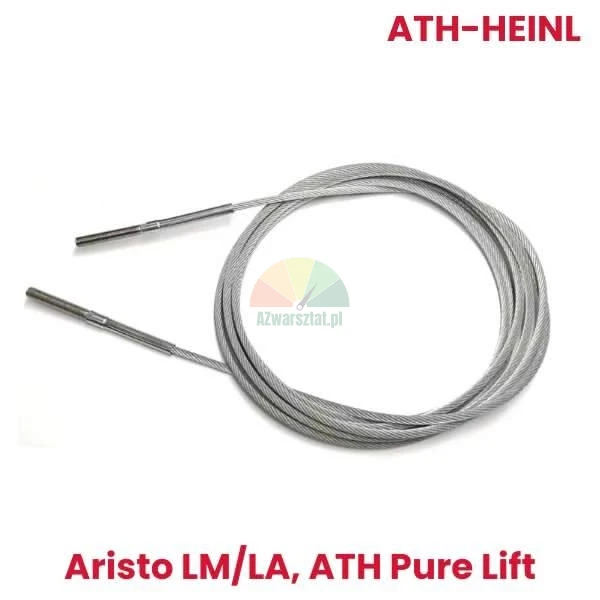

Picture: 7.98 m long synchronisation rope - actual view of product, rope ends and stranding.

Application and practical value

The synchronisation rope is dedicated to professional garages, tyre repair shops and vehicle service stations where ATH-Pure Lift and Aristo LM/LA two-column lifts are used. Its application ensures precise synchronisation of the columns' movement, which translates into operator safety and comfort, and minimises the risk of vehicle damage.

Key product benefits

High durability and resistance to intensive use
Precision machined - a perfect fit for ATH-Heinl and Aristo lifts
Safe use proven by certification
Can be used as a replacement for the original HAS2813 cable
Hassle-free installation and long service life
Product tested by professionals

Order today and ensure the reliability and safety of your lift. If you have any questions about compatibility or installation, please contact our customer service.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
